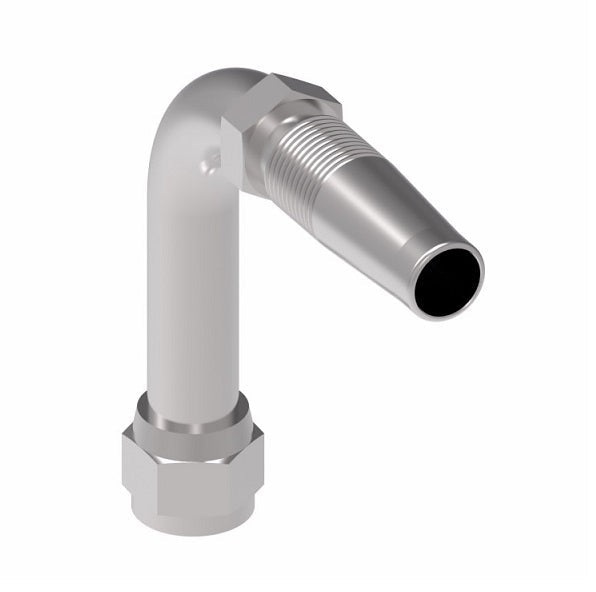

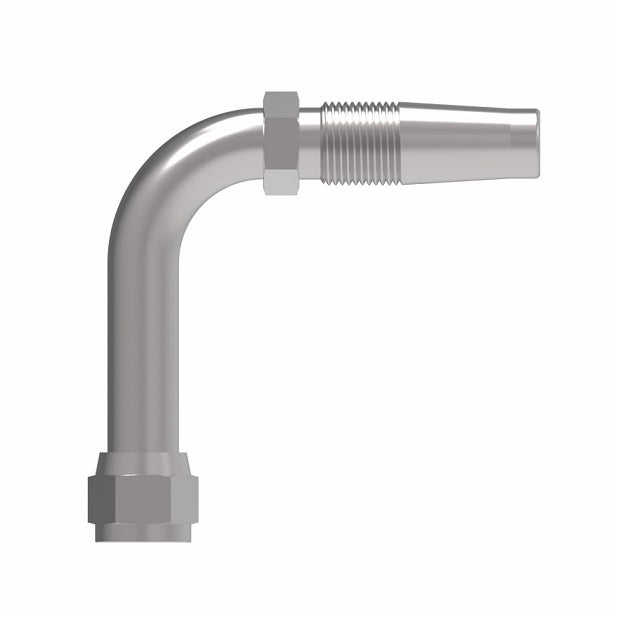

185263-6S Weatherhead by Danfoss | Female 37° JIC Swivel Long Drop 90° Elbow Field Attachable Fitting for 1 & 2 Wire Braided Hose | Nipple Assembly | -06 Female 37° JIC Swivel x -06 Reusable Hose End | Steel

185263-6S Weatherhead by Danfoss | Female 37° JIC Swivel Long Drop 90° Elbow Field Attachable Fitting for 1 & 2 Wire Braided Hose | Nipple Assembly | -06 Female 37° JIC Swivel x -06 Reusable Hose End | Steel | Pack of 10

Minimum Order Quantity: 10 Units

$590.60 - $590.60

$590.60

$590.60 - $590.60

$590.60

Weatherhead by Danfoss
Field Attachable Fitting for 1 Wire Braided Hose - 1R series - Female 37° JIC Swivel Long Drop - 90° Elbow

Specifications for Variant SKU: 185263-6S Danfoss \| 10 \|
Shape (Orientation):	90 Degree
Ends Configuration:	3/8in Female JIC, 3/8in Reusable Hose End
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	H180 Series \| H280 Series

Features:
Non-skive, two-piece crimp Fitting. Clear silver hexavalent chromium-free plating. Carbon steel material.


	Component Part Numbers
Complete Fitting Part Number	Nipple Assembly Part Number Steel	Reusable Socket Part Number	Thread Size	Hose Size	A	D	E&Oslash	H
1RA4FJC4	185263-4S	1RA4	7/16-20	-04	2.26"	1.22"	0.17"	1.80"
1RA6FJC6	185263-6S	1RA6	9/16-18	-06	2.65"	1.52"	0.31"	2.18"
-	185263-8S	1RA8	3/4-16	-08	3.13"	1.66"	0.39"	2.43"
1RA12FJC12	185263-12S	1RA12	1-1/16-12	-12	4.05"	2.45"	0.61"	3.73"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
