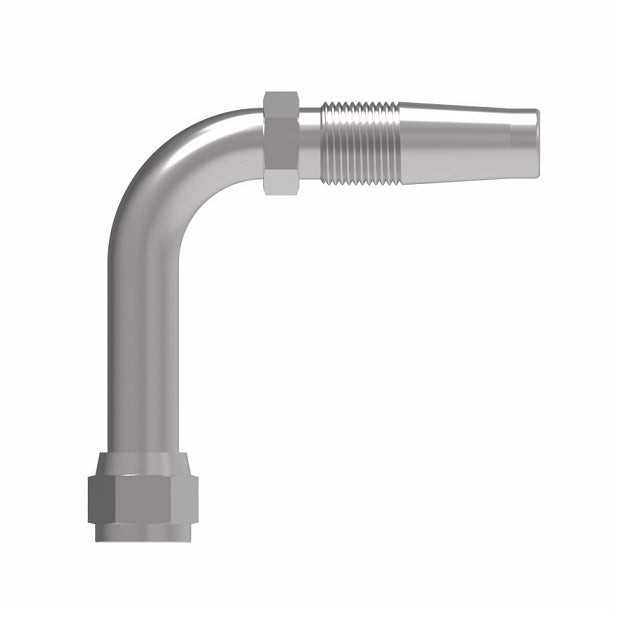

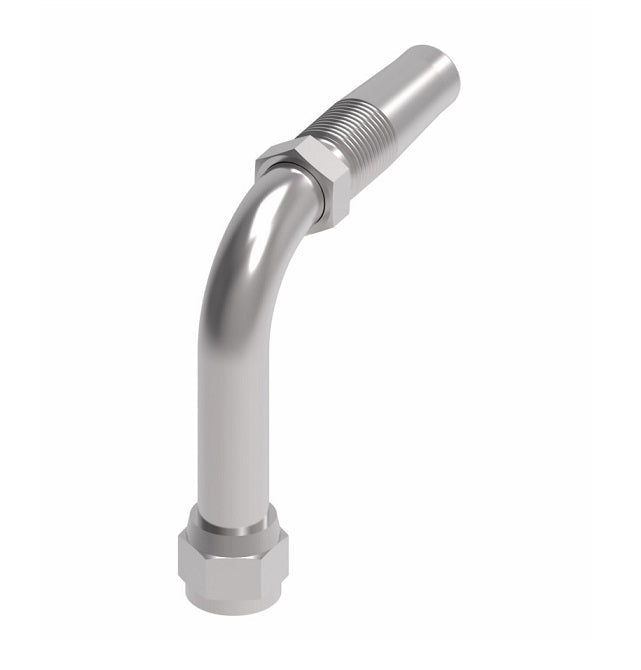

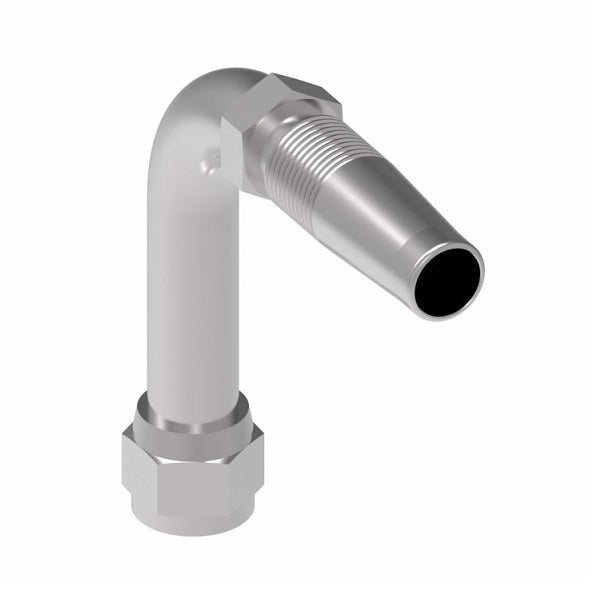

185263-8S Weatherhead by Danfoss | Female 37° JIC Swivel Long Drop 90° Elbow Field Attachable Fitting for 1 & 2 Wire Braided Hose | Nipple Assembly | -08 Female 37° JIC Swivel x -08 Reusable Hose End | Steel

185263-8S Weatherhead by Danfoss | Female 37° JIC Swivel Long Drop 90° Elbow Field Attachable Fitting for 1 & 2 Wire Braided Hose | Nipple Assembly | -08 Female 37° JIC Swivel x -08 Reusable Hose End | Steel

Name: 185263-8S Weatherhead by Danfoss | Female 37° JIC Swivel Long Drop 90° Elbow Field Attachable Fitting for 1 & 2 Wire Braided Hose | Nipple Assembly | -08 Female 37° JIC Swivel x -08 Reusable Hose End | Steel
Brand: Danfoss/Eaton
SKU: 185263-8S Danfoss
Price: 58.29 USD
Availability: InStock

$58.29 - $58.29

$58.29

$58.29 - $58.29

$58.29

Weatherhead by Danfoss
Field Attachable Fitting for 1 Wire Braided Hose - 1R series - Female 37° JIC Swivel Long Drop - 90° Elbow

Quantity

Specifications for Variant SKU: 185263-8S Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	1/2in Female JIC, 1/2in Reusable Hose End
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	H180 Series \| H280 Series

Features:
Non-skive, two-piece crimp Fitting. Clear silver hexavalent chromium-free plating. Carbon steel material.


	Component Part Numbers
Complete Fitting Part Number	Nipple Assembly Part Number Steel	Reusable Socket Part Number	Thread Size	Hose Size	A	D	E&Oslash	H
1RA4FJC4	185263-4S	1RA4	7/16-20	-04	2.26"	1.22"	0.17"	1.80"
1RA6FJC6	185263-6S	1RA6	9/16-18	-06	2.65"	1.52"	0.31"	2.18"
-	185263-8S	1RA8	3/4-16	-08	3.13"	1.66"	0.39"	2.43"
1RA12FJC12	185263-12S	1RA12	1-1/16-12	-12	4.05"	2.45"	0.61"	3.73"
