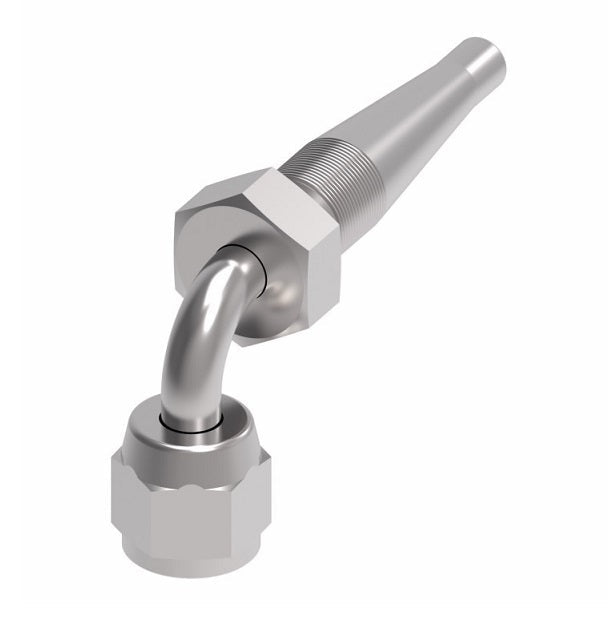

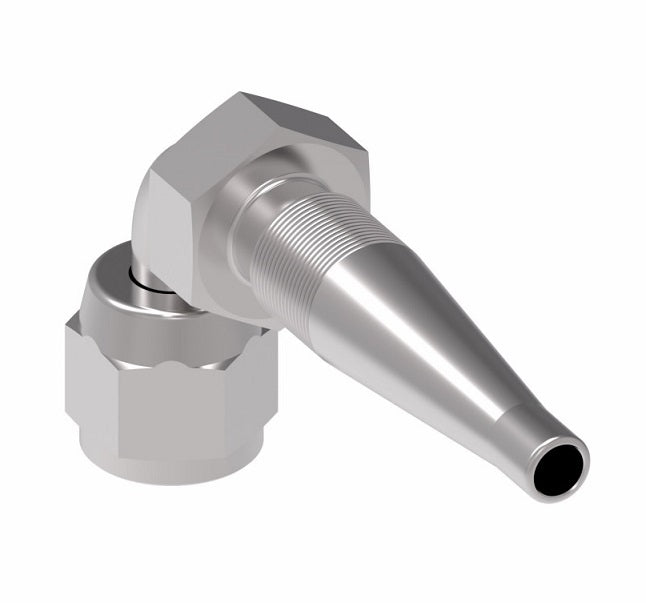

185264-8S Weatherhead by Danfoss | Female 37° JIC Swivel Short Drop 90° Elbow Field Attachable Fitting for 1 & 2 Wire Braided Hose | Nipple Assembly | -08 Female 37° JIC Swivel x -08 Reusable Hose End | Steel

185264-8S Weatherhead by Danfoss | Female 37° JIC Swivel Short Drop 90° Elbow Field Attachable Fitting for 1 & 2 Wire Braided Hose | Nipple Assembly | -08 Female 37° JIC Swivel x -08 Reusable Hose End | Steel | Pack of 10

Minimum Order Quantity: 10 Units

$501.40 - $501.40

$501.40

$501.40 - $501.40

$501.40

Weatherhead by Danfoss
Field Attachable Fitting for 1 Wire Braided Hose - 1R series - Female 37° JIC Swivel Short Drop - 90° Elbow

Specifications for Variant SKU: 185264-8S Danfoss \| 10 \|
Shape (Orientation):	90 Degree
Ends Configuration:	1/2in Female JIC, 1/2in Reusable Hose End
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	H180 Series \| H280 Series

Features:
Non-skive, two-piece crimp Fitting. Clear silver hexavalent chromium-free plating. Carbon steel material.


	Component Part Numbers
Complete Fitting Part Number	Nipple Assembly Part Number Steel	Reusable Socket Part Number	Thread Size	Hose Size	A	D	E&Oslash	H
1RA4FJB4	185264-4S	1RA4	7/16-20	-04	2.26"	1.22"	0.17"	0.68"
1RA6FJB6	185264-6S	1RA6	9/16-18	-06	2.65"	1.52"	0.31"	0.85"
1RA8FJB8	185264-8S	1RA8	3/4-16	-08	3.00"	1.54"	0.39"	1.09"
-	185264-10-8S	-	-	-08	-	-	-
1RA12FJB12	185264-12S	1RA12	1-1/16-12	-12	4.05"	2.45"	0.61"	1.82"
-	185264-16S	1RA16	1-5/16-12	-16	4.69"	2.56"	0.82"	2.39"
