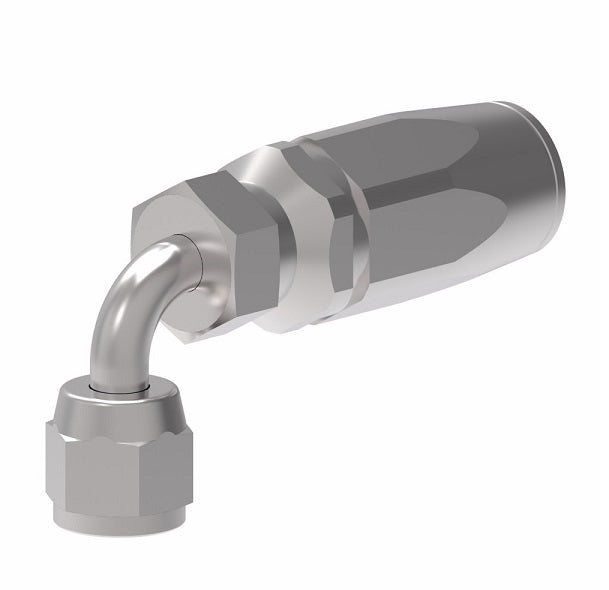

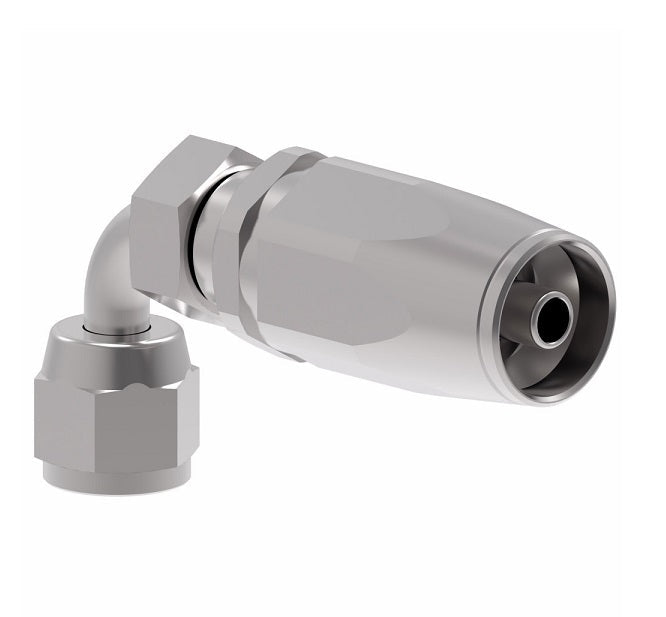

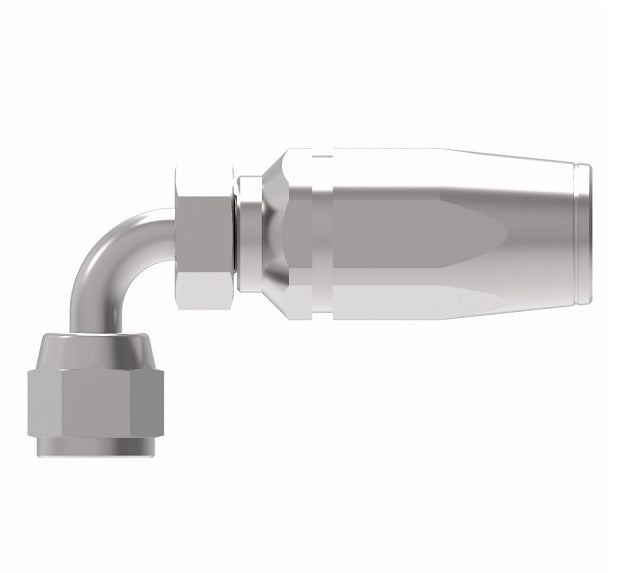

1RA4FJB4 Weatherhead by Danfoss | Female 37° JIC Swivel Short Drop 90° Elbow Field Attachable Fitting for 1 Wire Braided Hose | 1R Series | Complete Fitting | -04 Female 37° JIC Swivel x -04 Reusable Hose End | Steel
1RA4FJB4 Weatherhead by Danfoss | Female 37° JIC Swivel Short Drop 90° Elbow Field Attachable Fitting for 1 Wire Braided Hose | 1R Series | Complete Fitting | -04 Female 37° JIC Swivel x -04 Reusable Hose End | Steel
1RA4FJB4 Weatherhead by Danfoss | Female 37° JIC Swivel Short Drop 90° Elbow Field Attachable Fitting for 1 Wire Braided Hose | 1R Series | Complete Fitting | -04 Female 37° JIC Swivel x -04 Reusable Hose End | Steel
1RA4FJB4 Weatherhead by Danfoss | Female 37° JIC Swivel Short Drop 90° Elbow Field Attachable Fitting for 1 Wire Braided Hose | 1R Series | Complete Fitting | -04 Female 37° JIC Swivel x -04 Reusable Hose End | Steel

1RA4FJB4 Weatherhead by Danfoss | Female 37° JIC Swivel Short Drop 90° Elbow Field Attachable Fitting for 1 Wire Braided Hose | 1R Series | Complete Fitting | -04 Female 37° JIC Swivel x -04 Reusable Hose End | Steel

$49.84 - $49.84
$49.84
$49.84 - $49.84
$49.84

Weatherhead by Danfoss
Field Attachable Fitting for 1 Wire Braided Hose - 1R series - Female 37° JIC Swivel Short Drop - 90° Elbow
Specifications for Variant SKU: 1RA4FJB4 Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 1/4in Female JIC, 1/4in Reusable Hose End
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: H180 Series
Features:
  • Non-skive, two-piece crimp Fitting.
  • Clear silver hexavalent chromium-free plating.
  • Carbon steel material.
Component Part Numbers
Complete Fitting
Part Number 		Nipple Assembly
Part Number
Steel 		Reusable Socket
Part Number 		Thread Size Hose Size A D E&Oslash H
1RA4FJB4 185264-4S 1RA4 7/16-20 -04 2.26" 1.22" 0.17" 0.68"
1RA6FJB6 185264-6S 1RA6 9/16-18 -06 2.65" 1.52" 0.31" 0.85"
1RA8FJB8 185264-8S 1RA8 3/4-16 -08 3.00" 1.54" 0.39" 1.09"
- 185264-10-8S - - -08 - - -
1RA12FJB12 185264-12S 1RA12 1-1/16-12 -12 4.05" 2.45" 0.61" 1.82"
- 185264-16S 1RA16 1-5/16-12 -16 4.69" 2.56" 0.82" 2.39"
