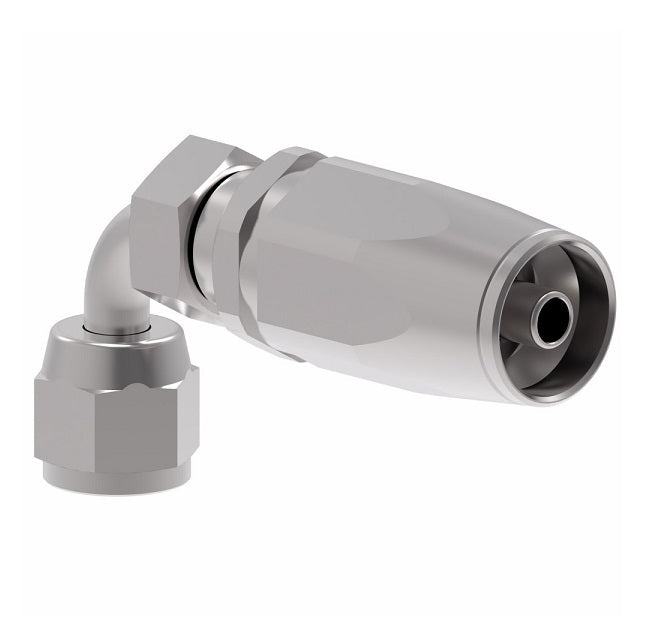

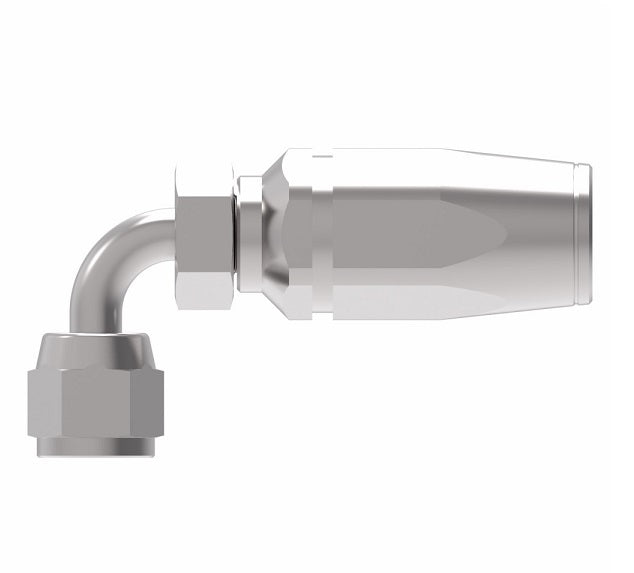

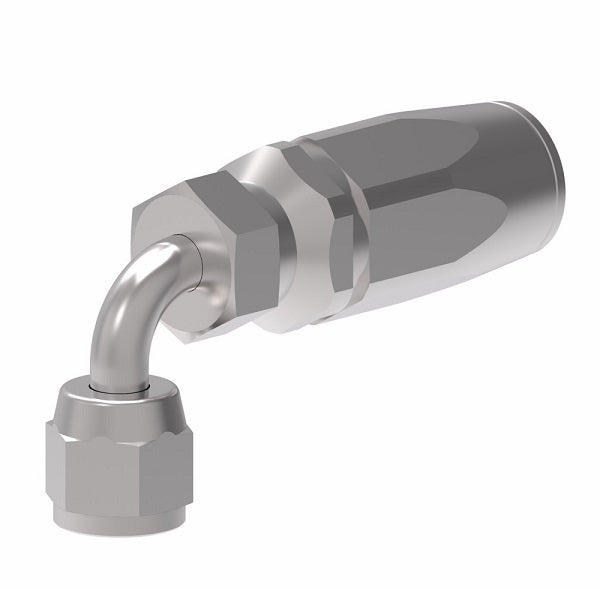

1RA12FJB12 Weatherhead by Danfoss | Female 37° JIC Swivel Short Drop 90° Elbow Field Attachable Fitting for 1 Wire Braided Hose | 1R Series | Complete Fitting | -12 Female 37° JIC Swivel x -12 Reusable Hose End | Steel

Original price $93.68 - Original price $93.68
Original price
$93.68
$93.68 - $93.68
Current price $93.68

Weatherhead by Danfoss
Field Attachable Fitting for 1 Wire Braided Hose - 1R series - Female 37° JIC Swivel Short Drop - 90° Elbow

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 1RA12FJB12 Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 3/4in Female JIC, 3/4in Reusable Hose End
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: H180 Series
Features:
  • Non-skive, two-piece crimp Fitting.
  • Clear silver hexavalent chromium-free plating.
  • Carbon steel material.
Component Part Numbers
Complete Fitting
Part Number
Nipple Assembly
Part Number
Steel
Reusable Socket
Part Number
Thread Size Hose Size A D E&Oslash H
1RA4FJB4 185264-4S 1RA4 7/16-20 -04 2.26" 1.22" 0.17" 0.68"
1RA6FJB6 185264-6S 1RA6 9/16-18 -06 2.65" 1.52" 0.31" 0.85"
1RA8FJB8 185264-8S 1RA8 3/4-16 -08 3.00" 1.54" 0.39" 1.09"
- 185264-10-8S - - -08 - - -
- 185264-10S - - -10 - - -
1RA12FJB12 185264-12S 1RA12 1-1/16-12 -12 4.05" 2.45" 0.61" 1.82"
1RA16FJB16 185264-16S 1RA16 1-5/16-12 -16 4.69" 2.56" 0.82" 2.39"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
