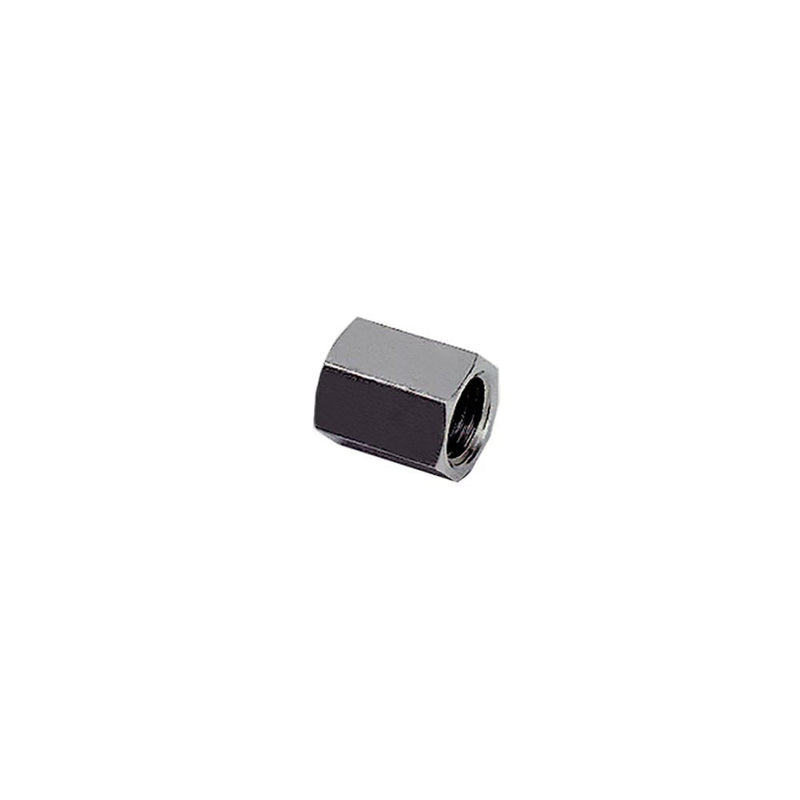

1862 17 10 by Parker | Legris Reducer Connector | 3/8" Female BSPP Thread x 1/8" Female BSPP Thread | 21 mm Length | 22 mm Hex | Straight | 316L Stainless Steel | Pack of 2

$85.22 - $85.22

$85.22

$111.79

$111.79 - $111.79

$111.79

by Parker Hannifin
Stainless Steel Adapters:1862 Reducer Connector, Female BSPP Thread

Package Quantity: 2 Units

Quantity

Specifications for Variant SKU: 1862 17 10 Parker \| 2 \|
Series:	1862 Series
Shape (Orientation):	Straight
Material(s):	316L Stainless Steel


Adapters and Manifolds:


Part Number	C1	C2	F	L	Kg
1862 13 10	1/4"	1/8"	17 mm	20.5 mm	.024 Kg
1862 17 10	3/8"	1/8"	22 mm	21 mm	.043 Kg
1862 17 13	3/8"	1/4"	22 mm	24.5 mm	.048 Kg
1862 21 13	1/2"	1/4"	27 mm	28.5 mm	.086 Kg
1862 21 17	1/2"	3/8"	27 mm	29 mm	.081 Kg
1862 27 21	3/4"	1/2"	32 mm	39.5 mm	.148 Kg
1862 34 27	1"	3/4"	41 mm	45 mm	.282 Kg
