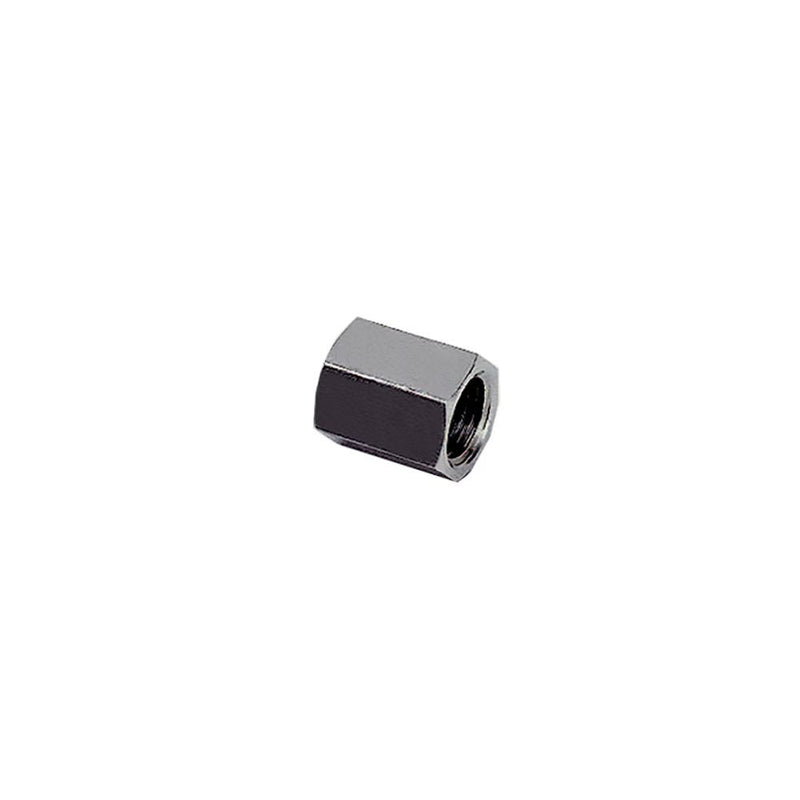

1862 17 13 by Parker | Legris Reducer Connector | 3/8" Female BSPP Thread x 1/4" Female BSPP Thread | 22 mm Length | 24.5 mm Hex | Straight | 316L Stainless Steel | Pack of 2

1862 17 13 by Parker | Legris Reducer Connector | 3/8" Female BSPP Thread x 1/4" Female BSPP Thread | 22 mm Length | 24.5 mm Hex | Straight | 316L Stainless Steel | Pack of 2

$98.99 - $98.99
$98.99
$129.87
$129.87 - $129.87
$129.87

by Parker Hannifin
Stainless Steel Adapters:1862 Reducer Connector, Female BSPP Thread

Package Quantity: 2 Units

Specifications for Variant SKU: 1862 17 13 Parker | 2 |
Series: 1862 Series
Shape (Orientation): Straight
Material(s): 316L Stainless Steel
Adapters and Manifolds:
Part Number C1 C2 F L Kg
1862 13 10 1/4" 1/8" 17 mm 20.5 mm .024 Kg
1862 17 10 3/8" 1/8" 22 mm 21 mm .043 Kg
1862 17 13 3/8" 1/4" 22 mm 24.5 mm .048 Kg
1862 21 13 1/2" 1/4" 27 mm 28.5 mm .086 Kg
1862 21 17 1/2" 3/8" 27 mm 29 mm .081 Kg
1862 27 21 3/4" 1/2" 32 mm 39.5 mm .148 Kg
1862 34 27 1" 3/4" 41 mm 45 mm .282 Kg
Parker Fluid System Connectors Division

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
