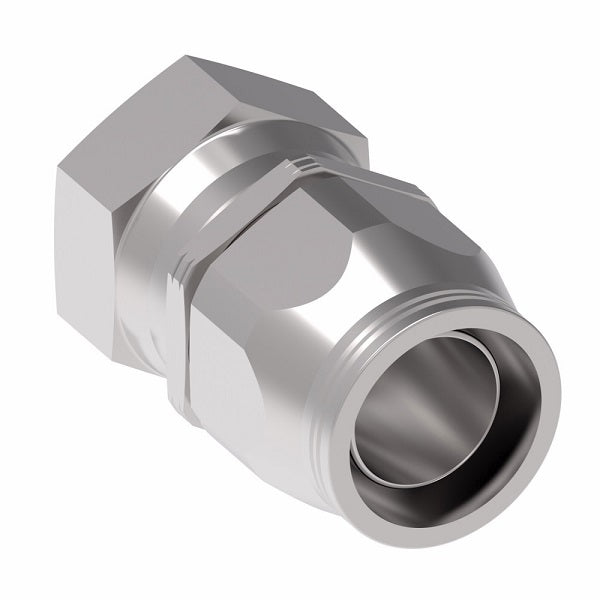

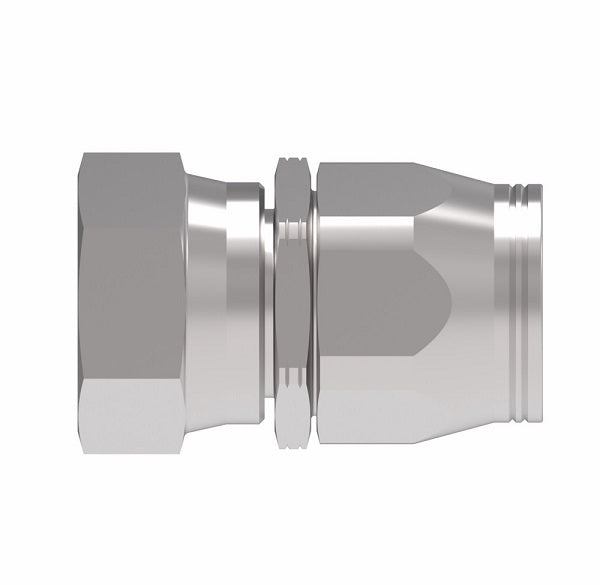

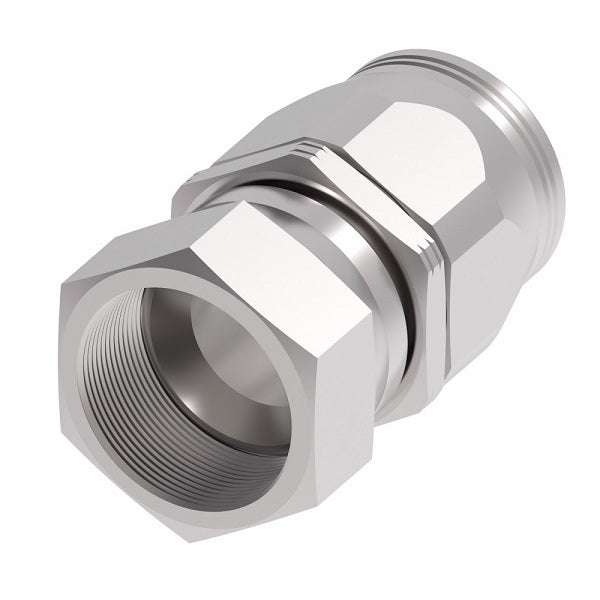

190535-16C Aeroquip by Danfoss | Female 37° JIC Swivel Super Gem PTFE Reusable Hose Fitting | -16 Female 37° JIC Swivel x -16 Reusable Hose End | Stainless Steel

190535-16C Aeroquip by Danfoss | Female 37° JIC Swivel Super Gem PTFE Reusable Hose Fitting | -16 Female 37° JIC Swivel x -16 Reusable Hose End | Stainless Steel

Name: 190535-16C Aeroquip by Danfoss | Female 37° JIC Swivel Super Gem PTFE Reusable Hose Fitting | -16 Female 37° JIC Swivel x -16 Reusable Hose End | Stainless Steel
Brand: Danfoss/Eaton
SKU: 190535-16C Danfoss
Price: 409.32 USD
Availability: InStock

$409.32 - $409.32

$409.32

$409.32 - $409.32

$409.32

Aeroquip® by Danfoss
Super Gem Reusable Hose Fitting for PTFE Hose - Female 37° JIC Swivel - Straight

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 190535-16C Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1in Female JIC, 1in Reusable Hose End
Material(s):	Stainless Steel
Compatible with the following Series:	2807 Series \| SC-TW Series \| S-TW Series

Technical Info:
Reusable Fitting Socket Data.PDF


Steel & Brass Part Number	Stainless Steel Part Number	Hose Size	Thread	A	D	EØ	Sleeve Brass Part Number	Sleeve Stainless Steel Part Number
-	190535-8C	-08	3/4-16	2.07"	1.48"	0.35"	900568-8B	900568-8C
63-190535-12	190535-12C	-12	1-1/16-12	2.46"	1.70"	0.56"	900568-12B	900568-12C
63-190535-16	190535-16C	-16	1-5/16-12	2.66"	1.90"	0.83"	900568-16B	900568-16C
63-190535-20	190535-20C	-20	1-5/8-12	3.14"	2.19"	1.06"	900568-20B	-
63-190535-24	190535-24C	-24	1-7/8-12	3.38"	2.42"	1.28"	-	-
