63-190535-20 Aeroquip by Danfoss | Female 37° JIC Swivel Super Gem PTFE Reusable Hose Fitting | -20 Female 37° JIC Swivel x -20 Reusable Hose End | Steel & Brass

63-190535-20 Aeroquip by Danfoss | Female 37° JIC Swivel Super Gem PTFE Reusable Hose Fitting | -20 Female 37° JIC Swivel x -20 Reusable Hose End | Steel & Brass

Name: 63-190535-20 Aeroquip by Danfoss | Female 37° JIC Swivel Super Gem PTFE Reusable Hose Fitting | -20 Female 37° JIC Swivel x -20 Reusable Hose End | Steel & Brass
Brand: Danfoss/Eaton
SKU: 63-190535-20 Danfoss
Price: 275.48 USD
Availability: InStock

$275.48 - $275.48

$275.48

$275.48 - $275.48

$275.48

Aeroquip® by Danfoss

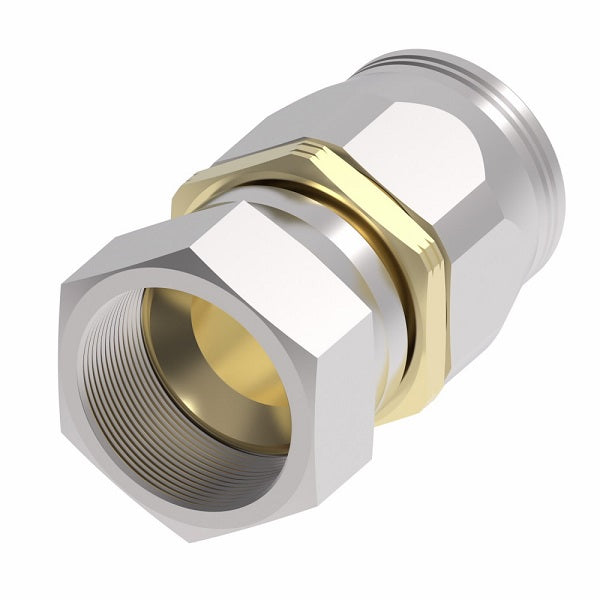

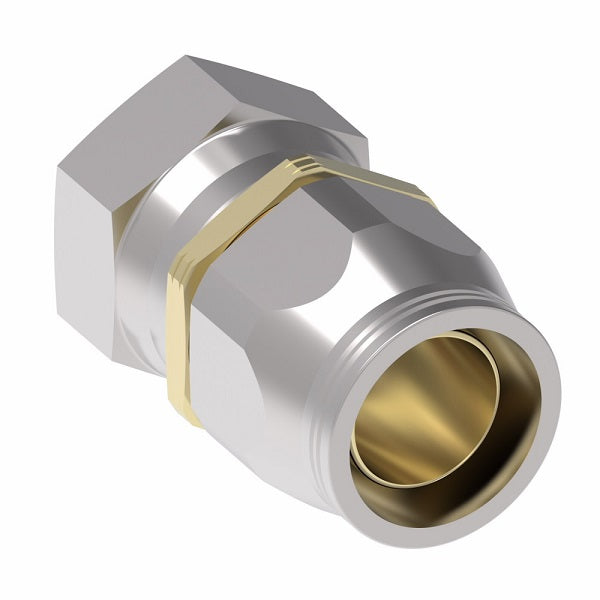

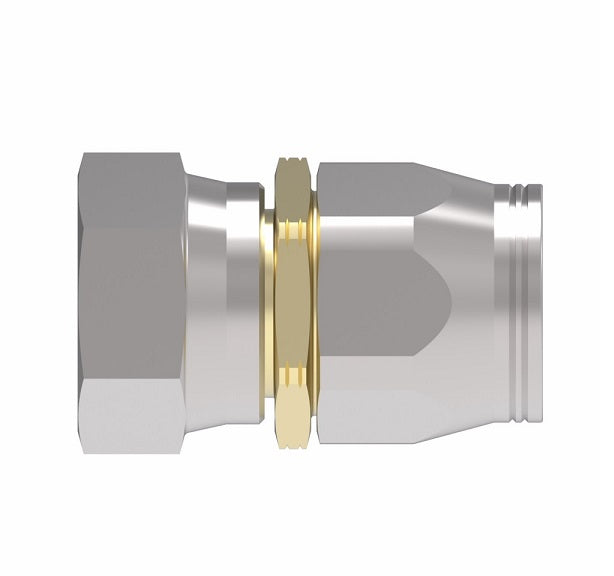

Super Gem Reusable Hose Fitting for PTFE Hose - Female 37° JIC Swivel - Straight

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 63-190535-20 Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1-1/4in Female JIC, 1-1/4in Reusable Hose End
Material(s):	Steel, Brass
Compatible with the following Series:	2807 Series \| SC-TW Series \| S-TW Series

Technical Info:
Reusable Fitting Socket Data.PDF


Steel & Brass Part Number	Stainless Steel Part Number	Hose Size	Thread	A	D	EØ	Sleeve Brass Part Number	Sleeve Stainless Steel Part Number
-	190535-8C	-08	3/4-16	2.07"	1.48"	0.35"	900568-8B	900568-8C
63-190535-12	190535-12C	-12	1-1/16-12	2.46"	1.70"	0.56"	900568-12B	900568-12C
63-190535-16	190535-16C	-16	1-5/16-12	2.66"	1.90"	0.83"	900568-16B	900568-16C
63-190535-20	190535-20C	-20	1-5/8-12	3.14"	2.19"	1.06"	900568-20B	-
63-190535-24	190535-24C	-24	1-7/8-12	3.38"	2.42"	1.28"	-	-
