190600-10C Aeroquip by Danfoss | Female 37° JIC Swivel Super Gem PTFE Reusable Hose Fitting | -10 Female 37° JIC Swivel x -10 Reusable Hose End | Stainless Steel

190600-10C Aeroquip by Danfoss | Female 37° JIC Swivel Super Gem PTFE Reusable Hose Fitting | -10 Female 37° JIC Swivel x -10 Reusable Hose End | Stainless Steel

Name: 190600-10C Aeroquip by Danfoss | Female 37° JIC Swivel Super Gem PTFE Reusable Hose Fitting | -10 Female 37° JIC Swivel x -10 Reusable Hose End | Stainless Steel
Brand: Danfoss/Eaton
SKU: 190600-10C Danfoss
Price: 199.75 USD
Availability: InStock

$199.75 - $199.75

$199.75

$199.75 - $199.75

$199.75

Aeroquip® by Danfoss

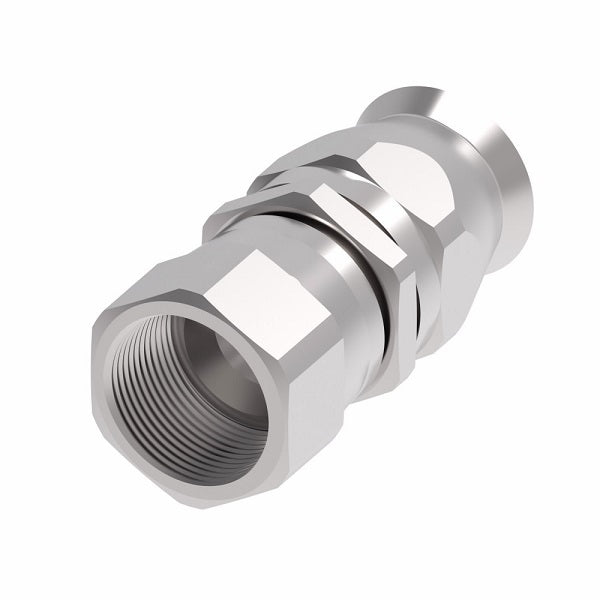

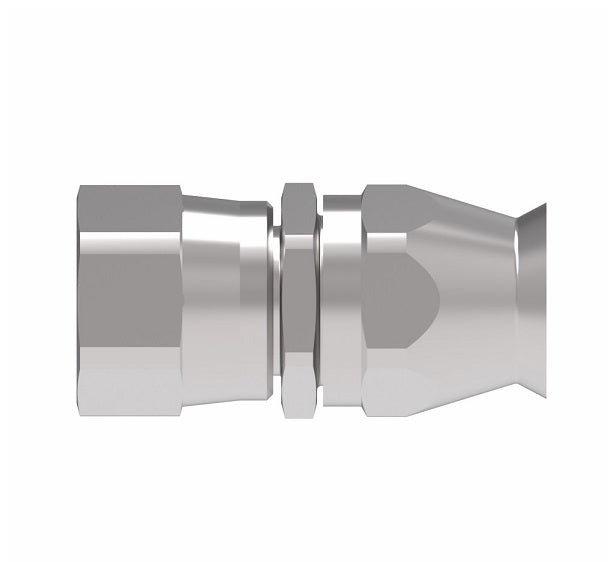

Super Gem Reusable Hose Fitting for PTFE Hose - Female 37° JIC Swivel - Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 190600-10C Danfoss
Shape (Orientation):	Straight
Ends Configuration:	5/8in Female JIC, 5/8in Reusable Hose End
Material(s):	Stainless Steel
Special Properties:	Swivel
Compatible with the following Series:	2807 Series \| SC-TW Series \| S-TW Series

Technical Info:
Reusable Fitting Socket Data.PDF


Steel & Brass Part Number	Stainless Steel Part Number	Steel Part Number	Hose Size	Thread	A	D	EØ	Sleeve Brass Part Number	Sleeve Stainless Steel Part Number
-	-	190600-3S	-03	3/8-24	1.38"	1.04"	0.09"	900568-3B	-
63-190600-4	190600-4C	190600-4S	-04	7/16-20	1.58"	1.13"	0.16"	900568-4B	900568-4C
63-190600-5	190600-5C	-	-05	1/2-20	1.68"	1.17"	0.23"	900568-5B	900568-5C
63-190600-6	190600-6C	190600-6S	-06	9/16-18	1.74"	1.22"	0.26"	900568-6B	900568-6C
63-190600-8	190600-8C	190600-8S	-08	3/4-16	1.98"	1.35"	0.38"	900568-8B	900568-8C
63-190600-10	190600-10C	190600-10S	-10	7/8-14	2.22"	1.54"	0.47"	900568-10B	900568-10C
63-190600-12	190600-12C	190600-12S	-12	1-1/16-12	2.33"	1.67"	0.59"	900568-12B	900568-12C
63-190600-16	190600-16C	-	-16	1-5/16-12	2.52"	1.91"	0.83"	900568-16B	900568-16C
63-190600-20	-	-	-20	1-5/8-12	2.92"	2.27"	1.06"	900568-20B	-
