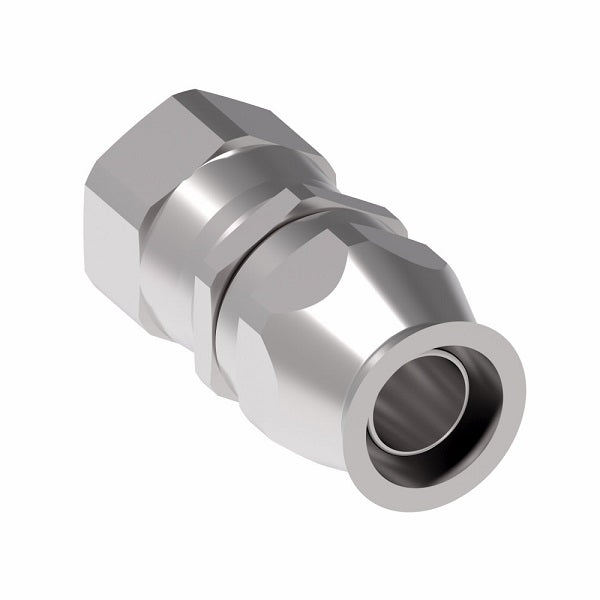

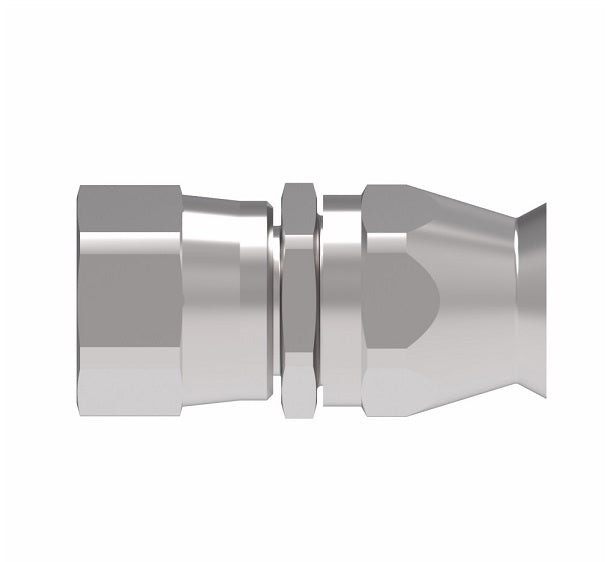

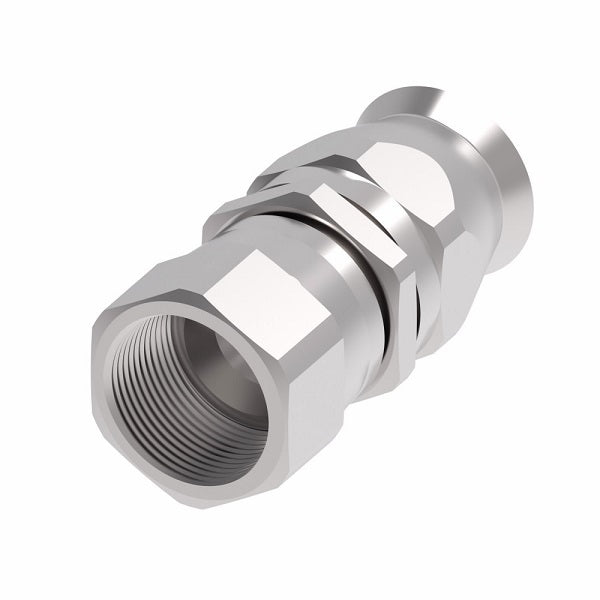

190600-4C Aeroquip by Danfoss | Female 37° JIC Swivel Super Gem PTFE Reusable Hose Fitting | -04 Female 37° JIC Swivel x -04 Reusable Hose End | Stainless Steel

190600-4C Aeroquip by Danfoss | Female 37° JIC Swivel Super Gem PTFE Reusable Hose Fitting | -04 Female 37° JIC Swivel x -04 Reusable Hose End | Stainless Steel

Name: 190600-4C Aeroquip by Danfoss | Female 37° JIC Swivel Super Gem PTFE Reusable Hose Fitting | -04 Female 37° JIC Swivel x -04 Reusable Hose End | Stainless Steel
Brand: Danfoss/Eaton
SKU: 190600-4C Danfoss
Price: 86.01 USD
Availability: InStock

$86.01 - $86.01

$86.01

$86.01 - $86.01

$86.01

Aeroquip® by Danfoss
Super Gem Reusable Hose Fitting for PTFE Hose - Female 37° JIC Swivel - Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 190600-4C Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1/4in Female JIC, 1/4in Reusable Hose End
Material(s):	Steel, Brass
Special Properties:	Swivel
Compatible with the following Series:	2807 Series \| SC-TW Series \| S-TW Series

Technical Info:
Reusable Fitting Socket Data.PDF


Steel & Brass Part Number	Stainless Steel Part Number	Steel Part Number	Hose Size	Thread	A	D	EØ	Sleeve Brass Part Number	Sleeve Stainless Steel Part Number
-	-	190600-3S	-03	3/8-24	1.38"	1.04"	0.09"	900568-3B	-
63-190600-4	190600-4C	190600-4S	-04	7/16-20	1.58"	1.13"	0.16"	900568-4B	900568-4C
63-190600-5	190600-5C	-	-05	1/2-20	1.68"	1.17"	0.23"	900568-5B	900568-5C
63-190600-6	190600-6C	190600-6S	-06	9/16-18	1.74"	1.22"	0.26"	900568-6B	900568-6C
63-190600-8	190600-8C	190600-8S	-08	3/4-16	1.98"	1.35"	0.38"	900568-8B	900568-8C
63-190600-10	190600-10C	190600-10S	-10	7/8-14	2.22"	1.54"	0.47"	900568-10B	900568-10C
63-190600-12	190600-12C	190600-12S	-12	1-1/16-12	2.33"	1.67"	0.59"	900568-12B	900568-12C
63-190600-16	190600-16C	-	-16	1-5/16-12	2.52"	1.91"	0.83"	900568-16B	900568-16C
63-190600-20	-	-	-20	1-5/8-12	2.92"	2.27"	1.06"	900568-20B	-

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
