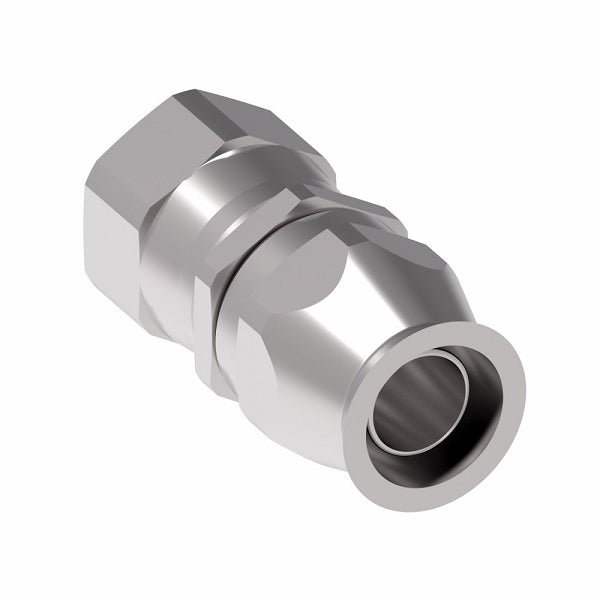

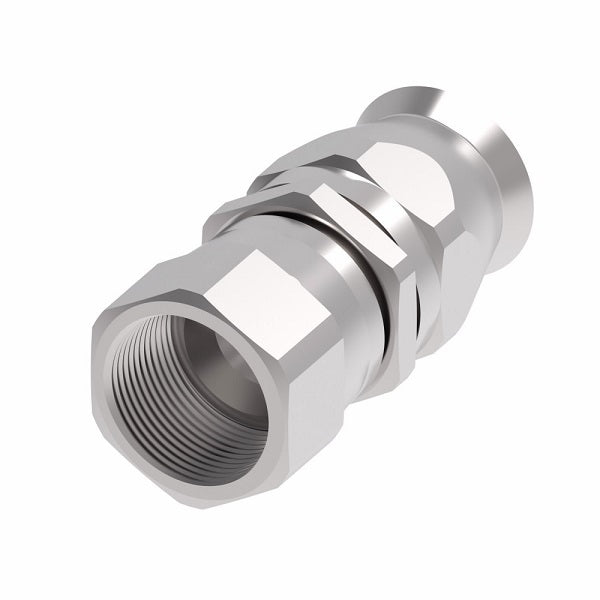

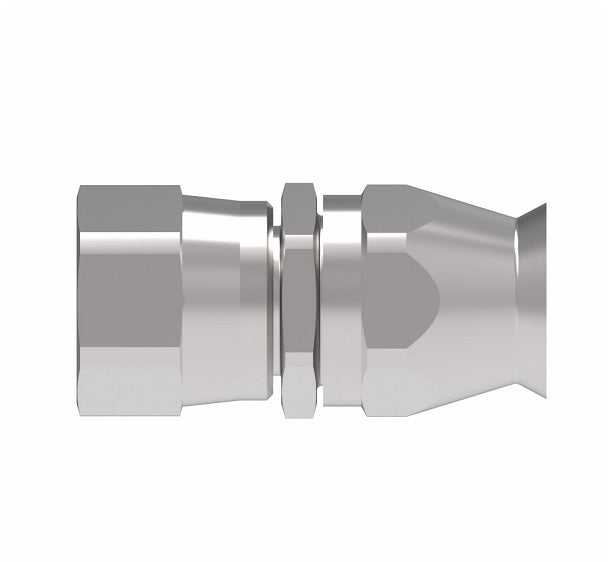

190600-4S Aeroquip by Danfoss | Female 37° JIC Swivel Super Gem PTFE Reusable Hose Fitting | -04 Female 37° JIC Swivel x -04 Reusable Hose End | Steel
190600-4S Aeroquip by Danfoss | Female 37° JIC Swivel Super Gem PTFE Reusable Hose Fitting | -04 Female 37° JIC Swivel x -04 Reusable Hose End | Steel | Pack of 10
190600-4S Aeroquip by Danfoss | Female 37° JIC Swivel Super Gem PTFE Reusable Hose Fitting | -04 Female 37° JIC Swivel x -04 Reusable Hose End | Steel | Pack of 10
190600-4S Aeroquip by Danfoss | Female 37° JIC Swivel Super Gem PTFE Reusable Hose Fitting | -04 Female 37° JIC Swivel x -04 Reusable Hose End | Steel

190600-4S Aeroquip by Danfoss | Female 37° JIC Swivel Super Gem PTFE Reusable Hose Fitting | -04 Female 37° JIC Swivel x -04 Reusable Hose End | Steel | Pack of 10

$353.10 - $353.10
$353.10
$353.10 - $353.10
$353.10

Aeroquip® by Danfoss
Super Gem Reusable Hose Fitting for PTFE Hose - Female 37° JIC Swivel - Straight

(Formerly Eaton Aeroquip)

Package Quantity: 10 Units

Specifications for Variant SKU: 190600-4S Danfoss | 10 |
Shape (Orientation): Straight
Ends Configuration: 1/4in Female JIC, 1/4in Reusable Hose End
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: 2807 Series  |   SC-TW Series  |   S-TW Series
Technical Info:
Steel & Brass
Part Number 		Stainless Steel
Part Number 		Steel
Part Number 		Hose Size Thread A D EØ Sleeve
Brass
Part Number 		Sleeve
Stainless Steel
Part Number
- - 190600-3S -03 3/8-24 1.38" 1.04" 0.09" 900568-3B -
63-190600-4 190600-4C 190600-4S -04 7/16-20 1.58" 1.13" 0.16" 900568-4B 900568-4C
63-190600-5 190600-5C - -05 1/2-20 1.68" 1.17" 0.23" 900568-5B 900568-5C
63-190600-6 190600-6C 190600-6S -06 9/16-18 1.74" 1.22" 0.26" 900568-6B 900568-6C
63-190600-8 190600-8C 190600-8S -08 3/4-16 1.98" 1.35" 0.38" 900568-8B 900568-8C
63-190600-10 190600-10C 190600-10S -10 7/8-14 2.22" 1.54" 0.47" 900568-10B 900568-10C
63-190600-12 190600-12C 190600-12S -12 1-1/16-12 2.33" 1.67" 0.59" 900568-12B 900568-12C
63-190600-16 190600-16C - -16 1-5/16-12 2.52" 1.91" 0.83" 900568-16B 900568-16C
63-190600-20 - - -20 1-5/8-12 2.92" 2.27" 1.06" 900568-20B -

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
