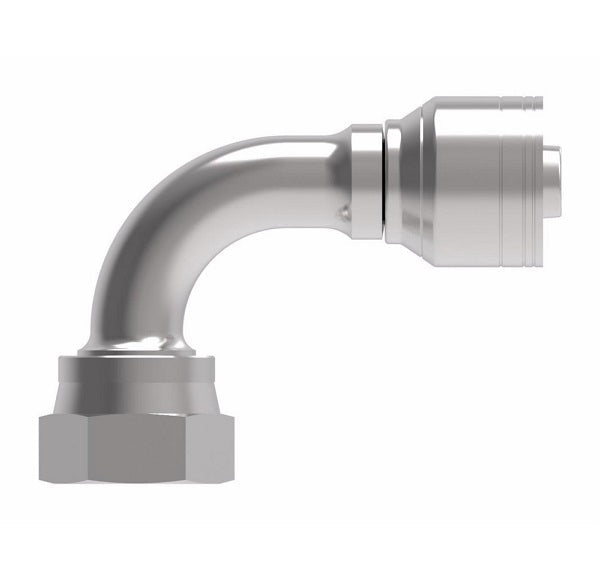

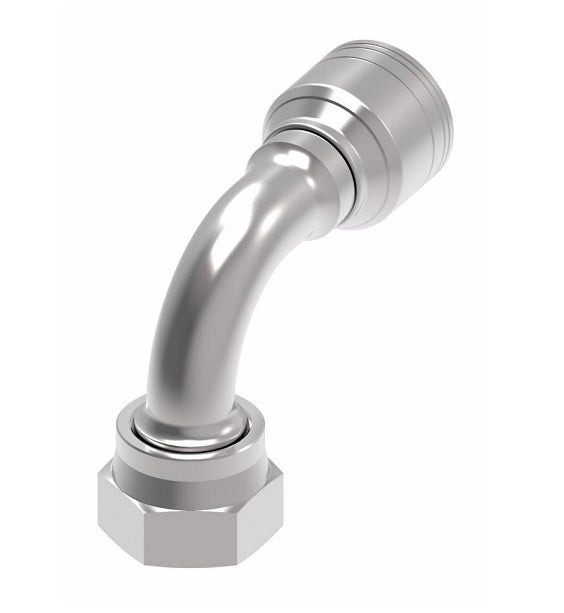

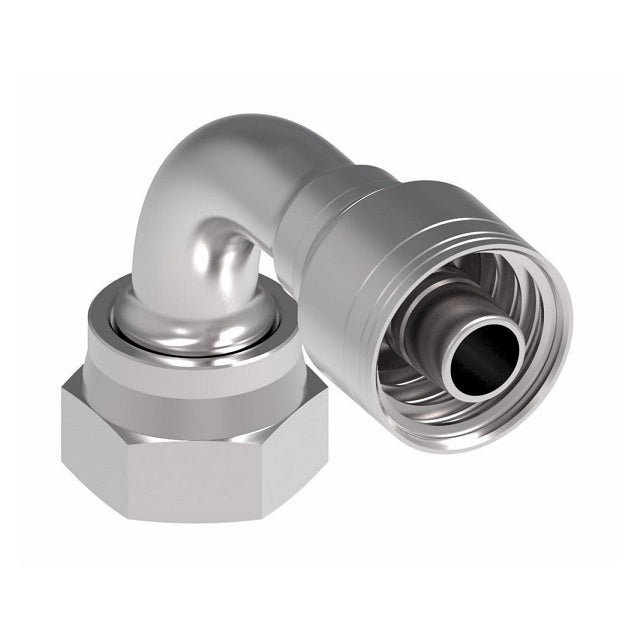

1A10FRB12 Aeroquip by Danfoss | Female ORS Swivel 90° Elbow (FRB) Crimp Hose Fitting | -10 Female O-Ring Face Seal Swivel x -12 Hose Barb | Steel

1A10FRB12 Aeroquip by Danfoss | Female ORS Swivel 90° Elbow (FRB) Crimp Hose Fitting | -10 Female O-Ring Face Seal Swivel x -12 Hose Barb | Steel

Name: 1A10FRB12 Aeroquip by Danfoss | Female ORS Swivel 90° Elbow (FRB) Crimp Hose Fitting | -10 Female O-Ring Face Seal Swivel x -12 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 1A10FRB12 Danfoss
Price: 231.46 USD
Availability: InStock

$231.46 - $231.46

$231.46

$231.46 - $231.46

$231.46

Aeroquip® by Danfoss
Female O-Ring Face Seal Swivel (FRB) Crimp Fitting - 90° Elbow

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 1A10FRB12 Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	5/8in Female O-Ring Face Seal, 3/4in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	2661 Series \| FC310 Series \| FC510 Series \| FC579 Series \| FC611 Series \| FC619 Series \| FC639/FC839B Series \| FC693 Series \| FC735 Series \| FC849/FC849B Series \| GH120 Series \| GH194 Series \| GH195 Series \| GH663 Series \| GH681 Series \| GH781 Series \| GH793 Series \| EC115 Series \| EC215 Series \| EC110 Series \| EC210 Series \| EC118 Series

Technical Info:
Crimp Fitting Socket Data.PDF

Steel Part Number	Zinc-Nickel Plated Steel Part Number	Hose Dash Size	End Size	Compatible Hose ID	Inside Diameter	Length
-	1A6FRB4TZ	-04	11/16"	0.25"	0.17"	2.54"
-	1A6FRB6TZ	-06	11/16"	0.38"	0.25"	2.74"
-	1A8FRB8TZ	-08	13/16"	0.50"	0.33"	3.32"
1A10FRB12	1A10FRB12TZ	-12	1"	0.75"	0.45"	-
1A16FRB20	-	-20	-	-	-	-
1A20FRB20	-	-20	1-11/16"	1.25"	1.02"	6.28"
1A20FRB20.078	-	-20	1-11/16"	1.25"	1.02"	6.18"
