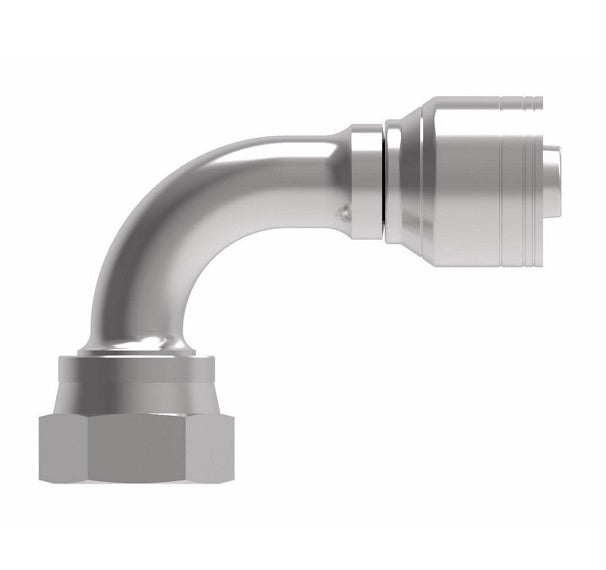

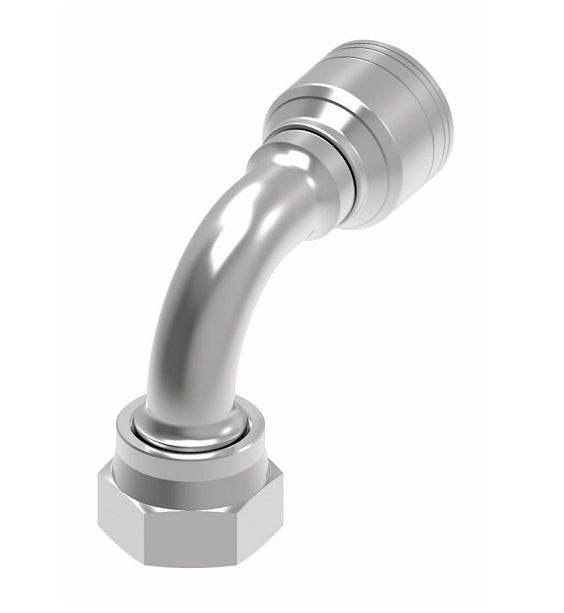

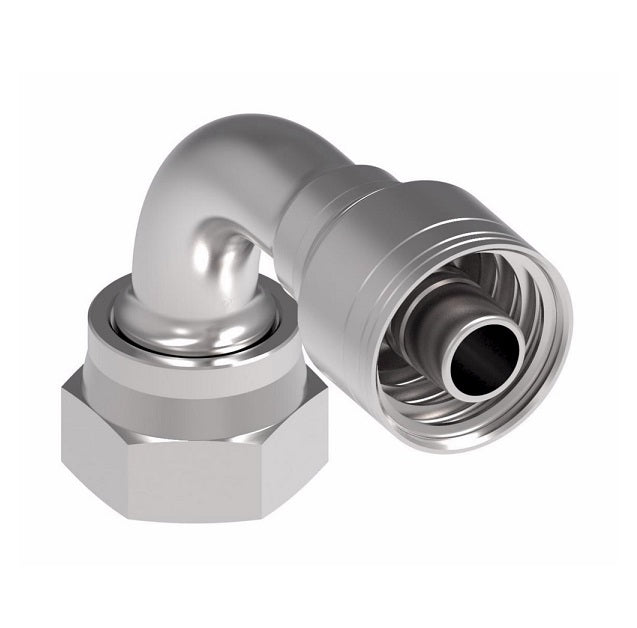

1A16FRB20 Aeroquip by Danfoss | Female ORS Swivel 90° Elbow (FRB) Crimp Hose Fitting | -16 Female O-Ring Face Seal Swivel x -20 Hose Barb | Steel
1A16FRB20 Aeroquip by Danfoss | Female ORS Swivel 90° Elbow (FRB) Crimp Hose Fitting | -16 Female O-Ring Face Seal Swivel x -20 Hose Barb | Steel | Pack of 10
1A16FRB20 Aeroquip by Danfoss | Female ORS Swivel 90° Elbow (FRB) Crimp Hose Fitting | -16 Female O-Ring Face Seal Swivel x -20 Hose Barb | Steel | Pack of 10
1A16FRB20 Aeroquip by Danfoss | Female ORS Swivel 90° Elbow (FRB) Crimp Hose Fitting | -16 Female O-Ring Face Seal Swivel x -20 Hose Barb | Steel

1A16FRB20 Aeroquip by Danfoss | Female ORS Swivel 90° Elbow (FRB) Crimp Hose Fitting | -16 Female O-Ring Face Seal Swivel x -20 Hose Barb | Steel | Pack of 10

$1,239.94 - $1,239.94
$1,239.94
$1,239.94 - $1,239.94
$1,239.94

Aeroquip® by Danfoss
Female O-Ring Face Seal Swivel (FRB) Crimp Fitting - 90° Elbow

(Formerly Eaton Aeroquip)

Package Quantity: 10 Units

Specifications for Variant SKU: 1A16FRB20 Danfoss | 10 |
Shape (Orientation): 90 Degree
Ends Configuration: 1in Female O-Ring Face Seal, 1-1/4in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: 2661 Series  |   FC310 Series  |   FC510 Series  |   FC579 Series  |   FC611 Series  |   FC619 Series  |   FC639/FC839B Series  |   FC693 Series  |   FC735 Series  |   FC849/FC849B Series  |   GH120 Series  |   GH194 Series  |   GH195 Series  |   GH663 Series  |   GH681 Series  |   GH781 Series  |   GH793 Series  |   EC115 Series  |   EC215 Series  |   EC110 Series  |   EC210 Series  |   EC118 Series
Technical Info:
Steel
Part Number 		Zinc-Nickel Plated
Steel
Part Number 		Hose Dash Size End Size Compatible Hose ID Inside Diameter Length
- 1A6FRB4TZ -04 11/16" 0.25" 0.17" 2.54"
- 1A6FRB6TZ -06 11/16" 0.38" 0.25" 2.74"
- 1A8FRB8TZ -08 13/16" 0.50" 0.33" 3.32"
1A10FRB12 1A10FRB12TZ -12 1" 0.75" 0.45" -
1A16FRB20 - -20 - - - -
1A20FRB20 - -20 1-11/16" 1.25" 1.02" 6.28"
1A20FRB20.078 - -20 1-11/16" 1.25" 1.02" 6.18"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
