1A10KF12 Aeroquip by Danfoss | 1 & 2 Wire TTC Komatsu Female Swivel (KF) Crimp Fitting | -10 Female Komatsu Swivel x -12 Hose Barb | Steel

1A10KF12 Aeroquip by Danfoss | 1 & 2 Wire TTC Komatsu Female Swivel (KF) Crimp Fitting | -10 Female Komatsu Swivel x -12 Hose Barb | Steel

Name: 1A10KF12 Aeroquip by Danfoss | 1 & 2 Wire TTC Komatsu Female Swivel (KF) Crimp Fitting | -10 Female Komatsu Swivel x -12 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 1A10KF12 Danfoss
Price: 52.32 USD
Availability: InStock

$52.32 - $52.32

$52.32

$52.32 - $52.32

$52.32

Aeroquip® by Danfoss

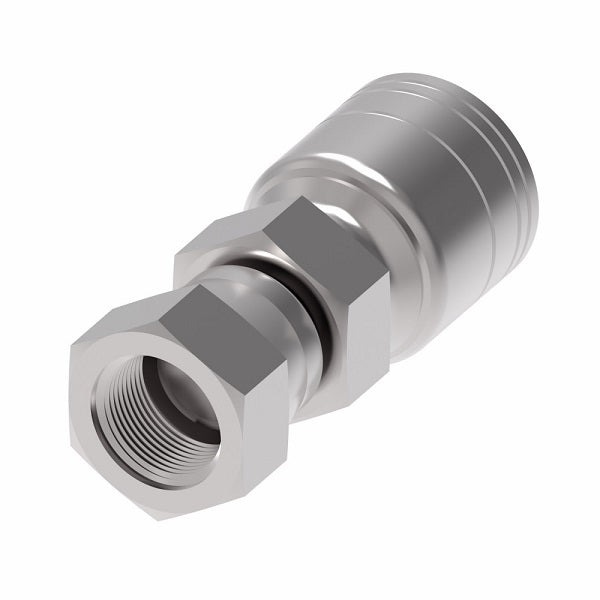

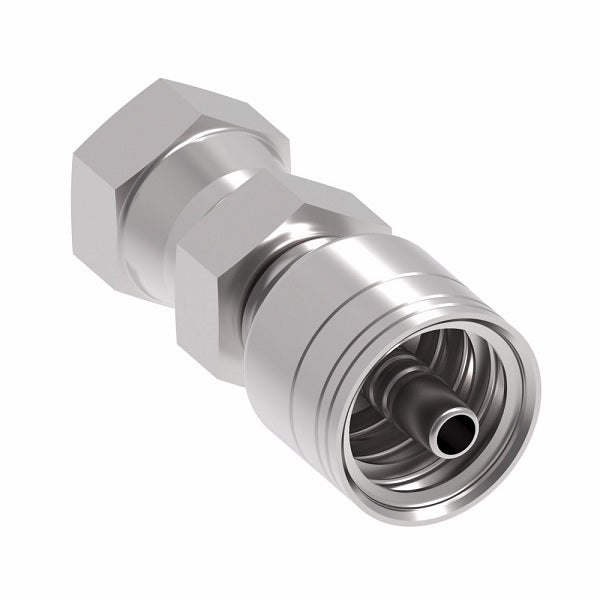

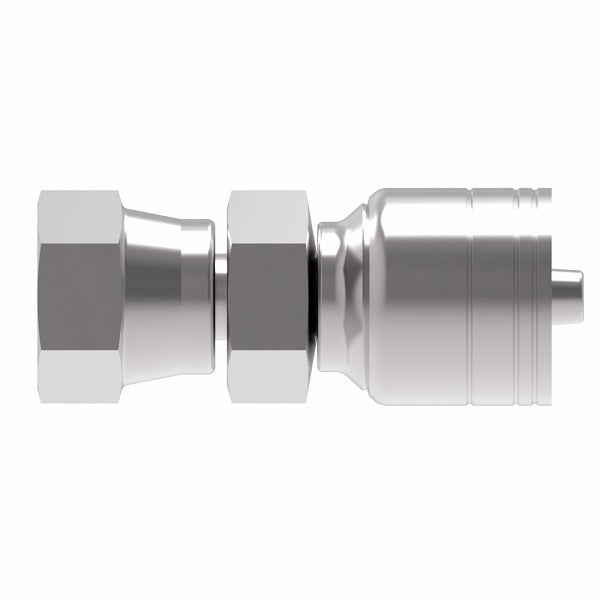

1 & 2 Wire TTC Female Komatsu Swivel Crimp Fitting (KF) - Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 1A10KF12 Danfoss
Shape (Orientation):	Straight
Ends Configuration:	5/8in Female Komatsu, 3/4in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	2661 Series \| FC310 Series \| FC510 Series \| FC579 Series \| FC611 Series \| FC619 Series \| FC639 Series \| FC839B Series \| FC693 Series \| FC735 Series \| FC849 Series \| FC849B Series \| GH120 Series \| GH194 Series \| GH195 Series \| GH663 Series \| GH681 Series \| GH781 Series \| GH793 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Thread	Hose Size	A	D	E&Oslash	Hex 1	Hex 2
1A4KF4	M14 x 1.5	-04	2.21"	1.29"	1.66"	0.75"	0.75"
1A6KF6	M18 x 1.5	-06	2.38"	1.38"	0.26"	0.94"	0.87"
1A8KF8	M22 x 1.5	-08	2.64"	1.57"	0.38"	1.06"	1.06"
1A10KF10	M24 x 1.5	-10	2.84"	1.81"	0.49"	1.19"	1.18"
1A10KF12	M24 x 1.5	-12	3.01"	1.83"	0.49"	1.26"	1.18"
1A12KF12	M30 x 1.5	-12	3.21"	2.02"	0.61"	1.42"	1.42"
1A16KF16	M33 x 1.5	-16	3.60"	2.24"	0.81"	1.61"	1.61"
1A20KF20	M36 x 1.5	-20	4.46"	2.73"	1.05"	1.81"	1.81"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
