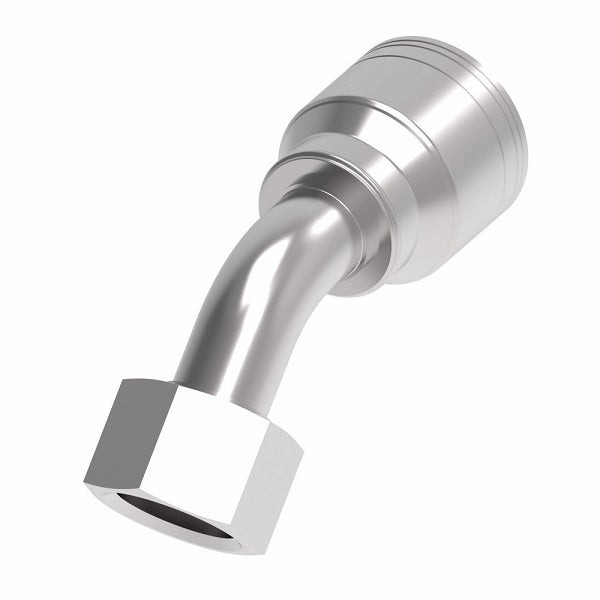

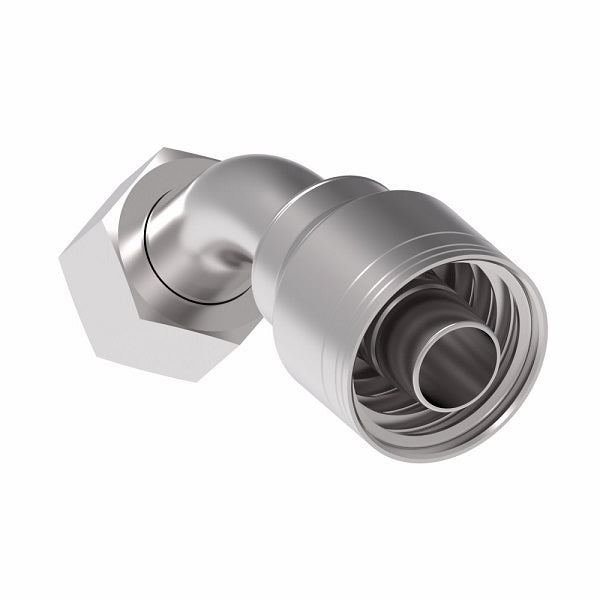

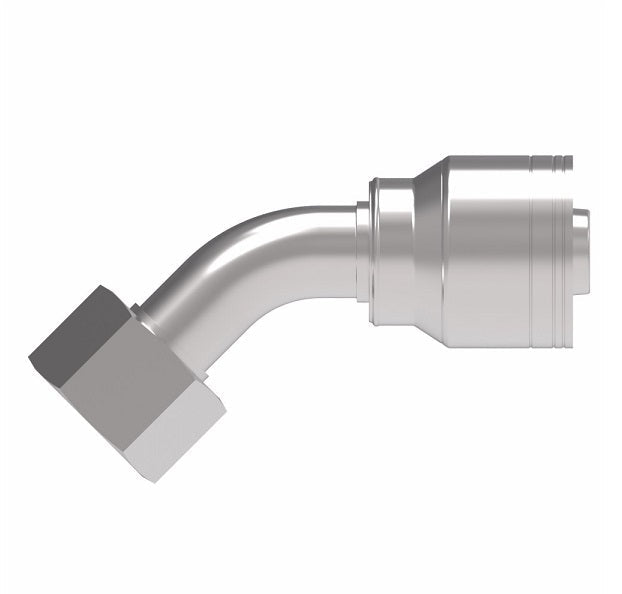

1A12BFA12 Aeroquip by Danfoss | 1 & 2 Wire TTC JIS/BSPP Female Swivel, 45° Elbow (BFA) Crimp Fitting | -12 Female BSPP Swivel x -12 Hose Barb | Steel

1A12BFA12 Aeroquip by Danfoss | 1 & 2 Wire TTC JIS/BSPP Female Swivel 45° Elbow (BFA) Crimp Fitting | -12 Female BSPP Swivel x -12 Hose Barb | Steel

Name: 1A12BFA12 Aeroquip by Danfoss | 1 & 2 Wire TTC JIS/BSPP Female Swivel 45° Elbow (BFA) Crimp Fitting | -12 Female BSPP Swivel x -12 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 1A12BFA12 Danfoss
Price: 88.72 USD
Availability: InStock

$88.72 - $88.72

$88.72

$88.72 - $88.72

$88.72

Aeroquip® by Danfoss
1 & 2 Wire TTC JIS/BSPP Female Swivel Crimp Fitting (BFA) - 45° Elbow

(Formerly Eaton Aeroquip)

The JIS parallel thread and the BSPP connection are interchangeable. G as part of thread size is ISO Designation for parallel thread.

Specifications for Variant SKU: 1A12BFA12 Danfoss
Shape (Orientation):	45 Degree
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	2661 Series \| FC310 Series \| FC510 Series \| FC579 Series \| FC611 Series \| FC619 Series \| FC639 Series \| FC839B Series \| FC693 Series \| FC735 Series \| FC849 Series \| FC849B Series \| GH120 Series \| GH194 Series \| GH195 Series \| GH663 Series \| GH681 Series \| GH781 Series \| GH793 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Thread	Hose Size	A	D	E&Oslash	H	Hex 1
1A4BFA4	G 1/4	-04	2.57"	1.65"	0.16"	0.65"	0.75"
1A6BFA6	G 3/8	-06	2.90"	1.91"	0.26"	0.75"	0.87"
1A8BFA6	G 1/2	-06	-	-	-	-	-
1A8BFA8	G 1/2	-08	3.60"	2.43"	0.38"	0.98"	1.06"
1A10BFA10	G 5/8	-10	3.95"	2.79"	0.50"	1.08"	1.18"
1A12BFA12	G 3/4	-12	4.28"	3.09"	0.61"	1.16"	1.26"
1A16BFA16	G 1	-16	4.99"	3.09"	0.81"	1.31"	1.61"
1A20BFA20	G 1-1/4	-20	6.05"	4.31"	1.05"	1.46"	1.97"
