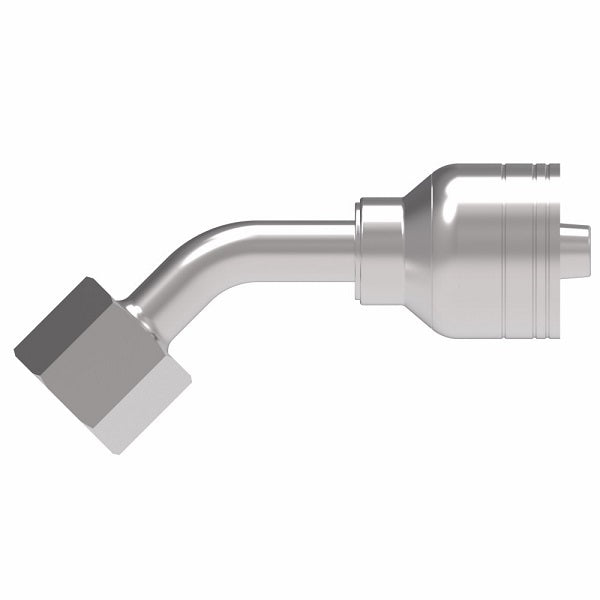

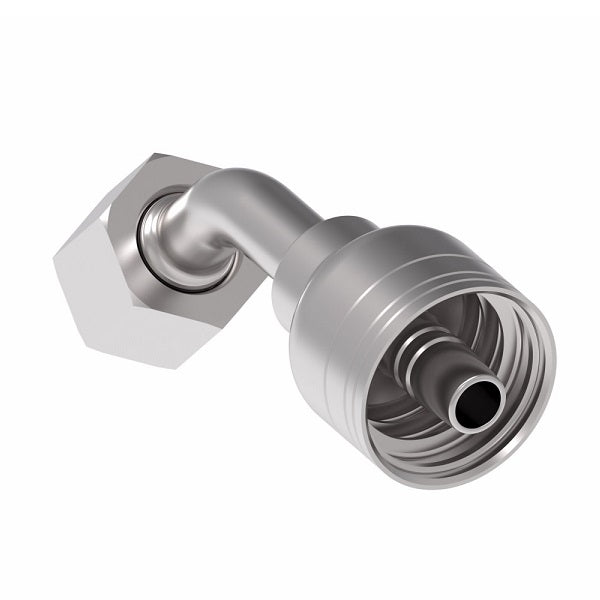

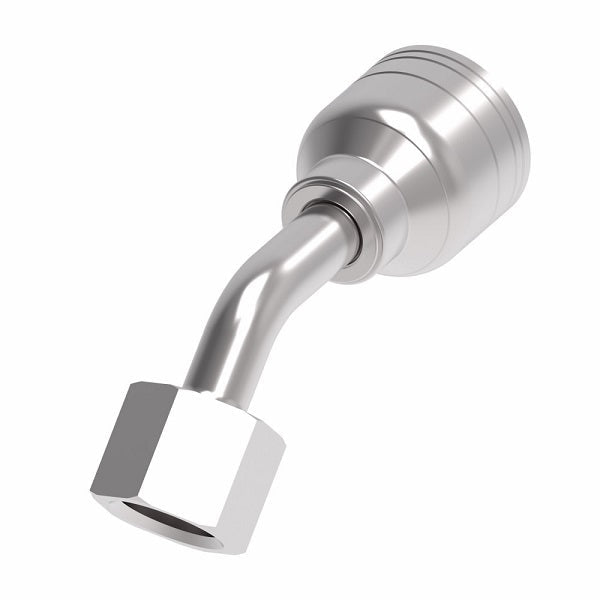

1A6BFA6 Aeroquip by Danfoss | 1 & 2 Wire TTC JIS/BSPP Female Swivel, 45° Elbow (BFA) Crimp Fitting | -06 Female BSPP Swivel x -06 Hose Barb | Steel
1A6BFA6 Aeroquip by Danfoss | 1 & 2 Wire TTC JIS/BSPP Female Swivel 45° Elbow (BFA) Crimp Fitting | -06 Female BSPP Swivel x -06 Hose Barb | Steel
1A6BFA6 Aeroquip by Danfoss | 1 & 2 Wire TTC JIS/BSPP Female Swivel 45° Elbow (BFA) Crimp Fitting | -06 Female BSPP Swivel x -06 Hose Barb | Steel
1A6BFA6 Aeroquip by Danfoss | 1 & 2 Wire TTC JIS/BSPP Female Swivel, 45° Elbow (BFA) Crimp Fitting | -06 Female BSPP Swivel x -06 Hose Barb | Steel

1A6BFA6 Aeroquip by Danfoss | 1 & 2 Wire TTC JIS/BSPP Female Swivel 45° Elbow (BFA) Crimp Fitting | -06 Female BSPP Swivel x -06 Hose Barb | Steel

$41.23 - $41.23
$41.23
$41.23 - $41.23
$41.23

Aeroquip® by Danfoss
1 & 2 Wire TTC JIS/BSPP Female Swivel Crimp Fitting (BFA) - 45° Elbow

(Formerly Eaton Aeroquip)

The JIS parallel thread and the BSPP connection are interchangeable. G as part of thread size is ISO Designation for parallel thread.
Specifications for Variant SKU: 1A6BFA6 Danfoss
Shape (Orientation): 45 Degree
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: 2661 Series  |   FC310 Series  |   FC510 Series  |   FC579 Series  |   FC611 Series  |   FC619 Series  |   FC639 Series  |   FC839B Series  |   FC693 Series  |   FC735 Series  |   FC849 Series  |   FC849B Series  |   GH120 Series  |   GH194 Series  |   GH195 Series  |   GH663 Series  |   GH681 Series  |   GH781 Series  |   GH793 Series
Technical Info:
Steel
Part Number 		Thread Hose Size A D E&Oslash H Hex 1
1A4BFA4 G 1/4 -04 2.57" 1.65" 0.16" 0.65" 0.75"
1A6BFA6 G 3/8 -06 2.90" 1.91" 0.26" 0.75" 0.87"
1A8BFA6 G 1/2 -06 - - - - -
1A8BFA8 G 1/2 -08 3.60" 2.43" 0.38" 0.98" 1.06"
1A10BFA10 G 5/8 -10 3.95" 2.79" 0.50" 1.08" 1.18"
1A12BFA12 G 3/4 -12 4.28" 3.09" 0.61" 1.16" 1.26"
1A16BFA16 G 1 -16 4.99" 3.09" 0.81" 1.31" 1.61"
1A20BFA20 G 1-1/4 -20 6.05" 4.31" 1.05" 1.46" 1.97"
