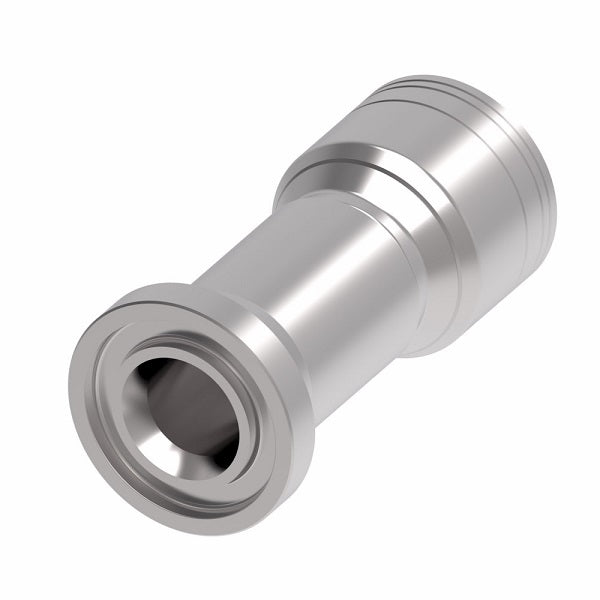

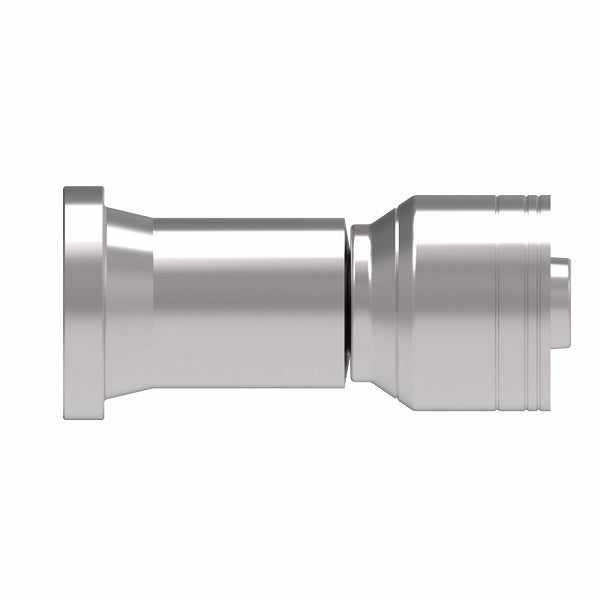

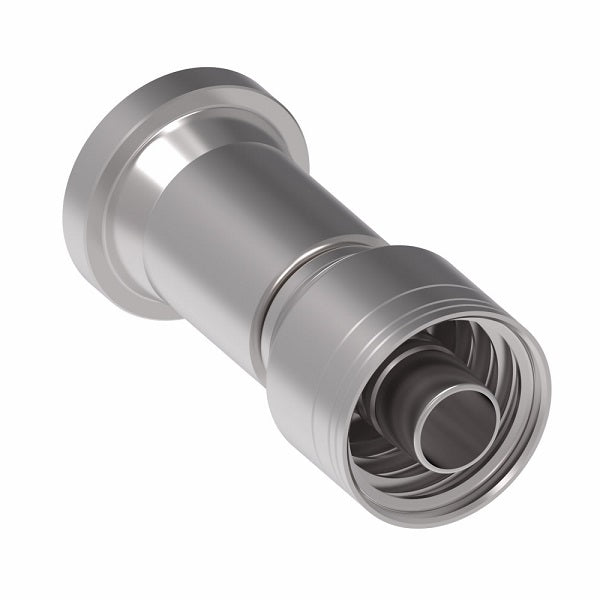

1A12FL10 Aeroquip by Danfoss | 1 & 2 Wire TTC SAE Code 61 Split Flange (FL) Crimp Fitting | -12 Code 61 Split Flange x -10 Hose Barb | Steel
1A12FL10 Aeroquip by Danfoss | 1 & 2 Wire TTC SAE Code 61 Split Flange (FL) Crimp Fitting | -12 Code 61 Split Flange x -10 Hose Barb | Steel
1A12FL10 Aeroquip by Danfoss | 1 & 2 Wire TTC SAE Code 61 Split Flange (FL) Crimp Fitting | -12 Code 61 Split Flange x -10 Hose Barb | Steel
1A12FL10 Aeroquip by Danfoss | 1 & 2 Wire TTC SAE Code 61 Split Flange (FL) Crimp Fitting | -12 Code 61 Split Flange x -10 Hose Barb | Steel

1A12FL10 Aeroquip by Danfoss | 1 & 2 Wire TTC SAE Code 61 Split Flange (FL) Crimp Fitting | -12 Code 61 Split Flange x -10 Hose Barb | Steel

$86.58 - $86.58
$86.58
$86.58 - $86.58
$86.58

Aeroquip® by Danfoss
1 & 2 Wire TTC SAE Code 61 Split Flange Crimp Fitting (FL) - Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 1A12FL10 Danfoss
Shape (Orientation): Straight
Ends Configuration: 3/4in Code 61 Flange, 5/8in Hose Barb
Material(s): Steel
Compatible with the following Series: 2661 Series  |   FC310 Series  |   FC510 Series  |   FC579 Series  |   FC611 Series  |   FC619 Series  |   FC639 Series  |   FC839B Series  |   FC693 Series  |   FC735 Series  |   FC849 Series  |   FC849B Series  |   GH120 Series  |   GH194 Series  |   GH195 Series  |   GH663 Series  |   GH681 Series  |   GH781 Series  |   GH793 Series
Technical Info:
Steel
Part Number 		Zinc-Nickel Plated Steel
Part Number 		Thread Flange
Head Dia.
K&Oslash		 Hose Size A D E&Oslash
1A8FL8 - 1.19" -08 3.13" 2.06" 0.38"
1A12FL8 - 1.50" -08 3.17" 2.10" 0.38"
1A12FL10 - 1.50" -10 3.13" 2.10" 0.50"
1A12FL12 - 1.50" -12 3.31" 2.12" 0.61"
1A16FL12 - 1.75" -12 3.31" 2.12" 0.61"
1A20FL12 - 2.00" -12 3.61" 2.42" 0.61"
1A16FL16 - 1.75" -16 3.49" 2.14" 0.82"
1A20FL16 - 2.00" -16 3.79" 2.44" 0.82"
1A16FL20 - 1.75" -20 3.94" 2.21" 0.82"
1A20FL20 1A20FL20TZ 2.00" -20 4.24" 2.51" 1.05"
1A24FL20 - 2.38" -20 4.27" 2.54" 1.05"
1A32FL20 - 2.81" -20 4.27" 2.54" 1.01"
1A20FL24 - 2.00" -24 4.37" 2.55" 1.05"
1A24FL24 - 2.38" -24 4.40" 2.58" 1.26"
1A32FL24 - 2.81" -24 4.40" 2.58" 1.19"
1A32FL32 - 2.81" -32 4.61" 2.63" 1.75"
1A40FL32 - 3.31" -32 4.60" 2.63" 1.75"
