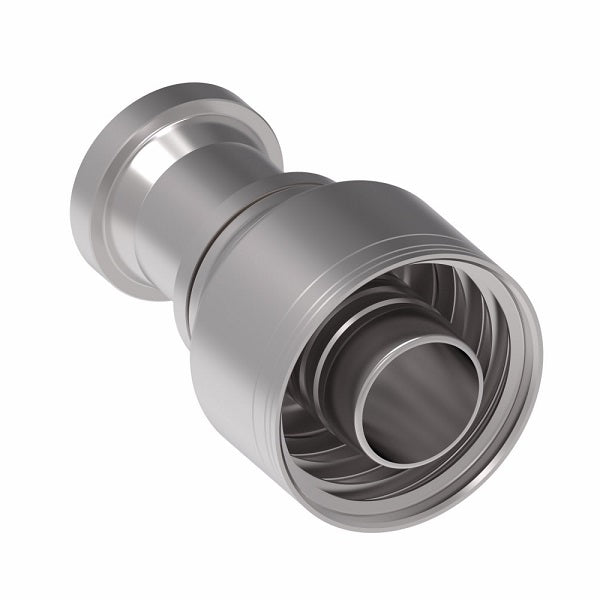

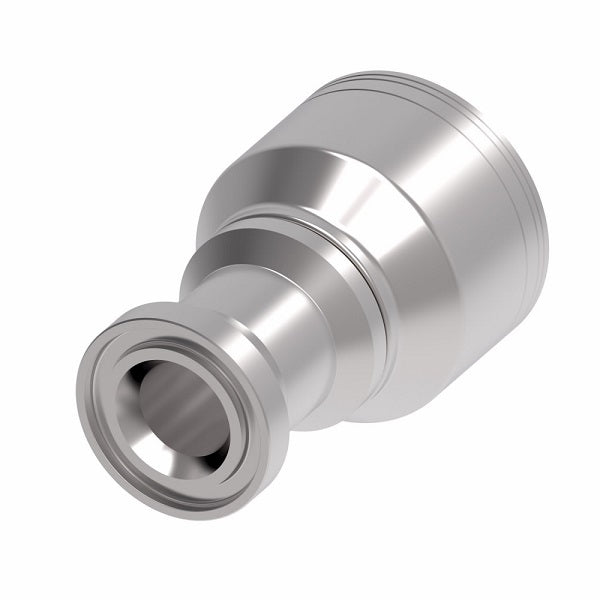

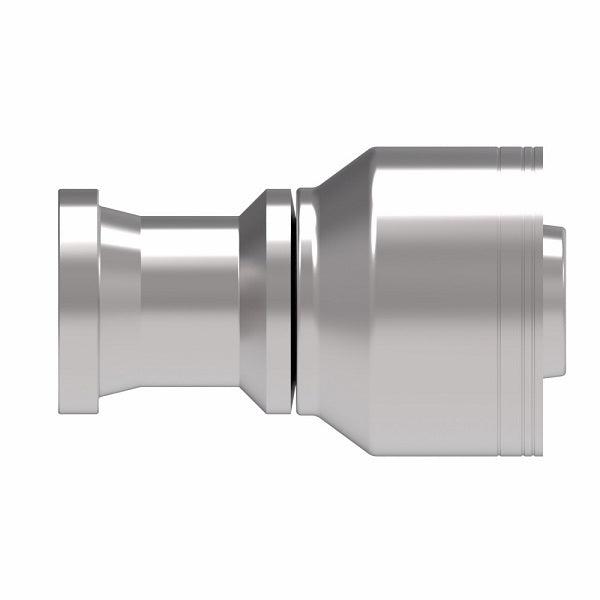

1A20FL24 Aeroquip by Danfoss | 1 & 2 Wire TTC SAE Code 61 Split Flange (FL) Crimp Fitting | -20 Code 61 Split Flange x -24 Hose Barb | Steel
1A20FL24 Aeroquip by Danfoss | 1 & 2 Wire TTC SAE Code 61 Split Flange (FL) Crimp Fitting | -20 Code 61 Split Flange x -24 Hose Barb | Steel
1A20FL24 Aeroquip by Danfoss | 1 & 2 Wire TTC SAE Code 61 Split Flange (FL) Crimp Fitting | -20 Code 61 Split Flange x -24 Hose Barb | Steel

1A20FL24 Aeroquip by Danfoss | 1 & 2 Wire TTC SAE Code 61 Split Flange (FL) Crimp Fitting | -20 Code 61 Split Flange x -24 Hose Barb | Steel

$161.52 - $161.52
$161.52
$161.52 - $161.52
$161.52

Aeroquip® by Danfoss
1 & 2 Wire TTC SAE Code 61 Split Flange Crimp Fitting (FL) - Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 1A20FL24 Danfoss
Shape (Orientation): Straight
Ends Configuration: 1-1/4in Code 61 Flange, 1-1/2in Hose Barb
Material(s): Steel
Compatible with the following Series: 2661 Series  |   FC310 Series  |   FC510 Series  |   FC579 Series  |   FC611 Series  |   FC619 Series  |   FC639 Series  |   FC839B Series  |   FC693 Series  |   FC735 Series  |   FC849 Series  |   FC849B Series  |   GH120 Series  |   GH194 Series  |   GH195 Series  |   GH663 Series  |   GH681 Series  |   GH781 Series  |   GH793 Series
Technical Info:
Steel
Part Number 		Zinc-Nickel Plated Steel
Part Number 		Thread Flange
Head Dia.
K&Oslash		 Hose Size A D E&Oslash
1A8FL8 - 1.19" -08 3.13" 2.06" 0.38"
1A12FL8 - 1.50" -08 3.17" 2.10" 0.38"
1A12FL10 - 1.50" -10 3.13" 2.10" 0.50"
1A12FL12 - 1.50" -12 3.31" 2.12" 0.61"
1A16FL12 - 1.75" -12 3.31" 2.12" 0.61"
1A20FL12 - 2.00" -12 3.61" 2.42" 0.61"
1A16FL16 - 1.75" -16 3.49" 2.14" 0.82"
1A20FL16 - 2.00" -16 3.79" 2.44" 0.82"
1A16FL20 - 1.75" -20 3.94" 2.21" 0.82"
1A20FL20 1A20FL20TZ 2.00" -20 4.24" 2.51" 1.05"
1A24FL20 - 2.38" -20 4.27" 2.54" 1.05"
1A32FL20 - 2.81" -20 4.27" 2.54" 1.01"
1A20FL24 - 2.00" -24 4.37" 2.55" 1.05"
1A24FL24 - 2.38" -24 4.40" 2.58" 1.26"
1A32FL24 - 2.81" -24 4.40" 2.58" 1.19"
1A32FL32 - 2.81" -32 4.61" 2.63" 1.75"
1A40FL32 - 3.31" -32 4.60" 2.63" 1.75"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
