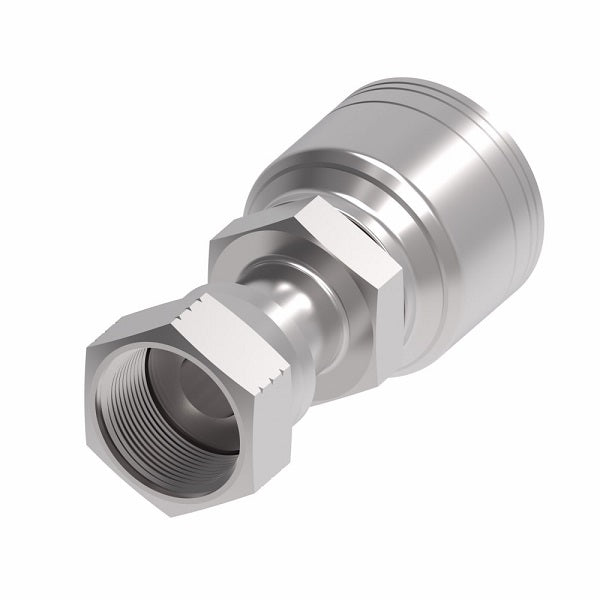

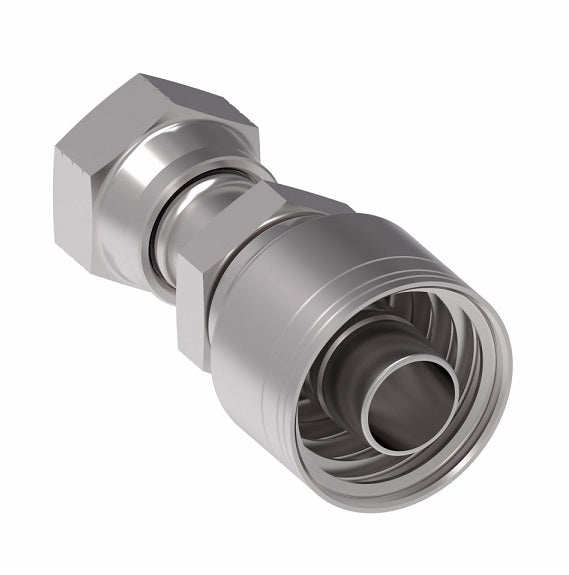

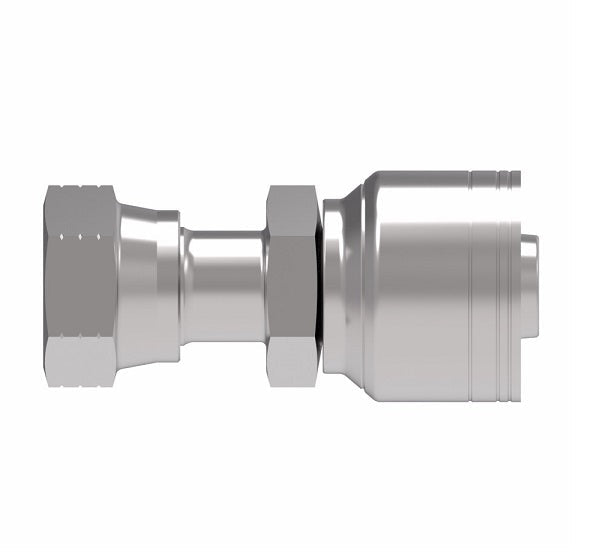

1A12FR12TZ Aeroquip by Danfoss | Female ORS Swivel (FR) Crimp Fitting | -12 Female O-Ring Face Seal Swivel x -12 Hose Barb | Zinc-Nickel Plated Steel

1A12FR12TZ Aeroquip by Danfoss | Female ORS Swivel (FR) Crimp Fitting | -12 Female O-Ring Face Seal Swivel x -12 Hose Barb | Zinc-Nickel Plated Steel

Name: 1A12FR12TZ Aeroquip by Danfoss | Female ORS Swivel (FR) Crimp Fitting | -12 Female O-Ring Face Seal Swivel x -12 Hose Barb | Zinc-Nickel Plated Steel
Brand: Danfoss/Eaton
SKU: 1A12FR12TZ Danfoss
Price: 46.53 USD
Availability: InStock

$46.53 - $46.53

$46.53

$46.53 - $46.53

$46.53

Aeroquip® by Danfoss
Female O-Ring Face Seal Swivel (FR) Crimp Fitting - Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 1A12FR12TZ Danfoss
Shape (Orientation):	Straight
Ends Configuration:	3/4in Female O-Ring Face Seal, 3/4in Hose Barb
Material(s):	Zinc-Nickel Plated Steel
Special Properties:	Swivel

Technical Info:
Crimp Fitting Socket Data.PDF

Steel Part Number	Zinc-Nickel Plated Steel Part Number	Hose Dash Size	End Size	Compatible Hose ID	Inside Diameter	Length
-	1A4FR6TZ	-06	9/16"	0.38"	0.17"	2.33"
-	1A6FR4TZ	-04	-	-	-	-
-	1A6FR6TZ	-06	11/16"	0.38"	0.26"	2.46"
-	1A8FR6TZ	-06	13/16"	0.38"	0.26"	2.58"
-	1A8FR8TZ	-08	13/16"	0.50"	0.36"	3.03"
-	1A10FR10TZ	-10	-	-	-	-
-	1A12FR10TZ	-10	1-3/16"	0.63"	0.50"	3.26"
-	1A12FR12TZ	-12	1-3/16"	0.75"	0.61"	3.36"
1A16FR20	-	-20	1-7/16"	1.25"	1.05"	4.58"
1A20FR16	-	-16	1-11/16"	1.00"	0.81	3.83"
1A20FR20	-	-20	1-11/16"	1.25"	1.05"	4.47"
1A24FR20	-	-20	-	-	-	-
