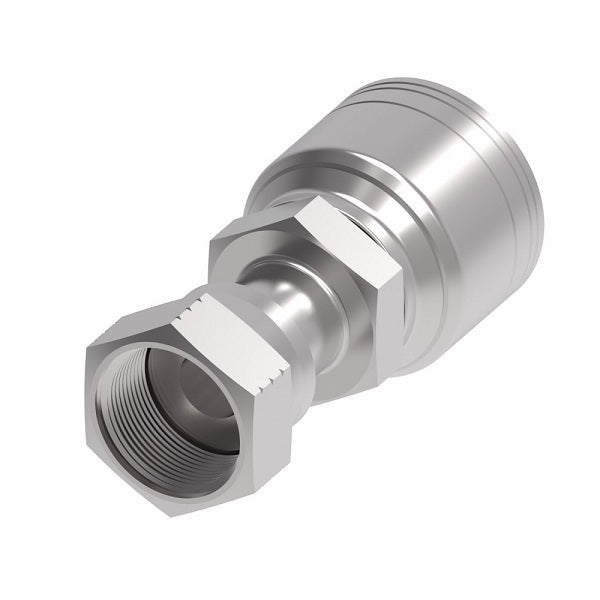

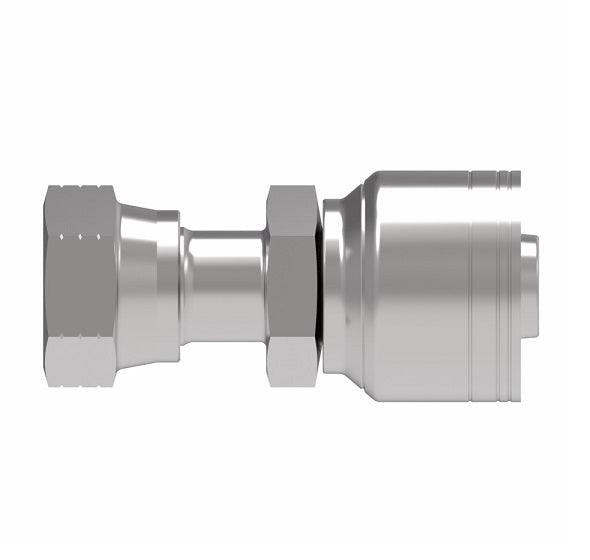

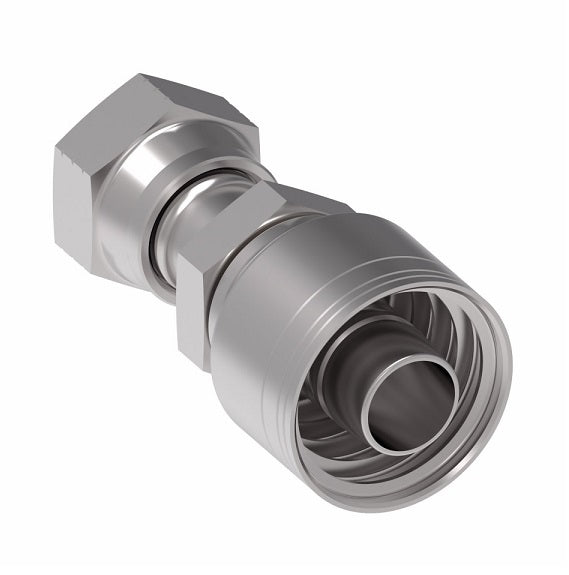

1A8FR8TZ Aeroquip by Danfoss | Female ORS Swivel (FR) Crimp Fitting | -08 Female O-Ring Face Seal Swivel x -08 Hose Barb | Zinc-Nickel Plated Steel

1A8FR8TZ Aeroquip by Danfoss | Female ORS Swivel (FR) Crimp Fitting | -08 Female O-Ring Face Seal Swivel x -08 Hose Barb | Zinc-Nickel Plated Steel

Name: 1A8FR8TZ Aeroquip by Danfoss | Female ORS Swivel (FR) Crimp Fitting | -08 Female O-Ring Face Seal Swivel x -08 Hose Barb | Zinc-Nickel Plated Steel
Brand: Danfoss/Eaton
SKU: 1A8FR8TZ Danfoss
Price: 25.48 USD
Availability: InStock

$25.48 - $25.48

$25.48

$25.48 - $25.48

$25.48

Aeroquip® by Danfoss
Female O-Ring Face Seal Swivel (FR) Crimp Fitting - Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 1A8FR8TZ Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1/2in Female O-Ring Face Seal, 1/2in Hose Barb
Material(s):	Zinc-Nickel Plated Steel
Special Properties:	Swivel

Technical Info:
Crimp Fitting Socket Data.PDF

Steel Part Number	Zinc-Nickel Plated Steel Part Number	Hose Dash Size	End Size	Compatible Hose ID	Inside Diameter	Length
-	1A4FR6TZ	-06	9/16"	0.38"	0.17"	2.33"
-	1A6FR4TZ	-04	-	-	-	-
-	1A6FR6TZ	-06	11/16"	0.38"	0.26"	2.46"
-	1A8FR6TZ	-06	13/16"	0.38"	0.26"	2.58"
-	1A8FR8TZ	-08	13/16"	0.50"	0.36"	3.03"
-	1A10FR10TZ	-10	-	-	-	-
-	1A12FR10TZ	-10	1-3/16"	0.63"	0.50"	3.26"
-	1A12FR12TZ	-12	1-3/16"	0.75"	0.61"	3.36"
1A16FR20	-	-20	1-7/16"	1.25"	1.05"	4.58"
1A20FR16	-	-16	1-11/16"	1.00"	0.81	3.83"
1A20FR20	-	-20	1-11/16"	1.25"	1.05"	4.47"
1A24FR20	-	-20	-	-	-	-

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
