Aeroquip® by Danfoss

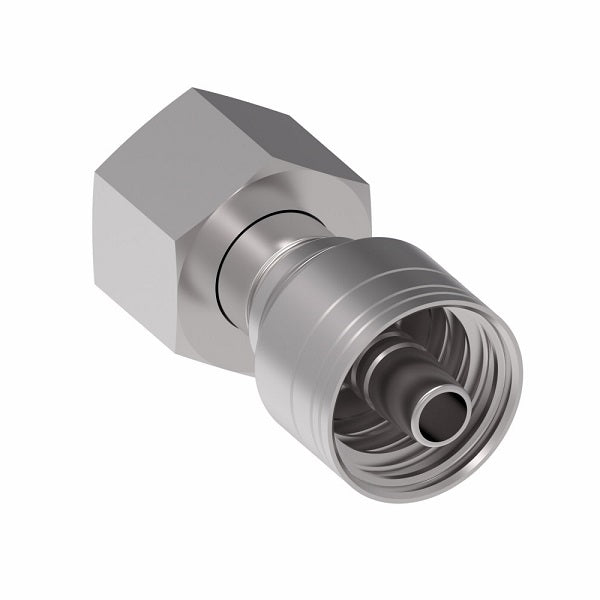

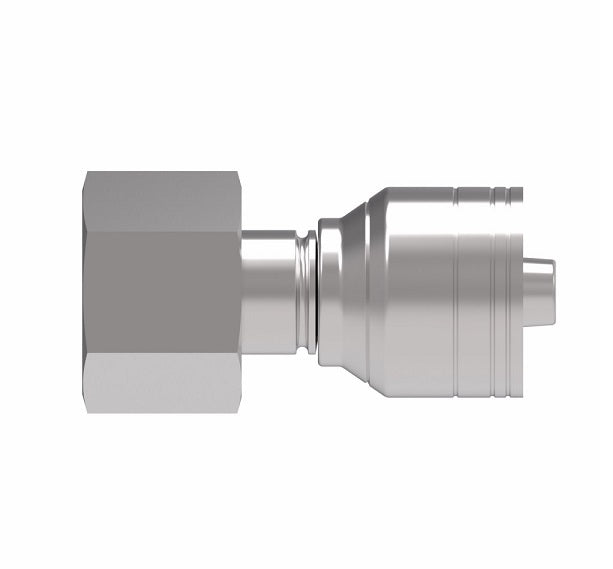

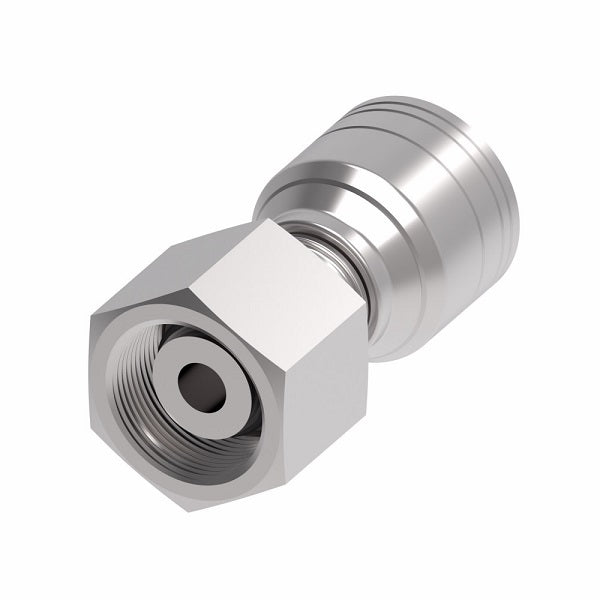

1 & 2 Wire TTC DKO/DIN Female Swivel, Heavy Duty Crimp Fitting (DS) - Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 1A16DS10 Danfoss
Shape (Orientation):	Straight
Ends Configuration:	S20 Female DIN, 5/8in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	2661 Series \| FC310 Series \| FC510 Series \| FC579 Series \| FC611 Series \| FC619 Series \| FC639 Series \| FC839B Series \| FC693 Series \| FC735 Series \| FC849 Series \| FC849B Series \| GH120 Series \| GH194 Series \| GH195 Series \| GH663 Series \| GH681 Series \| GH781 Series \| GH793 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Thread T	Tube OD	Hose Size	A	D	E&Oslash	Hex 1
1A5DS4	M16 x 1.5	8	-04	1.95"	1.03"	0.16"	0.75"
1A6DS4	M18 X 1.5	10	-04	2.00"	1.08"	0.16"	0.87"
1A8DS4	M20 X 1.5	12	-04	2.00"	1.08"	0.17"	0.94"
1A6DS6	M18 X 1.5	10	-06	2.08"	1.09"	0.26"	1.06"
1A8DS6	M20 x 1.5	12	-06	2.12"	1.12"	0.26"	0.94"
1A10DS6	M22 x 1.5	14	-06	2.24"	1.24"	0.26"	1.06"
1A10DS8	M22 x 1.5	14	-08	2.17"	1.00"	0.38"	1.06"
1A12DS8	M24 x 1.5	16	-08	2.46"	1.29"	0.38"	1.18"
1A16DS10	M30 x 2	20	-10	2.63"	1.48"	0.50"	1.42"
1A16DS12	M30 x 2	20	-12	2.37"	1.19"	0.55"	1.42"
1A20DS12	M36 x 2	25	-12	2.83"	1.64"	0.61"	1.81"
1A25DS16	M42 x 2	30	-16	3.09"	1.44"	0.81"	1.97"
1A32DS20	M52 x 2	38	-20	3.69"	1.96"	1.05"	2.36"
