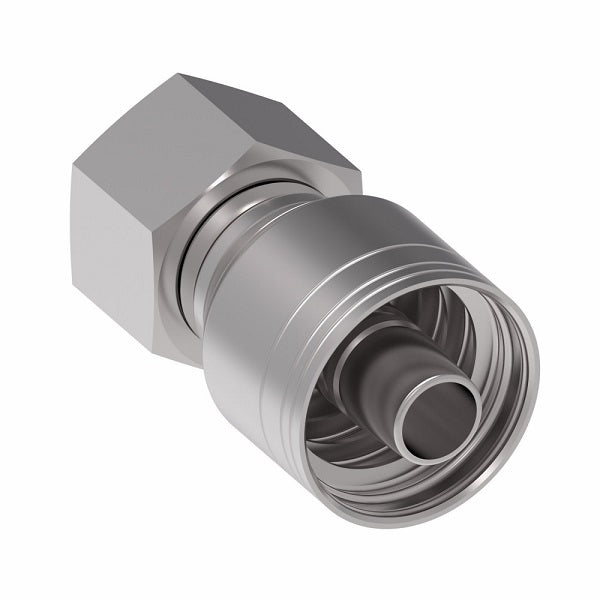

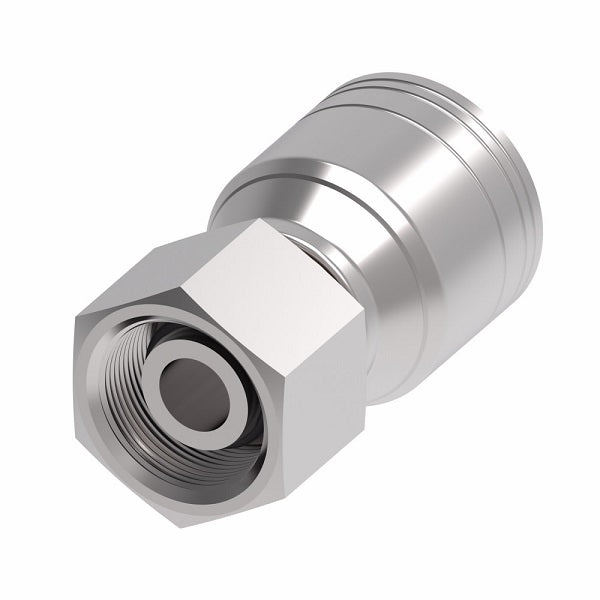

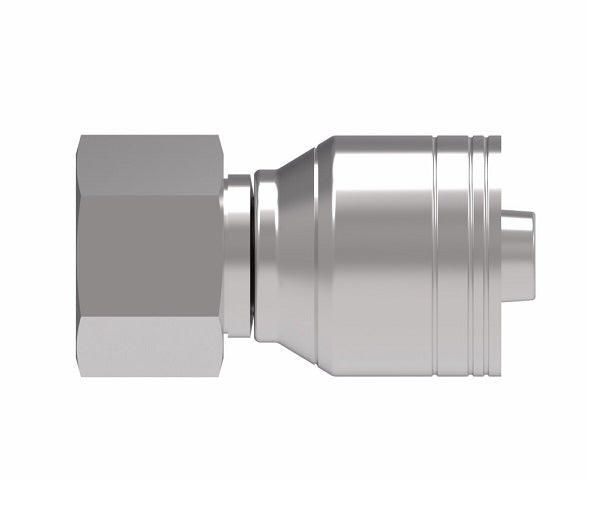

1A16DS12 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO Female Swivel, Heavy Duty (DS) Crimp Fitting | S20 Female DKO/DIN x -12 Hose Barb | Steel

1A16DS12 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO Female Swivel, Heavy Duty (DS) Crimp Fitting | S20 Female DKO/DIN x -12 Hose Barb | Steel

Name: 1A16DS12 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO Female Swivel, Heavy Duty (DS) Crimp Fitting | S20 Female DKO/DIN x -12 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 1A16DS12 Danfoss
Price: 80.88 USD
Availability: InStock

$80.88 - $80.88

$80.88

$80.88 - $80.88

$80.88

Aeroquip® by Danfoss
1 & 2 Wire TTC DKO/DIN Female Swivel, Heavy Duty Crimp Fitting (DS) - Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 1A16DS12 Danfoss
Shape (Orientation):	Straight
Ends Configuration:	S20 Female DIN, 3/4in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	2661 Series \| FC310 Series \| FC510 Series \| FC579 Series \| FC611 Series \| FC619 Series \| FC639 Series \| FC839B Series \| FC693 Series \| FC735 Series \| FC849 Series \| FC849B Series \| GH120 Series \| GH194 Series \| GH195 Series \| GH663 Series \| GH681 Series \| GH781 Series \| GH793 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Thread T	Tube OD	Hose Size	A	D	E&Oslash	Hex 1
1A5DS4	M16 x 1.5	8	-04	1.95"	1.03"	0.16"	0.75"
1A6DS4	M18 X 1.5	10	-04	2.00"	1.08"	0.16"	0.87"
1A8DS4	M20 X 1.5	12	-04	2.00"	1.08"	0.17"	0.94"
1A6DS6	M18 X 1.5	10	-06	2.08"	1.09"	0.26"	1.06"
1A8DS6	M20 x 1.5	12	-06	2.12"	1.12"	0.26"	0.94"
1A10DS6	M22 x 1.5	14	-06	2.24"	1.24"	0.26"	1.06"
1A10DS8	M22 x 1.5	14	-08	2.17"	1.00"	0.38"	1.06"
1A12DS8	M24 x 1.5	16	-08	2.46"	1.29"	0.38"	1.18"
1A16DS10	M30 x 2	20	-10	2.63"	1.48"	0.50"	1.42"
1A16DS12	M30 x 2	20	-12	2.37"	1.19"	0.55"	1.42"
1A20DS12	M36 x 2	25	-12	2.83"	1.64"	0.61"	1.81"
1A25DS16	M42 x 2	30	-16	3.09"	1.44"	0.81"	1.97"
1A32DS20	M52 x 2	38	-20	3.69"	1.96"	1.05"	2.36"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
