1A6FRC6TZ Aeroquip by Danfoss | Female ORS Swivel Long Drop 90° Elbow (FRC) Crimp Fitting | -06 Female O-Ring Face Seal Swivel x -06 Hose Barb | Zinc-Nickel Plated Steel

1A6FRC6TZ Aeroquip by Danfoss | Female ORS Swivel Long Drop 90° Elbow (FRC) Crimp Fitting | -06 Female O-Ring Face Seal Swivel x -06 Hose Barb | Zinc-Nickel Plated Steel

Name: 1A6FRC6TZ Aeroquip by Danfoss | Female ORS Swivel Long Drop 90° Elbow (FRC) Crimp Fitting | -06 Female O-Ring Face Seal Swivel x -06 Hose Barb | Zinc-Nickel Plated Steel
Brand: Danfoss/Eaton
SKU: 1A6FRC6TZ Danfoss
Price: 43.08 USD
Availability: InStock

$43.08 - $43.08

$43.08

$43.08 - $43.08

$43.08

Aeroquip® by Danfoss

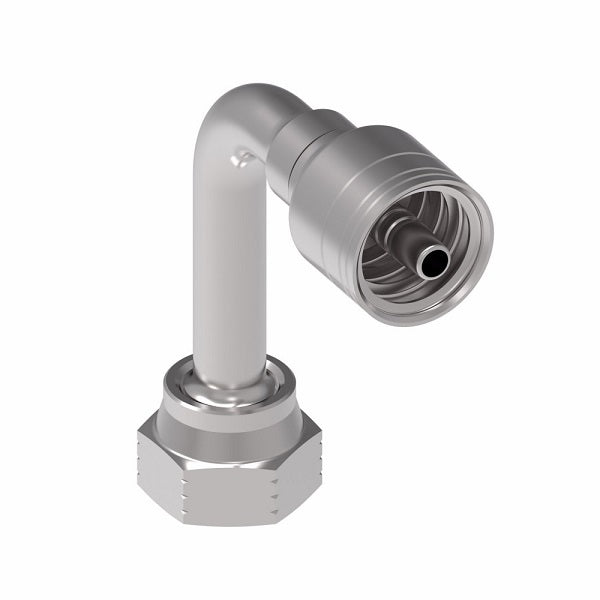

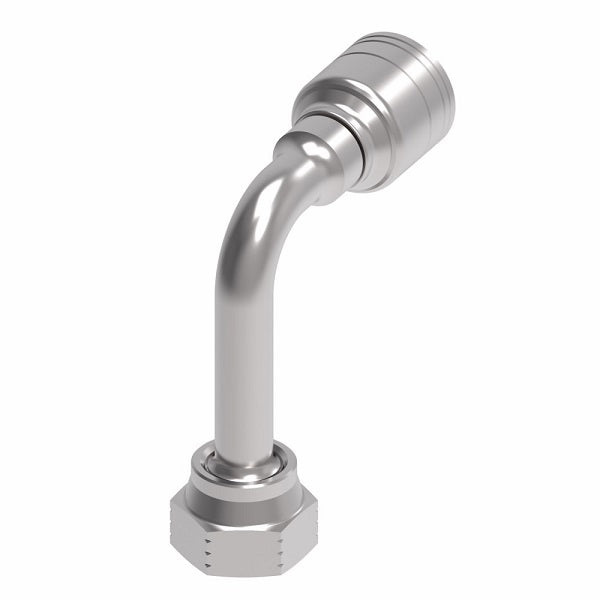

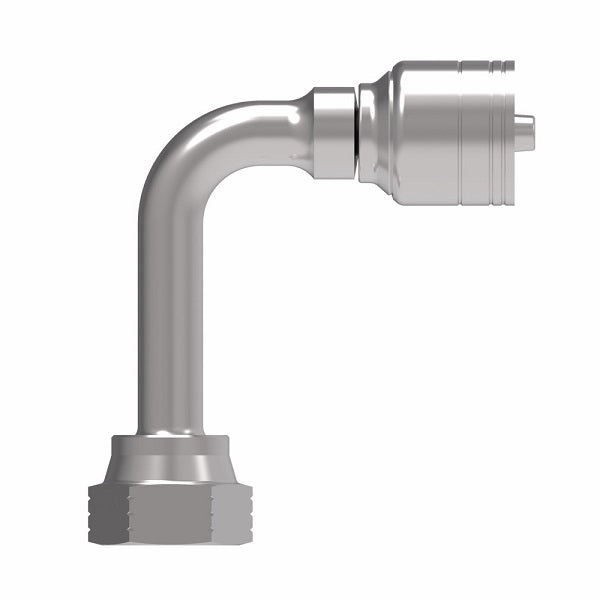

Female O-Ring Face Seal Swivel Long Drop (FRC) Crimp Fitting - 90° Elbow

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 1A6FRC6TZ Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	3/8in Female O-Ring Face Seal, 3/8in Hose Barb
Material(s):	Zinc-Nickel Plated Steel
Special Properties:	Long Drop, Swivel

Technical Info:
Crimp Fitting Socket Data.PDF

Steel Part Number	Zinc-Nickel Plated Steel Part Number	Hose Dash Size	End Size	Compatible Hose ID	Inside Diameter	Length
-	1A6FRC6TZ	-06
-	1A8FRC8TZ	-08	13/16"	0.50"	0.35"	3.16"
1A10FRC10	-	-10	1"	0.625"	0.45"	3.69"
1A12FRC12	-	-12	1-3/16"	0.75"	0.58"	4.33"
1A20FRC20	-	-20	1-11/16"	1.25"	1.02"	6.28"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
