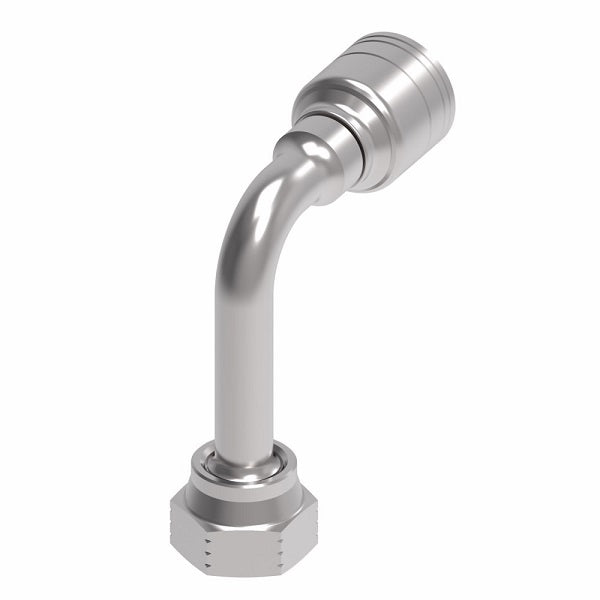

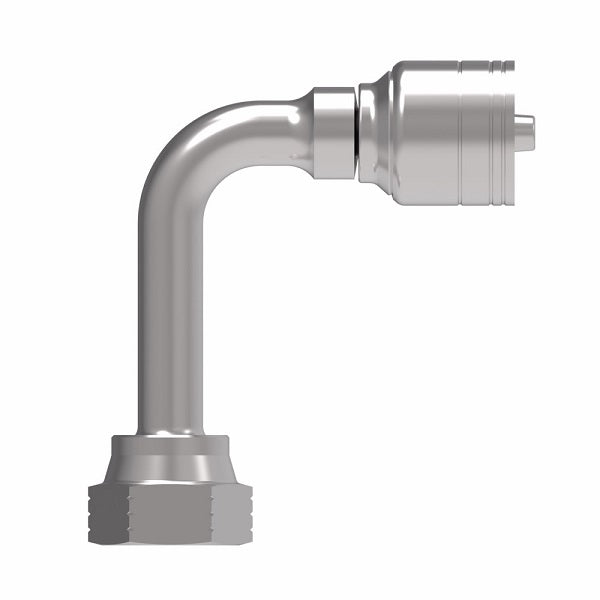

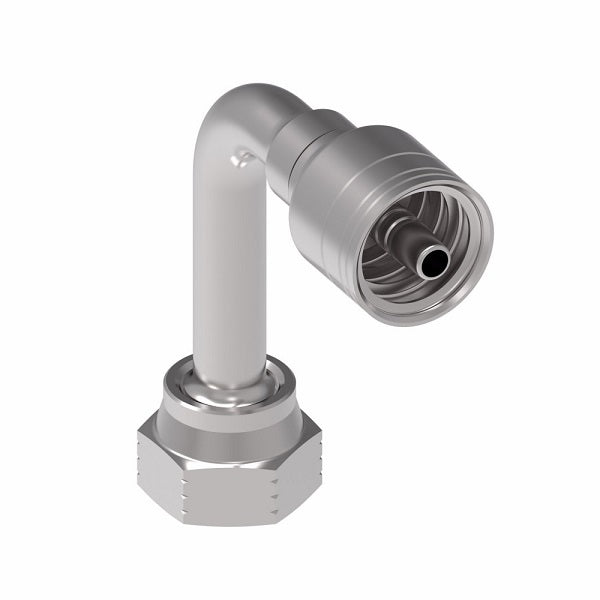

1A8FRC8TZ Aeroquip by Danfoss | Female ORS Swivel Long Drop 90° Elbow (FRC) Crimp Fitting | -08 Female O-Ring Face Seal Swivel x -08 Hose Barb | Zinc-Nickel Plated Steel

1A8FRC8TZ Aeroquip by Danfoss | Female ORS Swivel Long Drop 90° Elbow (FRC) Crimp Fitting | -08 Female O-Ring Face Seal Swivel x -08 Hose Barb | Zinc-Nickel Plated Steel

Name: 1A8FRC8TZ Aeroquip by Danfoss | Female ORS Swivel Long Drop 90° Elbow (FRC) Crimp Fitting | -08 Female O-Ring Face Seal Swivel x -08 Hose Barb | Zinc-Nickel Plated Steel
Brand: Danfoss/Eaton
SKU: 1A8FRC8TZ Danfoss
Price: 52.52 USD
Availability: InStock

$52.52 - $52.52

$52.52

$52.52 - $52.52

$52.52

Aeroquip® by Danfoss
Female O-Ring Face Seal Swivel Long Drop (FRC) Crimp Fitting - 90° Elbow

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 1A8FRC8TZ Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	1/2in Female O-Ring Face Seal, 1/2in Hose Barb
Material(s):	Zinc-Nickel Plated Steel
Special Properties:	Long Drop, Swivel
Compatible with the following Series:	2661 Series \| FC310 Series \| FC510 Series \| FC579 Series \| FC611 Series \| FC619 Series \| FC639/FC839B Series \| FC693 Series \| FC735 Series \| FC849/FC849B Series \| GH120 Series \| GH194 Series \| GH195 Series \| GH663 Series \| GH681 Series \| GH781 Series \| GH793 Series

Technical Info:
Crimp Fitting Socket Data.PDF

Steel Part Number	Zinc-Nickel Plated Steel Part Number	Hose Dash Size	End Size	Compatible Hose ID	Inside Diameter	Length
-	1A6FRC6TZ	-06
-	1A8FRC8TZ	-08	13/16"	0.50"	0.35"	3.16"
1A10FRC10	-	-10	1"	0.625"	0.45"	3.69"
1A12FRC12	-	-12	1-3/16"	0.75"	0.58"	4.33"
1A20FRC20	-	-20	1-11/16"	1.25"	1.02"	6.28"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.

Shop Parts by Danfoss (Eaton - Aeroquip)
