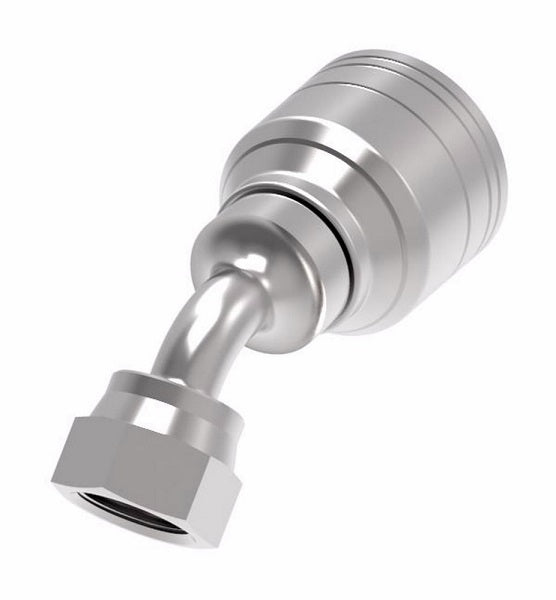

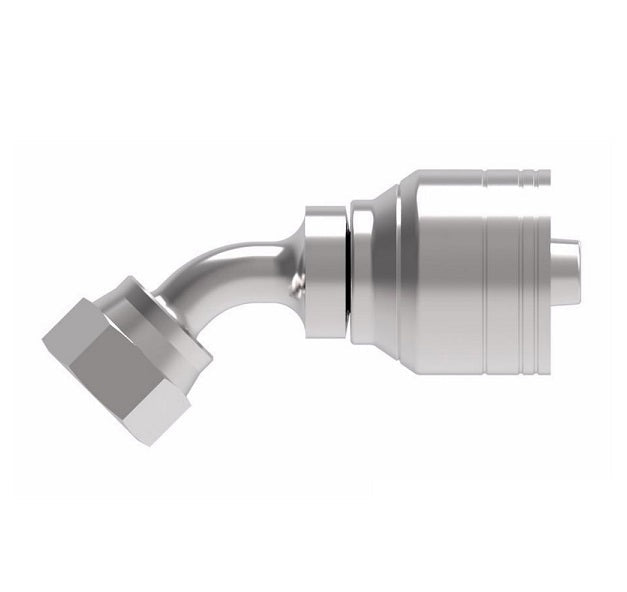

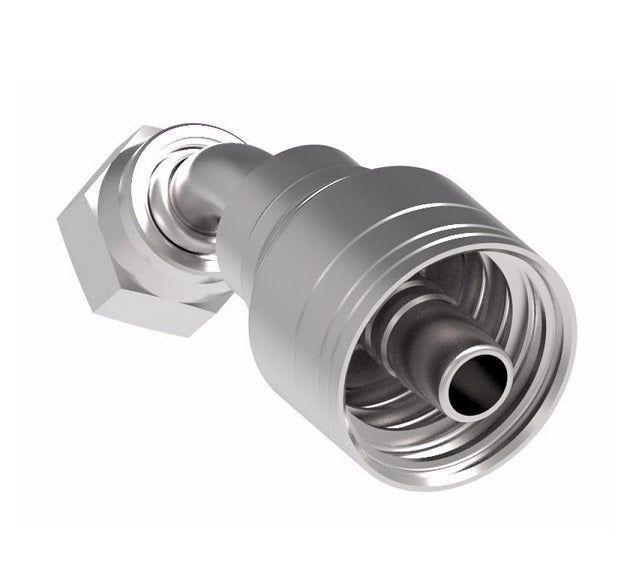

Name: 1AA10FRA8 Aeroquip by Danfoss | 1 & 2 Wire TTC Female ORS Swivel 45° Elbow (FRA) Crimp Fitting | -10 Female O-Ring Face Seal Swivel x -08 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 1AA10FRA8 Danfoss
Price: 42.31 USD
Availability: InStock

$42.31 - $42.31

$42.31

$42.31 - $42.31

$42.31

Aeroquip® by Danfoss
1 & 2 Wire TTC Female O-Ring Face Seal (ORS) Swivel Crimp Fitting (FRA) - 45° Elbow

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 1AA10FRA8 Danfoss
Brand:	Aeroquip, MatchMate
Series:	1AA MatchMate Series
Shape (Orientation):	45 Degree
Ends Configuration:	5/8in Female O-Ring Face Seal, 1/2in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	2661 Series \| FC310 Series \| FC510 Series \| FC579 Series \| FC611 Series \| FC619 Series \| FC639 Series \| FC839B Series \| FC693 Series \| FC735 Series \| FC849 Series \| FC849B Series \| GH120 Series \| GH194 Series \| GH195 Series \| GH663 Series \| GH681 Series \| GH781 Series \| GH793 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Zinc-Nickel Plated Steel Part Number	Thread	Hose Size	A	D	EØ	H	Hex 1
1AA4FRA4	-	9/16-18	-04	2.12"	1.20"	0.17"	0.14"	11/16"
1AA6FRA4	-	11/16-16	-04	2.30"	1.38"	0.17"	0.43"	13/16"
1AA4FRA6	-	9/16-18	-06	2.14"	1.30"	0.17"	0.41"	11/16"
1AA6FRA6	-	11/16-16	-06	2.36"	1.43"	0.24"	0.43"	13/16"
1AA8FRA6	-	13/16-16	-06	2.58"	1.74"	0.26"	0.59"	15/16"
1AA6FRA8	-	11/16-16	-08	2.65"	1.48"	0.26"	0.43"	13/16"
1AA8FRA8	-	13/16-16	-08	3.00"	1.79"	0.33"	0.59"	15/16"
1AA10FRA8	-	1-14	-08	3.08"	2.01"	0.38"	0.65"	1-1/8"
1AA12FRA8	-	1-3/16-12	-08	3.51"	2.34"	0.38"	0.83"	1-3/8"
1AA10FRA10	-	1-14	-10	3.18"	2.02"	0.44"	0.65"	1-1/8"
1AA12FRA10	-	1-3/16-12	-10	3.39"	2.36"	0.50"	0.83"	1-3/8"
1AA10FRA12	-	1-14	-12	3.09"	2.04"	0.45"	0.65"	1-1/8"
1AA12FRA12	-	1-3/16-12	-12	3.57"	2.38"	0.55"	0.83"	1-3/8"
1AA16FRA12	-	1-7/16-12	-12	4.04"	2.85"	0.61"	0.94"	1-5/8"
1AA12FRA16	-	1-3/16-12	-16	3.72"	2.40"	0.55"	0.83"	1-3/8"
1AA16FRA16	1AA16FRA16TZ	1-7/16-12	-16	4.23"	2.88"	0.81"	0.94"	1-5/8"
1AA16FRA20	-	1-7/16-12	-20	-	-	-	-	-
1AA20FRA16	-	1-11/16-12	-16	4.62"	3.30"	0.81"	1.00"	1-7/8"
1AA20FRA20	-	1-11/16-12	-20	5.10"	3.37"	1.02"	1.00"	1-7/8"
1AA24FRA20	-	2-12	-20	5.49"	3.76"	1.01"	1.07"	2-1/4"
1AA24FRA24	-	2-12	-24	4.54"	2.71"	1.26"	1.07"	2-1/4"
