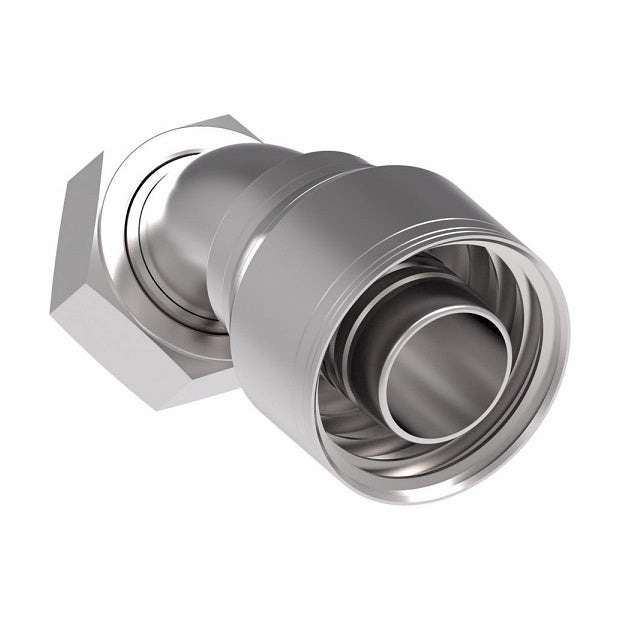

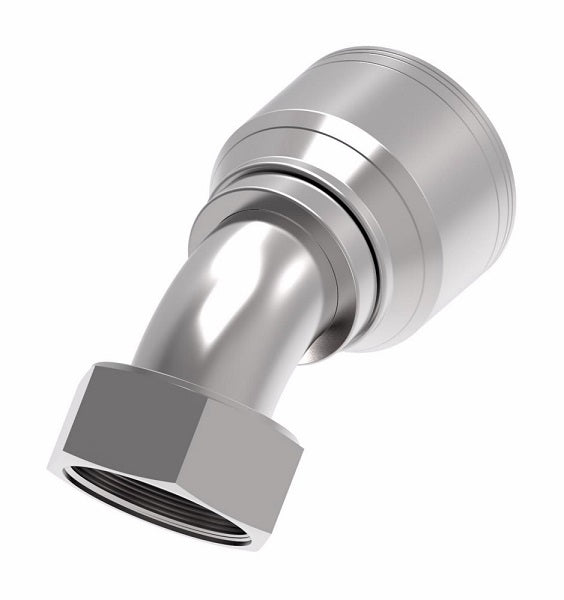

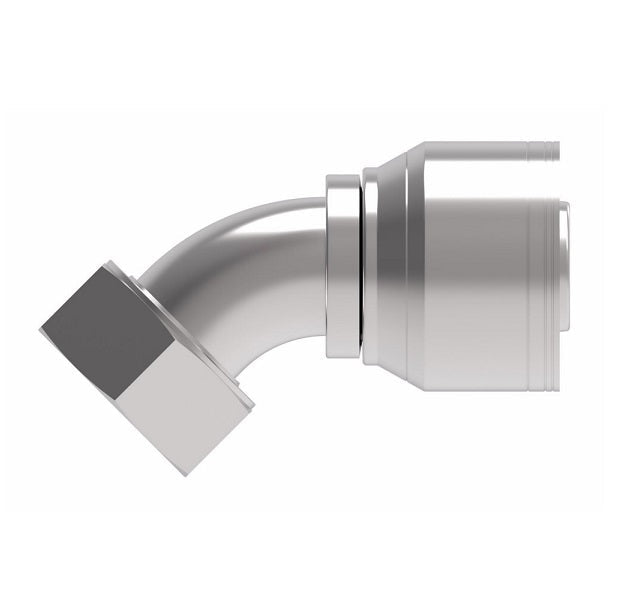

1AA24FRA20 Aeroquip by Danfoss | 1 & 2 Wire TTC Female ORS Swivel 45° Elbow (FRA) Crimp Fitting | -24 Female O-Ring Face Seal Swivel  x -20 Hose Barb | Steel
1AA24FRA20 Aeroquip by Danfoss | 1 & 2 Wire TTC Female ORS Swivel 45° Elbow (FRA) Crimp Fitting | -24 Female O-Ring Face Seal Swivel  x -20 Hose Barb | Steel
1AA24FRA20 Aeroquip by Danfoss | 1 & 2 Wire TTC Female ORS Swivel 45° Elbow (FRA) Crimp Fitting | -24 Female O-Ring Face Seal Swivel  x -20 Hose Barb | Steel
1AA24FRA20 Aeroquip by Danfoss | 1 & 2 Wire TTC Female ORS Swivel 45° Elbow (FRA) Crimp Fitting | -24 Female O-Ring Face Seal Swivel  x -20 Hose Barb | Steel

1AA24FRA20 Aeroquip by Danfoss | 1 & 2 Wire TTC Female ORS Swivel 45° Elbow (FRA) Crimp Fitting | -24 Female O-Ring Face Seal Swivel  x -20 Hose Barb | Steel

$179.07 - $179.07
$179.07
$179.07 - $179.07
$179.07

Aeroquip® by Danfoss
1 & 2 Wire TTC Female O-Ring Face Seal (ORS) Swivel Crimp Fitting (FRA) - 45° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 1AA24FRA20 Danfoss
Brand: Aeroquip, MatchMate
Series: 1AA MatchMate Series
Shape (Orientation): 45 Degree
Ends Configuration: 1-1/2in Female O-Ring Face Seal, 1-1/4in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: 2661 Series  |   FC310 Series  |   FC510 Series  |   FC579 Series  |   FC611 Series  |   FC619 Series  |   FC639 Series  |   FC839B Series  |   FC693 Series  |   FC735 Series  |   FC849 Series  |   FC849B Series  |   GH120 Series  |   GH194 Series  |   GH195 Series  |   GH663 Series  |   GH681 Series  |   GH781 Series  |   GH793 Series
Technical Info:
Steel
Part Number 		Zinc-Nickel Plated Steel
Part Number 		Thread Hose Size A D EØ H Hex 1
1AA4FRA4 - 9/16-18 -04 2.12" 1.20" 0.17" 0.14" 11/16"
1AA6FRA4 - 11/16-16 -04 2.30" 1.38" 0.17" 0.43" 13/16"
1AA4FRA6 - 9/16-18 -06 2.14" 1.30" 0.17" 0.41" 11/16"
1AA6FRA6 - 11/16-16 -06 2.36" 1.43" 0.24" 0.43" 13/16"
1AA8FRA6 - 13/16-16 -06 2.58" 1.74" 0.26" 0.59" 15/16"
1AA6FRA8 - 11/16-16 -08 2.65" 1.48" 0.26" 0.43" 13/16"
1AA8FRA8 - 13/16-16 -08 3.00" 1.79" 0.33" 0.59" 15/16"
1AA10FRA8 - 1-14 -08 3.08" 2.01" 0.38" 0.65" 1-1/8"
1AA12FRA8 - 1-3/16-12 -08 3.51" 2.34" 0.38" 0.83" 1-3/8"
1AA10FRA10 - 1-14 -10 3.18" 2.02" 0.44" 0.65" 1-1/8"
1AA12FRA10 - 1-3/16-12 -10 3.39" 2.36" 0.50" 0.83" 1-3/8"
1AA10FRA12 - 1-14 -12 3.09" 2.04" 0.45" 0.65" 1-1/8"
1AA12FRA12 - 1-3/16-12 -12 3.57" 2.38" 0.55" 0.83" 1-3/8"
1AA16FRA12 - 1-7/16-12 -12 4.04" 2.85" 0.61" 0.94" 1-5/8"
1AA12FRA16 - 1-3/16-12 -16 3.72" 2.40" 0.55" 0.83" 1-3/8"
1AA16FRA16 1AA16FRA16TZ 1-7/16-12 -16 4.23" 2.88" 0.81" 0.94" 1-5/8"
1AA16FRA20 - 1-7/16-12 -20 - - - - -
1AA20FRA16 - 1-11/16-12 -16 4.62" 3.30" 0.81" 1.00" 1-7/8"
1AA20FRA20 - 1-11/16-12 -20 5.10" 3.37" 1.02" 1.00" 1-7/8"
1AA24FRA20 - 2-12 -20 5.49" 3.76" 1.01" 1.07" 2-1/4"
1AA24FRA24 - 2-12 -24 4.54" 2.71" 1.26" 1.07" 2-1/4"
