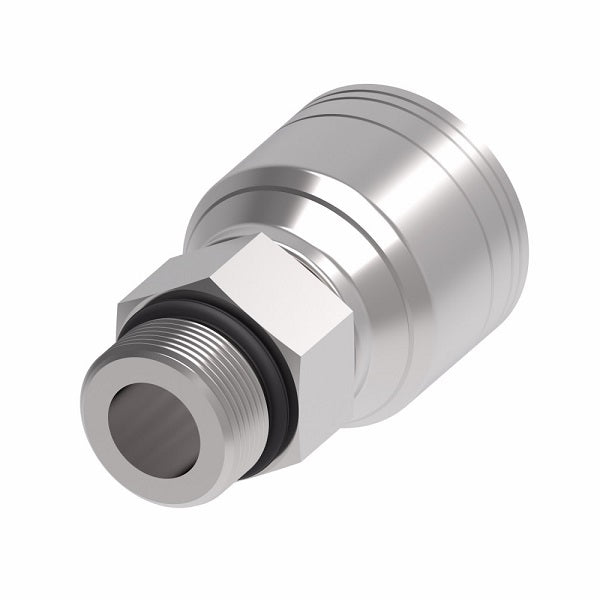

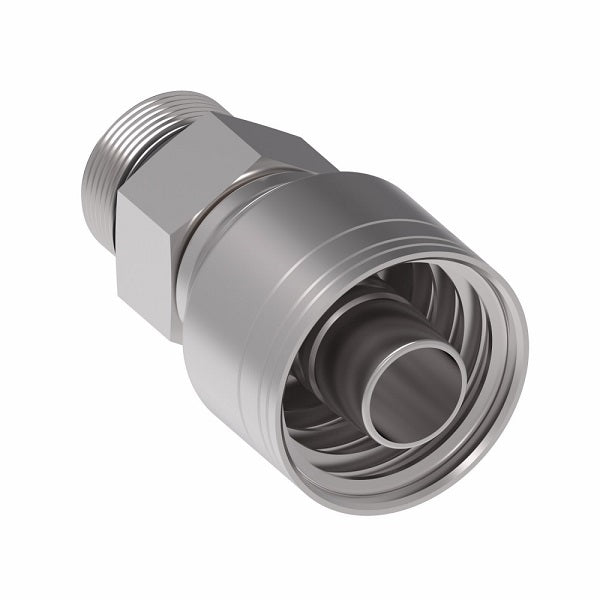

1AA10MB8 Aeroquip by Danfoss | 1 & 2 Wire TTC Male Boss O-Ring (MB) Crimp Fitting | -10 Male Boss O-Ring x -08 Hose Barb | Steel

1AA10MB8 Aeroquip by Danfoss | 1 & 2 Wire TTC Male Boss O-Ring (MB) Crimp Fitting | -10 Male Boss O-Ring x -08 Hose Barb | Steel | Pack of 10

$171.61 - $171.61

$171.61

$171.61 - $171.61

$171.61

Aeroquip® by Danfoss
1 & 2 Wire Global TTC Male Boss O-Ring Crimp Fitting (MB) - Straight

(Formerly Eaton Aeroquip)

Package Quantity: 10 Units

Specifications for Variant SKU: 1AA10MB8 Danfoss \| 10 \|
Brand:	Aeroquip, MatchMate
Series:	1AA MatchMate Series
Shape (Orientation):	Straight
Ends Configuration:	5/8in Male O-Ring Boss, 1/2in Hose Barb
Material(s):	Steel
Compatible with the following Series:	2661 Series \| FC310 Series \| FC510 Series \| FC579 Series \| FC611 Series \| FC619 Series \| FC639 Series \| FC839B Series \| FC693 Series \| FC735 Series \| FC849 Series \| FC849B Series \| GH120 Series \| GH194 Series \| GH195 Series \| GH663 Series \| GH681 Series \| GH781 Series \| GH793 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Zinc-Nickel Plated Steel Part Number	Thread	Hose Size	A	D	EØ	Hex 2
1AA4MB4	-	7/16-20	-04	1.84"	0.92"	0.17"	9/16"
1AA5MB4	-	1/2-20	-04	1.84"	0.92"	0.17"	5/8"
1AA6MB4	-	9/16-18	-04	1.78"	0.86"	0.17"	11/16"
1AA6MB6	-	9/16-18	-06	1.84"	1.00"	0.26"	11/16"
1AA8MB4	-	3/4-16	-04	-	-	-	-
1AA8MB6	1AA8MB6TZ	3/4-16	-06	1.81"	0.98"	0.26"	7/8"
1AA10MB6	-	7/8-14	-06	1.88"	1.05"	0.26"	1"
1AA8MB8	1AA8MB8TZ	3/4-16	-08	2.26"	1.19"	0.38"	7/8"
1AA10MB8	-	7/8-14	-08	2.16"	1.09"	0.38"	1"
1AA12MB8	-	1-1/16-12	-08	2.39"	1.22"	0.38"	1-1/4"
1AA8MB10	1AA8MB10TZ	3/4-16	-10	2.21"	1.19"	0.50"	15/16"
1AA10MB10	-	7/8-14	-10	2.34"	1.31"	0.50"	1"
1AA10MB12	-	7/8-14	-12	2.53"	1.46"	0.46"	1-1/8"
1AA12MB10	-	1-1/16-12	-10	2.26"	1.23"	0.50"	1-1/4"
1AA12MB12	-	1-1/16-12	-12	2.44"	1.25"	0.61"	1-1/4"
1AA16MB12	-	1-5/16-12	-12	2.56"	1.37"	0.61"	1-1/2"
1AA16MB16	-	1-5/16-12	-16	2.74"	1.39"	0.82"	1-1/2"
1AA20MB20	-	1-5/8-12	-20	3.63"	1.90"	1.05"	1-7/8"
1AA24MB24	-	1-7/8-12	-24	3.63"	1.81"	1.26"	2-1/8"
