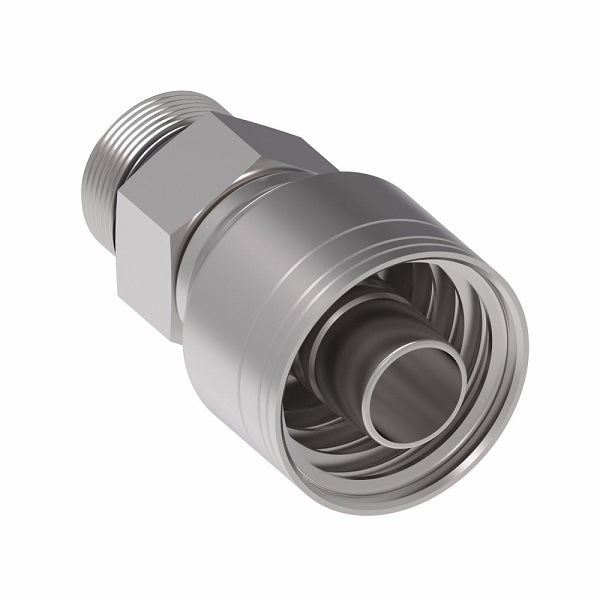

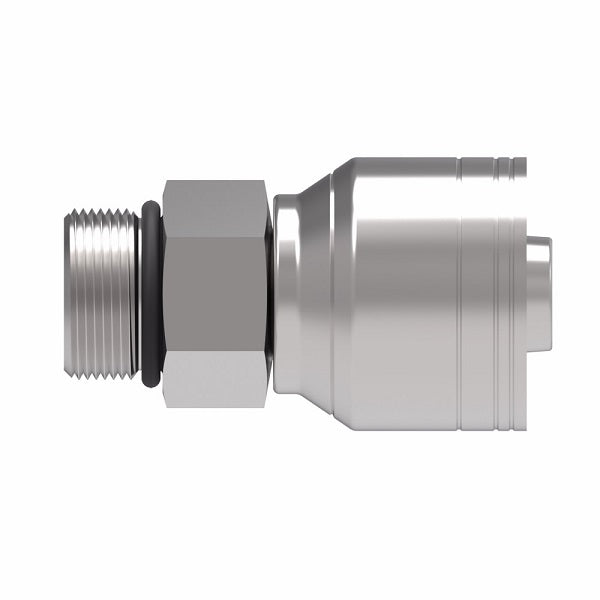

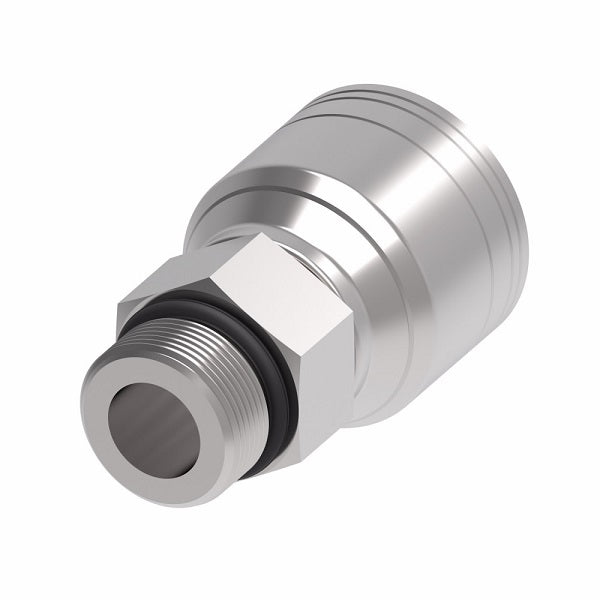

1AA8MB8 Aeroquip by Danfoss | 1 & 2 Wire TTC Male Boss O-Ring (MB) Crimp Fitting | -08 Male Boss O-Ring x -08 Hose Barb | Steel
1AA8MB8 Aeroquip by Danfoss | 1 & 2 Wire TTC Male Boss O-Ring (MB) Crimp Fitting | -08 Male Boss O-Ring x -08 Hose Barb | Steel
1AA8MB8 Aeroquip by Danfoss | 1 & 2 Wire TTC Male Boss O-Ring (MB) Crimp Fitting | -08 Male Boss O-Ring x -08 Hose Barb | Steel
1AA8MB8 Aeroquip by Danfoss | 1 & 2 Wire TTC Male Boss O-Ring (MB) Crimp Fitting | -08 Male Boss O-Ring x -08 Hose Barb | Steel

1AA8MB8 Aeroquip by Danfoss | 1 & 2 Wire TTC Male Boss O-Ring (MB) Crimp Fitting | -08 Male Boss O-Ring x -08 Hose Barb | Steel

$15.20 - $15.20
$15.20
$15.20 - $15.20
$15.20

Aeroquip® by Danfoss
1 & 2 Wire Global TTC Male Boss O-Ring Crimp Fitting (MB) - Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 1AA8MB8 Danfoss
Brand: Aeroquip, MatchMate
Series: 1AA MatchMate Series
Shape (Orientation): Straight
Ends Configuration: 1/2in Male O-Ring Boss, 1/2in Hose Barb
Material(s): Steel
Compatible with the following Series: 2661 Series  |   FC310 Series  |   FC510 Series  |   FC579 Series  |   FC611 Series  |   FC619 Series  |   FC639 Series  |   FC839B Series  |   FC693 Series  |   FC735 Series  |   FC849 Series  |   FC849B Series  |   GH120 Series  |   GH194 Series  |   GH195 Series  |   GH663 Series  |   GH681 Series  |   GH781 Series  |   GH793 Series
Technical Info:
Steel
Part Number 		Zinc-Nickel Plated Steel
Part Number 		Thread Hose Size A D EØ Hex 2
1AA4MB4 - 7/16-20 -04 1.84" 0.92" 0.17" 9/16"
1AA5MB4 - 1/2-20 -04 1.84" 0.92" 0.17" 5/8"
1AA6MB4 - 9/16-18 -04 1.78" 0.86" 0.17" 11/16"
1AA6MB6 - 9/16-18 -06 1.84" 1.00" 0.26" 11/16"
1AA8MB4 - 3/4-16 -04 - - - -
1AA8MB6 1AA8MB6TZ 3/4-16 -06 1.81" 0.98" 0.26" 7/8"
1AA10MB6 - 7/8-14 -06 1.88" 1.05" 0.26" 1"
1AA8MB8 1AA8MB8TZ 3/4-16 -08 2.26" 1.19" 0.38" 7/8"
1AA10MB8 - 7/8-14 -08 2.16" 1.09" 0.38" 1"
1AA12MB8 - 1-1/16-12 -08 2.39" 1.22" 0.38" 1-1/4"
1AA8MB10 1AA8MB10TZ 3/4-16 -10 2.21" 1.19" 0.50" 15/16"
1AA10MB10 - 7/8-14 -10 2.34" 1.31" 0.50" 1"
1AA10MB12 - 7/8-14 -12 2.53" 1.46" 0.46" 1-1/8"
1AA12MB10 - 1-1/16-12 -10 2.26" 1.23" 0.50" 1-1/4"
1AA12MB12 - 1-1/16-12 -12 2.44" 1.25" 0.61" 1-1/4"
1AA16MB12 - 1-5/16-12 -12 2.56" 1.37" 0.61" 1-1/2"
1AA16MB16 - 1-5/16-12 -16 2.74" 1.39" 0.82" 1-1/2"
1AA20MB20 - 1-5/8-12 -20 3.63" 1.90" 1.05" 1-7/8"
1AA24MB24 - 1-7/8-12 -24 3.63" 1.81" 1.26" 2-1/8"
