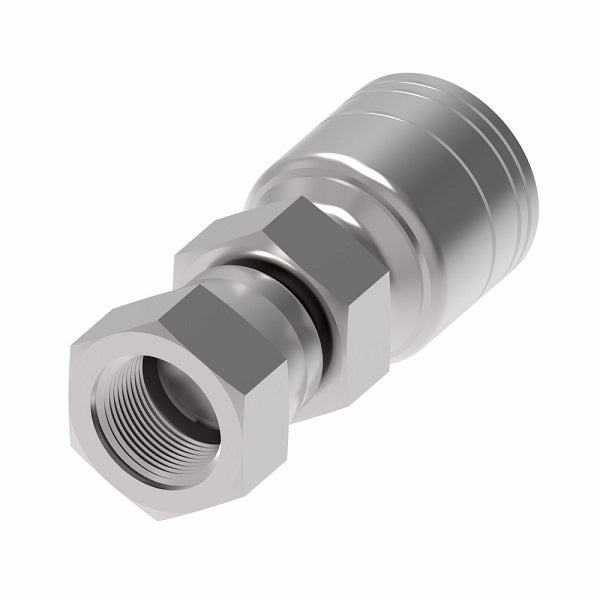

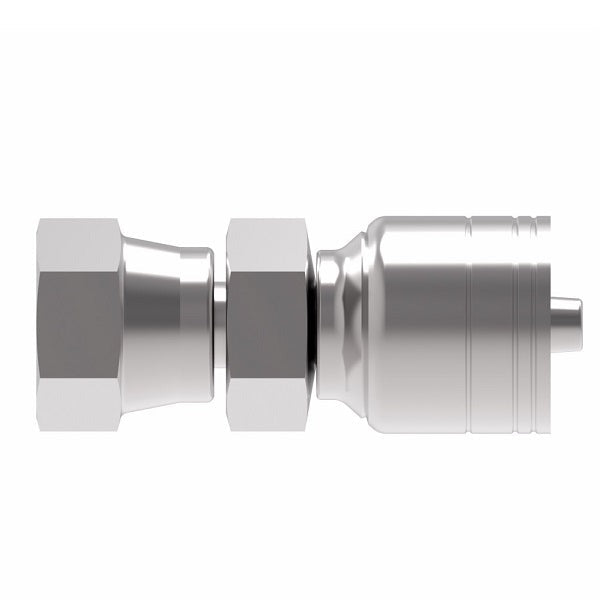

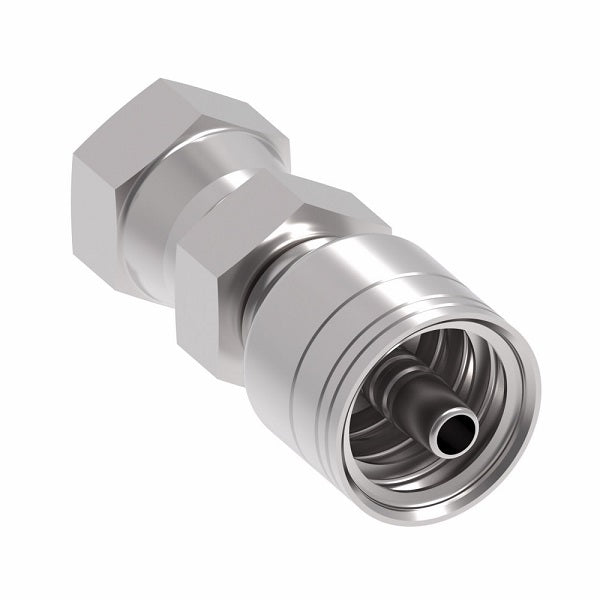

1AA12BW12 Aeroquip by Danfoss | Female BSPP Flat Face Swivel (BW) TTC Crimp Fitting | -12 Female BSPP Flat Face Swivel x -12 Hose Barb | Steel

1AA12BW12 Aeroquip by Danfoss | Female BSPP Flat Face Swivel (BW) TTC Crimp Fitting | -12 Female BSPP Flat Face Swivel x -12 Hose Barb | Steel

Name: 1AA12BW12 Aeroquip by Danfoss | Female BSPP Flat Face Swivel (BW) TTC Crimp Fitting | -12 Female BSPP Flat Face Swivel x -12 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 1AA12BW12 Danfoss
Price: 136.2 USD
Availability: InStock

$136.20 - $136.20

$136.20

$136.20 - $136.20

$136.20

Aeroquip® by Danfoss
TTC Crimp Fitting - BSPP Flat Face Female Swivel (BW) - Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 1AA12BW12 Danfoss
Brand:	Aeroquip, MatchMate
Series:	1AA MatchMate Series
Shape (Orientation):	Straight
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	3130 Series \| 3740 Series \| 3R80 Series \| 3E80 Series \| 2661 Series \| FC310 Series \| FC510 Series \| FC579 Series \| FC611 Series \| FC619 Series \| FC639/FC839B Series \| FC693 Series \| FC735 Series \| FC849/FC849B Series \| GH120 Series \| GH194 Series \| GH195 Series \| GH663 Series \| GH681 Series \| GH781 Series \| GH793 Series \| EC115 Series \| EC215 Series \| EC110 Series \| EC210 Series \| EC118 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Part Number Steel	Thread	Hose Dash Size	A	Hose Cut-OffFactor (D)	EØ	Hex 1	Hex 2
1AA6BW6	G 3/8-19	-06	2.25"	1.42"	0.26"	11/16"	3/4"
1AA8BW6	G 1/2-14	-06	2.31"	1.48"	0.26"	3/4"	1-1/16"
1AA8BW8	G 1/2-14	-08	2.63"	1.64"	0.36"	13/16"	1-1/16"
1AA12BW8	G 3/4-14	-08	2.64"	1.65"	0.38"	1"	1-1/4"
1AA12BW12	G 3/4-14	-12	2.80"	1.74"	0.61"	1-1/8"	1-1/4"

* G as part of thread size is ISO Designation for parallel thread.

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
