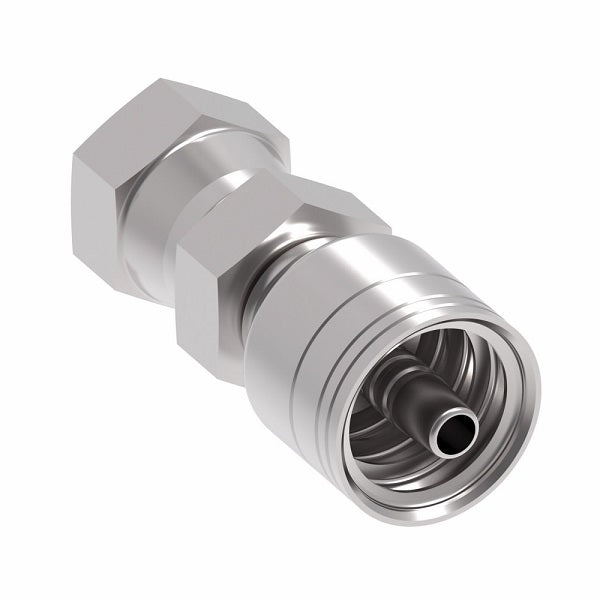

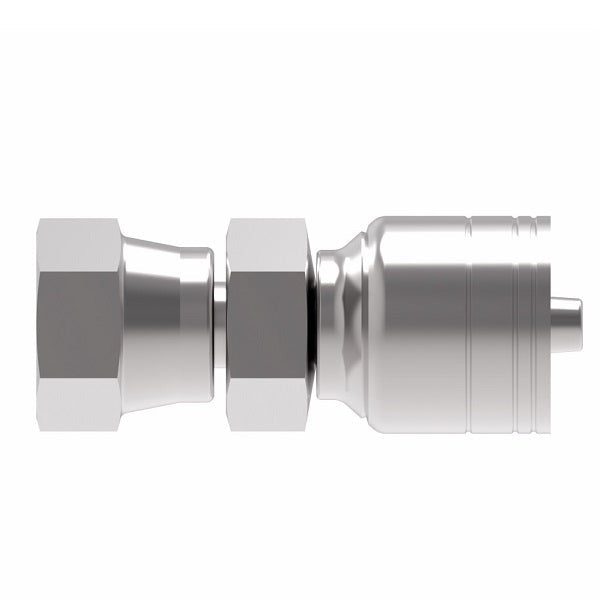

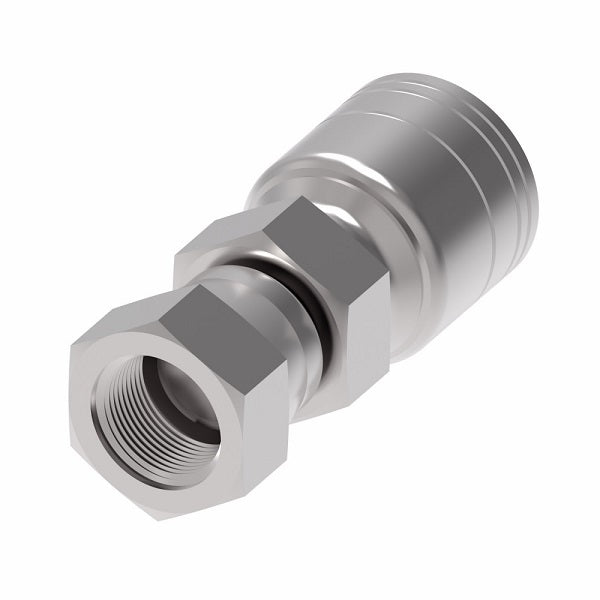

1AA12BW8 Aeroquip by Danfoss | Female BSPP Flat Face Swivel (BW) TTC Crimp Fitting | -12 Female BSPP Flat Face Swivel x -08 Hose Barb | Steel

1AA12BW8 Aeroquip by Danfoss | Female BSPP Flat Face Swivel (BW) TTC Crimp Fitting | -12 Female BSPP Flat Face Swivel x -08 Hose Barb | Steel

Name: 1AA12BW8 Aeroquip by Danfoss | Female BSPP Flat Face Swivel (BW) TTC Crimp Fitting | -12 Female BSPP Flat Face Swivel x -08 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 1AA12BW8 Danfoss
Price: 90.12 USD
Availability: InStock

$90.12 - $90.12

$90.12

$90.12 - $90.12

$90.12

Aeroquip® by Danfoss
TTC Crimp Fitting - BSPP Flat Face Female Swivel (BW) - Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 1AA12BW8 Danfoss
Brand:	Aeroquip, MatchMate
Series:	1AA MatchMate Series
Shape (Orientation):	Straight
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	3130 Series \| 3740 Series \| 3R80 Series \| 3E80 Series \| 2661 Series \| FC310 Series \| FC510 Series \| FC579 Series \| FC611 Series \| FC619 Series \| FC639/FC839B Series \| FC693 Series \| FC735 Series \| FC849/FC849B Series \| GH120 Series \| GH194 Series \| GH195 Series \| GH663 Series \| GH681 Series \| GH781 Series \| GH793 Series \| EC115 Series \| EC215 Series \| EC110 Series \| EC210 Series \| EC118 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Part Number Steel	Thread	Hose Dash Size	A	Hose Cut-OffFactor (D)	EØ	Hex 1	Hex 2
1AA6BW6	G 3/8-19	-06	2.25"	1.42"	0.26"	11/16"	3/4"
1AA8BW6	G 1/2-14	-06	2.31"	1.48"	0.26"	3/4"	1-1/16"
1AA8BW8	G 1/2-14	-08	2.63"	1.64"	0.36"	13/16"	1-1/16"
1AA12BW8	G 3/4-14	-08	2.64"	1.65"	0.38"	1"	1-1/4"
1AA12BW12	G 3/4-14	-12	2.80"	1.74"	0.61"	1-1/8"	1-1/4"

* G as part of thread size is ISO Designation for parallel thread.
