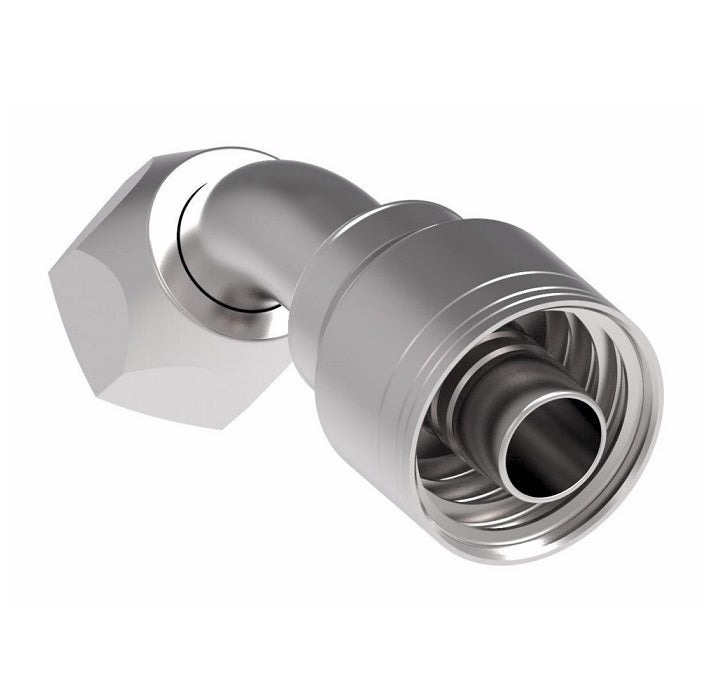

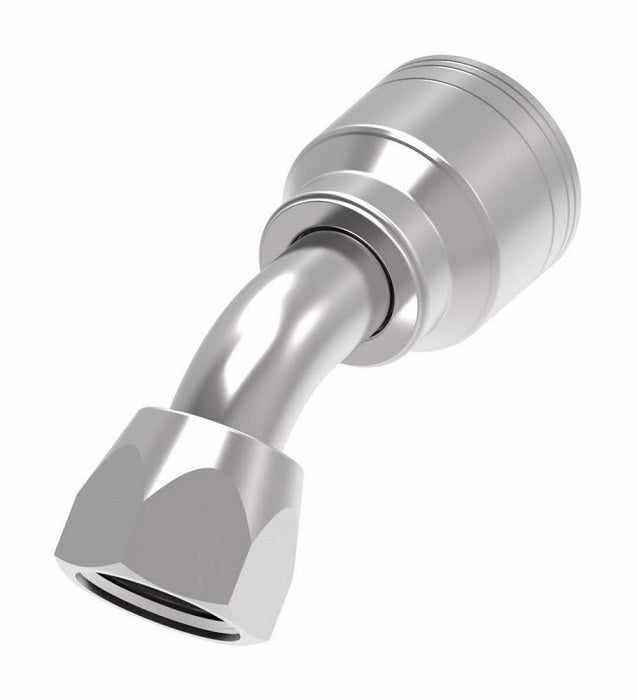

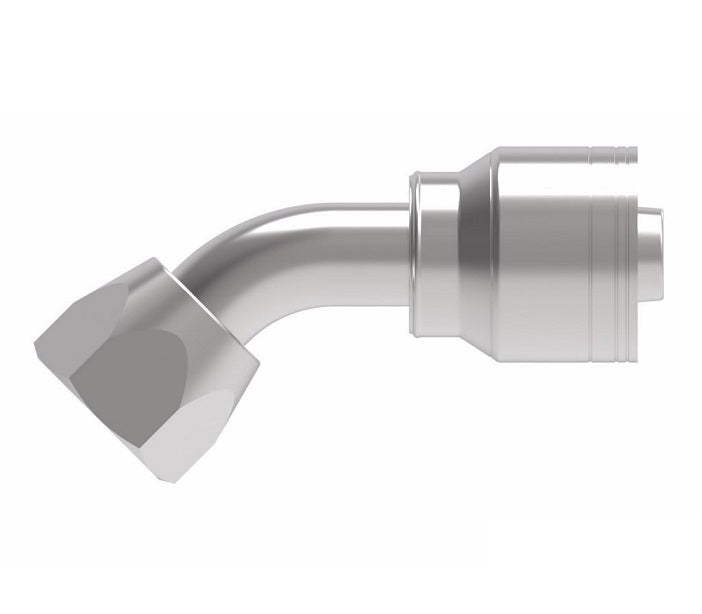

Name: 1AA12FJA12 Aeroquip by Danfoss | 1 & 2 Wire TTC Female JIC 37° Swivel 45° Elbow (FJA) Crimp Fitting | -12 Female JIC 37° Swivel x -12 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 1AA12FJA12 Danfoss
Price: 49.69 USD
Availability: InStock

$49.69 - $49.69

$49.69

$49.69 - $49.69

$49.69

Aeroquip® by Danfoss
1 & 2 Wire Global TTC Female JIC 37° Swivel Crimp Fitting (FJA) - 45° Elbow

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 1AA12FJA12 Danfoss
Brand:	Aeroquip, MatchMate
Series:	1AA MatchMate Series
Shape (Orientation):	45 Degree
Ends Configuration:	3/4in Female JIC, 3/4in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	2661 Series \| FC310 Series \| FC510 Series \| FC579 Series \| FC611 Series \| FC619 Series \| FC639 Series \| FC839B Series \| FC693 Series \| FC735 Series \| FC849 Series \| FC849B Series \| GH120 Series \| GH194 Series \| GH195 Series \| GH663 Series \| GH681 Series \| GH781 Series \| GH793 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Zinc Nickel Plated Steel Part Number	Thread	Hose Size	A	D	E&Oslash	H	Hex 1
1AA4FJA4*	1AA4FJA4TZ	7/16-20	-04	1.78"	0.97"	0.17"	0.33"	9/16"
1AA5FJA4*	-	1/2-20	-04	2.04"	1.12"	0.17"	0.37"	5/8"
1AA6FJA4	1AA6FJA4TZ	9/16-18	-04	2.09"	1.17"	0.17"	0.39"	11/16"
1AA4FJA6	-	7/16-20	-06	1.75"	0.92"	0.16"	0.33"	9/16"
1AA6FJA6	1AA6FJA6TZ	9/16-18	-06	2.31"	1.31"	0.24"	0.39"	11/16"
1AA8FJA6*	-	3/4-16	-06	2.65"	1.66"	0.26"	0.55"	7/8"
1AA8FJA8*	1AA8FJA8TZ	3/4-16	-08	2.82"	1.65"	0.37"	0.55"	7/8"
1AA10FJA8*	-	7/8-14	-08	3.03"	1.86"	0.38"	0.59"	1"
1AA10FJA10*	-	7/8-14	-10	2.82"	1.79"	0.46"	0.63"	1"
1AA12FJA10	-	1-1/16-12	-10	3.38"	2.22"	0.50"	0.78"	1-1/4"
1AA12FJA12	1AA12FJA12TZ	1-1/16-12	-12	3.43"	2.24"	0.58"	0.78"	1-1/4"
1AA16FJA12	-	1-5/16-12	-16	3.74"	2.39"	0.76"	1.07"	1-1/2"
1AA16FJA16	1AA16FJA16TZ	1-5/16-12	-16	3.74"	3.01"	0.81"	1.07"	1-1/2"
1AA20FJA20	1AA20FJA20TZ	1-5/8-12	-20	4.44"	2.71"	1.01"	1.22"	2"
1AA24FJA24	-	1-7/8-12	-24	-	-	-	-	2.25"

* Swivel nuts are universal for both SAE 37° and SAE 45° connections.
