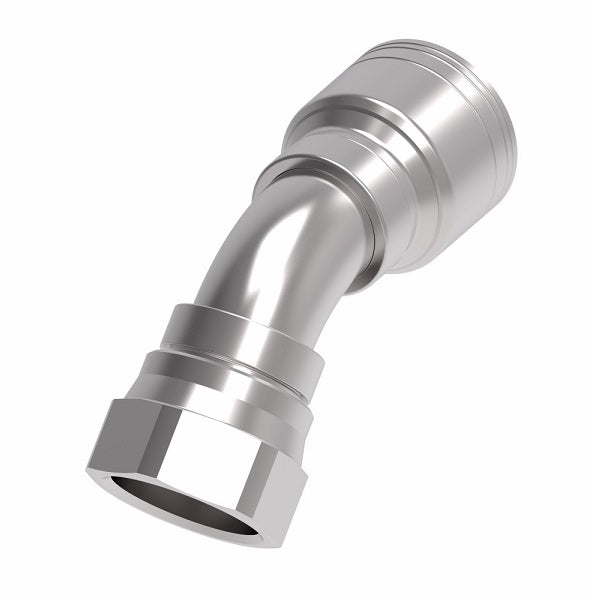

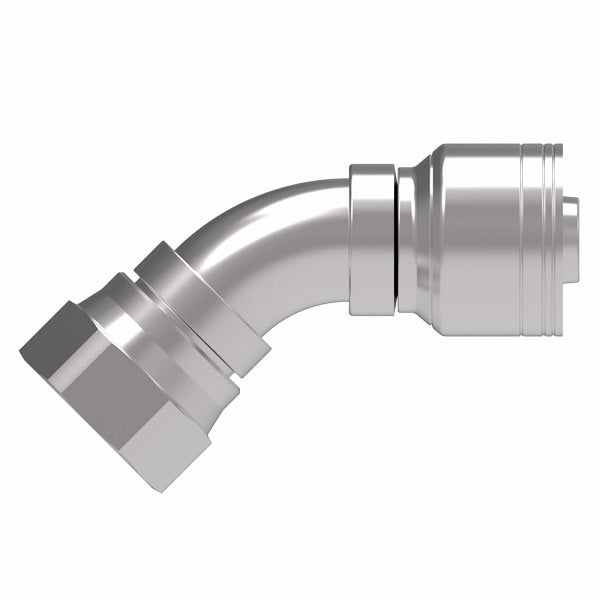

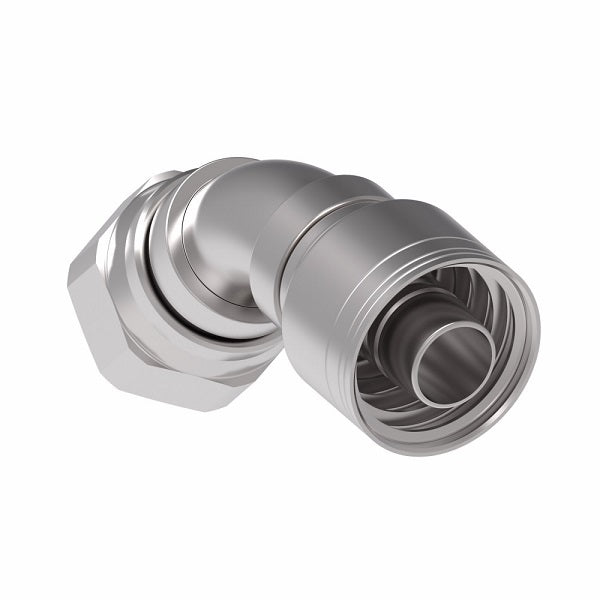

1AA24FJA24 Aeroquip by Danfoss | 1 & 2 Wire TTC Female JIC 37° Swivel 45° Elbow (FJA) Crimp Fitting | -24 Female JIC 37° Swivel x -24 Hose Barb | Steel
1AA24FJA24 Aeroquip by Danfoss | 1 & 2 Wire TTC Female JIC 37° Swivel 45° Elbow (FJA) Crimp Fitting | -24 Female JIC 37° Swivel x -24 Hose Barb | Steel
1AA24FJA24 Aeroquip by Danfoss | 1 & 2 Wire TTC Female JIC 37° Swivel 45° Elbow (FJA) Crimp Fitting | -24 Female JIC 37° Swivel x -24 Hose Barb | Steel
1AA24FJA24 Aeroquip by Danfoss | 1 & 2 Wire TTC Female JIC 37° Swivel 45° Elbow (FJA) Crimp Fitting | -24 Female JIC 37° Swivel x -24 Hose Barb | Steel

1AA24FJA24 Aeroquip by Danfoss | 1 & 2 Wire TTC Female JIC 37° Swivel 45° Elbow (FJA) Crimp Fitting | -24 Female JIC 37° Swivel x -24 Hose Barb | Steel

$207.96 - $207.96
$207.96
$207.96 - $207.96
$207.96

Aeroquip® by Danfoss
1 & 2 Wire Global TTC Female JIC 37° Swivel Crimp Fitting (FJA) - 45° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 1AA24FJA24 Danfoss
Brand: Aeroquip, MatchMate
Series: 1AA MatchMate Series
Shape (Orientation): 45 Degree
Ends Configuration: 1-1/2in Female JIC, 1-1/2in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: 2661 Series  |   FC310 Series  |   FC510 Series  |   FC579 Series  |   FC611 Series  |   FC619 Series  |   FC639/FC839B Series  |   FC693 Series  |   FC735 Series  |   FC849/FC849B Series  |   GH120 Series  |   GH194 Series  |   GH195 Series  |   GH663 Series  |   GH681 Series  |   GH781 Series  |   GH793 Series
Technical Info:
Steel
Part Number 		Zinc Nickel Plated Steel
Part Number 		Thread Hose Size A D E&Oslash H Hex 1
1AA4FJA4* 1AA4FJA4TZ 7/16-20 -04 1.78" 0.97" 0.17" 0.33" 9/16"
1AA5FJA4* - 1/2-20 -04 2.04" 1.12" 0.17" 0.37" 5/8"
1AA6FJA4 1AA6FJA4TZ 9/16-18 -04 2.09" 1.17" 0.17" 0.39" 11/16"
1AA4FJA6 - 7/16-20 -06 1.75" 0.92" 0.16" 0.33" 9/16"
1AA6FJA6 1AA6FJA6TZ 9/16-18 -06 2.31" 1.31" 0.24" 0.39" 11/16"
1AA8FJA6* - 3/4-16 -06 2.65" 1.66" 0.26" 0.55" 7/8"
1AA8FJA8* 1AA8FJA8TZ 3/4-16 -08 2.82" 1.65" 0.37" 0.55" 7/8"
1AA10FJA8* - 7/8-14 -08 3.03" 1.86" 0.38" 0.59" 1"
1AA10FJA10* - 7/8-14 -10 2.82" 1.79" 0.46" 0.63" 1"
1AA12FJA10 - 1-1/16-12 -10 3.38" 2.22" 0.50" 0.78" 1-1/4"
1AA12FJA12 1AA12FJA12TZ 1-1/16-12 -12 3.43" 2.24" 0.58" 0.78" 1-1/4"
1AA16FJA12 - 1-5/16-12 -16 3.74" 2.39" 0.76" 1.07" 1-1/2"
1AA16FJA16 1AA16FJA16TZ 1-5/16-12 -16 3.74" 3.01" 0.81" 1.07" 1-1/2"
1AA20FJA20 1AA20FJA20TZ 1-5/8-12 -20 4.44" 2.71" 1.01" 1.22" 2"
1AA24FJA24 - 1-7/8-12 -24 - - - - 2.25"

* Swivel nuts are universal for both SAE 37° and SAE 45° connections.
