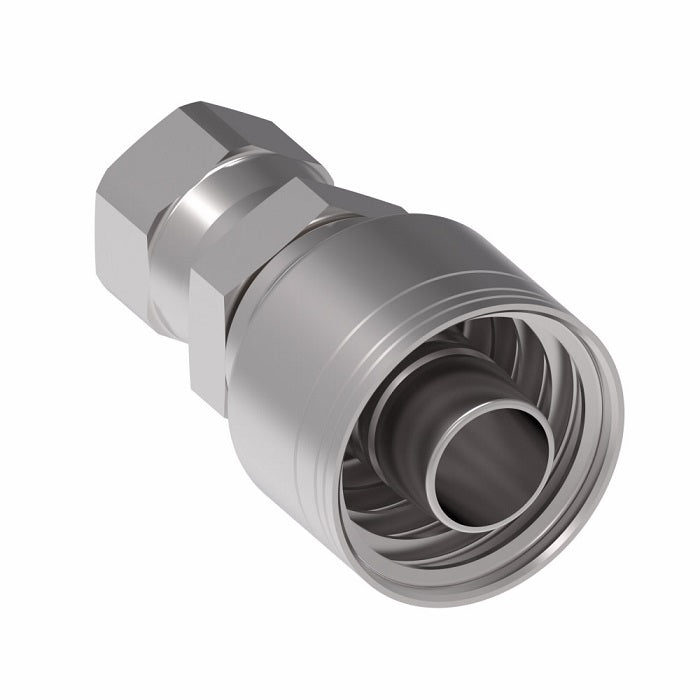

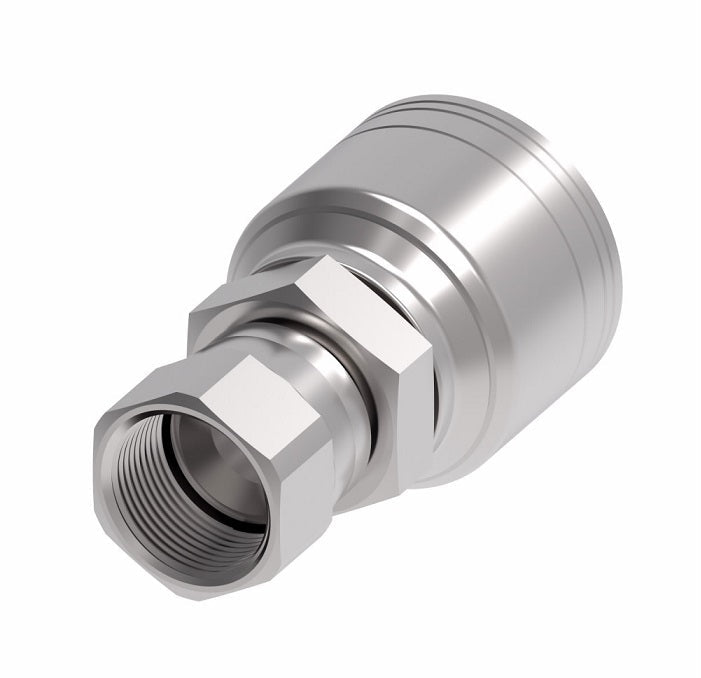

1AA16FJ16TZ Aeroquip by Danfoss | 1 & 2 Wire TTC Female JIC 37° Swivel (FJ) Crimp Fitting | -16 Female JIC 37° Swivel x -16 Hose Barb | Zinc-Nickel Plated Steel

Name: 1AA16FJ16TZ Aeroquip by Danfoss | 1 & 2 Wire TTC Female JIC 37° Swivel (FJ) Crimp Fitting | -16 Female JIC 37° Swivel x -16 Hose Barb | Zinc-Nickel Plated Steel
Brand: Danfoss/Eaton
SKU: 1AA16FJ16TZ Danfoss
Price: 56.16 USD
Availability: InStock

$56.16 - $56.16

$56.16

$56.16 - $56.16

$56.16

Aeroquip® by Danfoss
1 & 2 Wire Global TTC Female JIC 37° Swivel Crimp Fitting (FJ) - Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 1AA16FJ16TZ Danfoss
Brand:	Aeroquip, MatchMate
Series:	1AA MatchMate Series
Shape (Orientation):	Straight
Ends Configuration:	1in Female JIC, 1in Hose Barb
Material(s):	Zinc-Nickel Plated Steel
Special Properties:	Swivel
Compatible with the following Series:	2661 Series \| FC310 Series \| FC510 Series \| FC579 Series \| FC611 Series \| FC619 Series \| FC639 Series \| FC839B Series \| FC693 Series \| FC735 Series \| FC849 Series \| FC849B Series \| GH120 Series \| GH194 Series \| GH195 Series \| GH663 Series \| GH681 Series \| GH781 Series \| GH793 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Stainless Steel Part Number	Zinc-Nickel Plated Steel Part Number	Thread	Hose Size	A	D	E&Oslash	Hex 1	Hex 2
1AA3FJ4	-	-	3/8-24	-04	1.94"	1.02"	0.13"	1/2"	9/16"
1AA4FJ4	1AA4FJ4C	1AA4FJ4TZ	7/16-20	-04	2.00"	1.05"	0.17"	9/16"	9/16"
1AA5FJ4	-	-	1/2-20	-04	1.98"	1.14"	0.17"	5/8"	9/16"
1AA6FJ4	-	1AA6FJ4TZ	9/16-18	-04	2.03"	1.11"	0.17"	1-1/16"	9/16"
1AA4FJ6	-	-	7/16-20	-06	2.19"	1.19"	0.17"	9/16"	11/16"
1AA5FJ6	-	-	1/2-20	-06	2.24"	1.24"	0.23"	5/8"	11/16"
1AA6FJ6	1AA6FJ6C	1AA6FJ6TZ	9/16-18	-06	2.28"	1.28"	0.26"	1-1/16"	11/16"
1AA8FJ6	1AA8FJ6C	1AA8FJ6TZ	3/4-16	-06	2.31"	1.31"	0.26"	7/8"	11/16"
1AA10FJ6	-	-	7/8-14	-06	2.26"	0.52"	0.26"	1"	11/16"
1AA6FJ8	-	-	9/16-18	-08	2.36"	1.36"	0.33"	11/16"	13/16"
1AA8FJ8	1AA8FJ8C	1AA8FJ8TZ	3/4-16	-08	2.63"	1.46"	0.38"	7/8"	13/16"
1AA10FJ8	-	-	7/8-14	-08	2.64"	1.47"	0.38"	1"	7/8"
1AA12FJ6	-	-	1-1/16-12	-06	-	-	-	-	-
1AA12FJ8	-	-	1-1/16-12	-08	2.73"	1.56"	0.38"	1-1/4"	1"
1AA16FJ8	-	-	1-5/16-12	-08	3.06"	1.89"	0.38"	1-1/2"	1-1/4"
1AA8FJ10	-	-	3/4-16	-10	2.65"	1.50"	0.39"	7/8"	15/16"
1AA10FJ10	1AA10FJ10C	-	7/8-14	-10	2.77"	1.62"	0.50"	1"	15/16"
1AA12FJ10	-	-	1-1/16-12	-10	2.72"	1.57"	0.50"	1-1/4"	1"
1AA10FJ12	-	-	7/8-14	-12	2.81"	1.63"	0.48"	1"	1-1/8"
1AA12FJ12	1AA12FJ12C	1AA12FJ12TZ	1-1/16-12	-12	2.84"	1.65"	0.61"	1-1/4"	1-1/8"
1AA14FJ12	-	-	1-3/16-12	-12	2.84"	1.68"	0.61"	1-3/8"	1-1/8"
1AA16FJ12	-	-	1-5/16-12	-12	2.91"	1.72"	0.61"	1-1/2"	1-1/4"
1AA12FJ16	-	-	1-1/16-12	-16	3.15"	1.80"	0.61"	1-1/4"	1-3/8"
1AA14FJ16	-	-	1-3/16-12	-16	3.15"	1.83"	0.81"	1-3/8"	1-3/8"
1AA16FJ16	1AA16FJ16C	1AA16FJ16TZ	1-5/16-12	-16	3.29"	1.93"	0.81"	1-1/2"	1-3/8"
1AA20FJ16	-	-	1-5/8-12	-16	3.17"	1.81"	0.81"	2"	-
1AA16FJ20	-	-	1-5/16-12	-20	3.46"	1.73"	0.85"	1-1/2"	-
1AA20FJ20	1AA20FJ20C	1AA20FJ20TZ	1-5/8-12	-20	3.61"	1.88"	1.05"	2"	-
1AA24FJ24	-	-	1-7/8-12	-24	3.90"	2.07"	1.26"	2-1/4"	-
1AA32FJ32	-	-	2-1/2-12	-32	4.34"	2.39"	1.75"	2-7/8"	-
