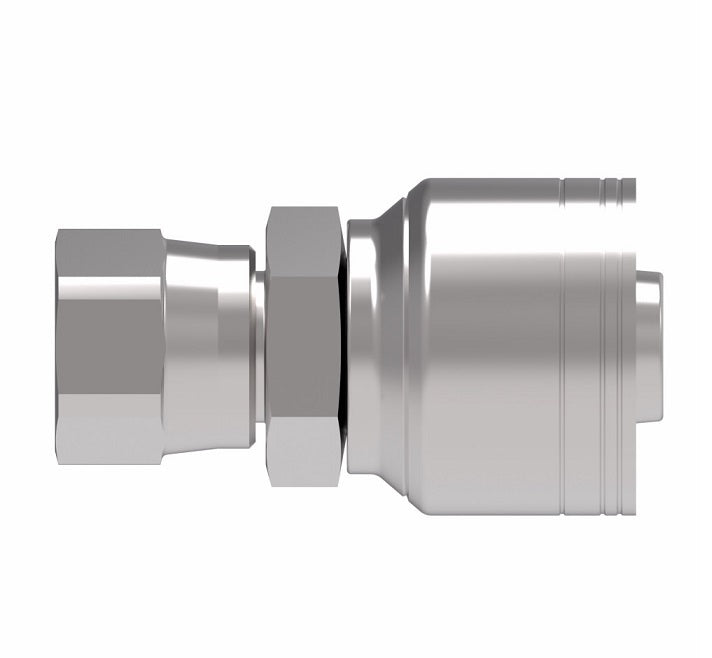

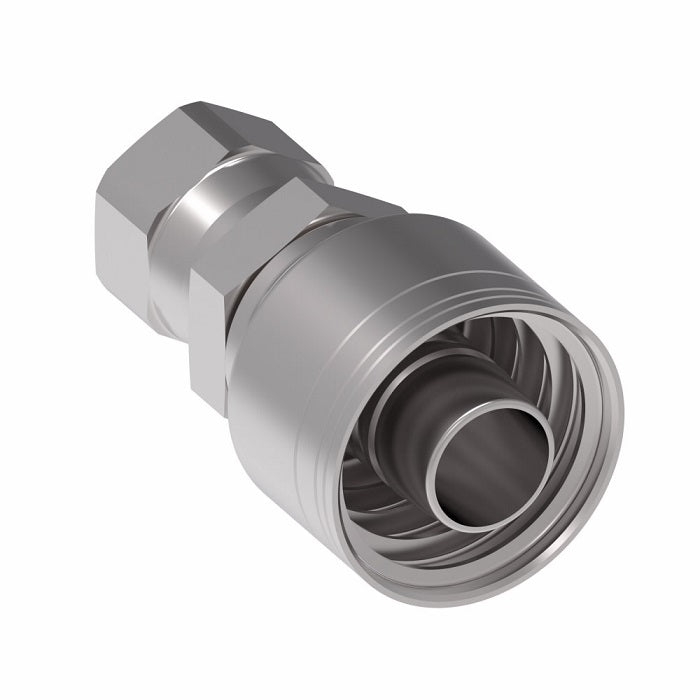

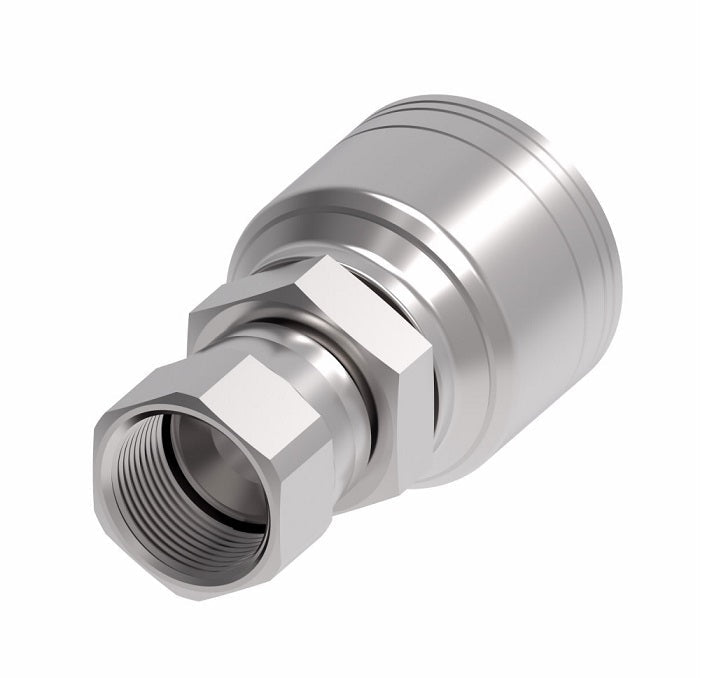

1AA8FJ6C Aeroquip by Danfoss | 1 & 2 Wire TTC Female JIC 37° Swivel (FJ) Crimp Fitting | -08 Female JIC 37° Swivel x -06 Hose Barb | Stainless Steel
1AA8FJ6C Aeroquip by Danfoss | 1 & 2 Wire TTC Female JIC 37° Swivel (FJ) Crimp Fitting | -08 Female JIC 37° Swivel x -06 Hose Barb | Stainless Steel
1AA8FJ6C Aeroquip by Danfoss | 1 & 2 Wire TTC Female JIC 37° Swivel (FJ) Crimp Fitting | -08 Female JIC 37° Swivel x -06 Hose Barb | Stainless Steel
1AA8FJ6C Aeroquip by Danfoss | 1 & 2 Wire TTC Female JIC 37° Swivel (FJ) Crimp Fitting | -08 Female JIC 37° Swivel x -06 Hose Barb | Stainless Steel

1AA8FJ6C Aeroquip by Danfoss | 1 & 2 Wire TTC Female JIC 37° Swivel (FJ) Crimp Fitting | -08 Female JIC 37° Swivel x -06 Hose Barb | Stainless Steel

$58.35 - $58.35
$58.35
$58.35 - $58.35
$58.35

Aeroquip® by Danfoss
1 & 2 Wire Global TTC Female JIC 37° Swivel Crimp Fitting (FJ) - Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 1AA8FJ6C Danfoss
Brand: Aeroquip, MatchMate
Series: 1AA MatchMate Series
Shape (Orientation): Straight
Ends Configuration: 1/2in Female JIC, 3/8in Hose Barb
Material(s): Stainless Steel
Special Properties: Swivel
Compatible with the following Series: 2661 Series  |   FC310 Series  |   FC510 Series  |   FC579 Series  |   FC611 Series  |   FC619 Series  |   FC639 Series  |   FC839B Series  |   FC693 Series  |   FC735 Series  |   FC849 Series  |   FC849B Series  |   GH120 Series  |   GH194 Series  |   GH195 Series  |   GH663 Series  |   GH681 Series  |   GH781 Series  |   GH793 Series
Technical Info:
Steel
Part Number 		Stainless Steel
Part Number 		Zinc-Nickel
Plated Steel
Part Number 		Thread Hose Size A D E&Oslash Hex 1

 Hex 2
1AA3FJ4 - - 3/8-24 -04 1.94" 1.02" 0.13" 1/2" 9/16"
1AA4FJ4 1AA4FJ4C 1AA4FJ4TZ 7/16-20 -04 2.00" 1.05" 0.17" 9/16" 9/16"
1AA5FJ4 - - 1/2-20 -04 1.98" 1.14" 0.17" 5/8" 9/16"
1AA6FJ4 - 1AA6FJ4TZ 9/16-18 -04 2.03" 1.11" 0.17" 1-1/16" 9/16"
1AA4FJ6 - - 7/16-20 -06 2.19" 1.19" 0.17" 9/16" 11/16"
1AA5FJ6 - - 1/2-20 -06 2.24" 1.24" 0.23" 5/8" 11/16"
1AA6FJ6 1AA6FJ6C 1AA6FJ6TZ 9/16-18 -06 2.28" 1.28" 0.26" 1-1/16" 11/16"
1AA8FJ6 1AA8FJ6C 1AA8FJ6TZ 3/4-16 -06 2.31" 1.31" 0.26" 7/8" 11/16"
1AA10FJ6 - - 7/8-14 -06 2.26" 0.52" 0.26" 1" 11/16"
1AA6FJ8 - - 9/16-18 -08 2.36" 1.36" 0.33" 11/16" 13/16"
1AA8FJ8 1AA8FJ8C 1AA8FJ8TZ 3/4-16 -08 2.63" 1.46" 0.38" 7/8" 13/16"
1AA10FJ8 - - 7/8-14 -08 2.64" 1.47" 0.38" 1" 7/8"
1AA12FJ6 - - 1-1/16-12 -06 - - - - -
1AA12FJ8 - - 1-1/16-12 -08 2.73" 1.56" 0.38" 1-1/4" 1"
1AA16FJ8 - - 1-5/16-12 -08 3.06" 1.89" 0.38" 1-1/2" 1-1/4"
1AA8FJ10 - - 3/4-16 -10 2.65" 1.50" 0.39" 7/8" 15/16"
1AA10FJ10 1AA10FJ10C - 7/8-14 -10 2.77" 1.62" 0.50" 1" 15/16"
1AA12FJ10 - - 1-1/16-12 -10 2.72" 1.57" 0.50" 1-1/4" 1"
1AA10FJ12 - - 7/8-14 -12 2.81" 1.63" 0.48" 1" 1-1/8"
1AA12FJ12 1AA12FJ12C 1AA12FJ12TZ 1-1/16-12 -12 2.84" 1.65" 0.61" 1-1/4" 1-1/8"
1AA14FJ12 - - 1-3/16-12 -12 2.84" 1.68" 0.61" 1-3/8" 1-1/8"
1AA16FJ12 - - 1-5/16-12 -12 2.91" 1.72" 0.61" 1-1/2" 1-1/4"
1AA12FJ16 - - 1-1/16-12 -16 3.15" 1.80" 0.61" 1-1/4" 1-3/8"
1AA14FJ16 - - 1-3/16-12 -16 3.15" 1.83" 0.81" 1-3/8" 1-3/8"
1AA16FJ16 1AA16FJ16C 1AA16FJ16TZ 1-5/16-12 -16 3.29" 1.93" 0.81" 1-1/2" 1-3/8"
1AA20FJ16 - - 1-5/8-12 -16 3.17" 1.81" 0.81" 2" -
1AA16FJ20 - - 1-5/16-12 -20 3.46" 1.73" 0.85" 1-1/2" -
1AA20FJ20 1AA20FJ20C 1AA20FJ20TZ 1-5/8-12 -20 3.61" 1.88" 1.05" 2" -
1AA24FJ24 - - 1-7/8-12 -24 3.90" 2.07" 1.26" 2-1/4" -
1AA32FJ32 - - 2-1/2-12 -32 4.34" 2.39" 1.75" 2-7/8" -
