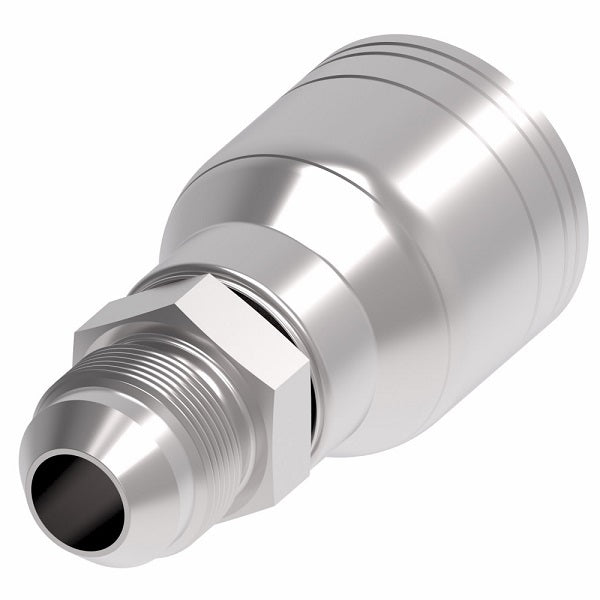

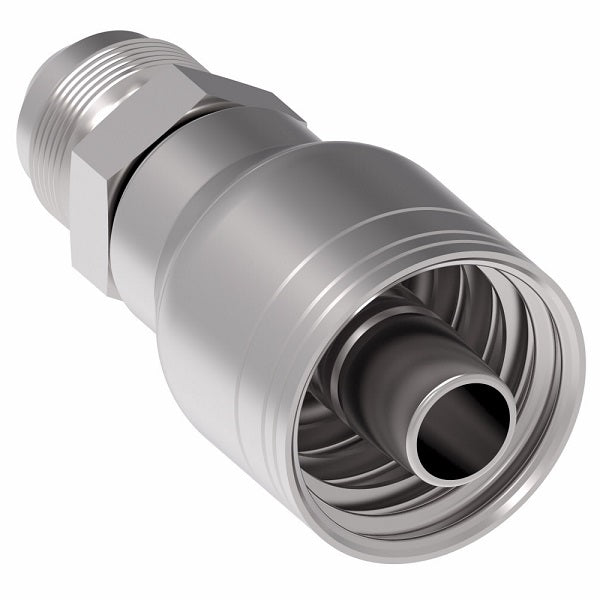

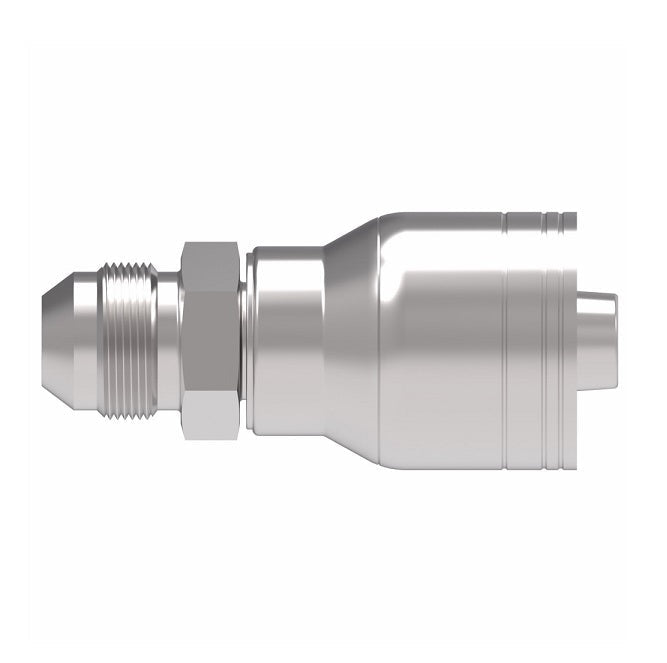

1AA16MJ16TZ Aeroquip by Danfoss | 1 & 2 Wire TTC Male JIC 37° (MJ) Crimp Fitting | -16 Male JIC 37° x -16 Hose Barb | Zinc-Nickel Plated Steel
1AA16MJ16TZ Aeroquip by Danfoss | 1 & 2 Wire TTC Male JIC 37° (MJ) Crimp Fitting | -16 Male JIC 37° x -16 Hose Barb | Zinc-Nickel Plated Steel
1AA16MJ16TZ Aeroquip by Danfoss | 1 & 2 Wire TTC Male JIC 37° (MJ) Crimp Fitting | -16 Male JIC 37° x -16 Hose Barb | Zinc-Nickel Plated Steel
1AA16MJ16TZ Aeroquip by Danfoss | 1 & 2 Wire TTC Male JIC 37° (MJ) Crimp Fitting | -16 Male JIC 37° x -16 Hose Barb | Zinc-Nickel Plated Steel

1AA16MJ16TZ Aeroquip by Danfoss | 1 & 2 Wire TTC Male JIC 37° (MJ) Crimp Fitting | -16 Male JIC 37° x -16 Hose Barb | Zinc-Nickel Plated Steel

$66.24 - $66.24
$66.24
$66.24 - $66.24
$66.24

Aeroquip® by Danfoss
1 & 2 Wire Global TTC Male JIC 37° Crimp Fitting (MJ) - Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 1AA16MJ16TZ Danfoss
Brand: Aeroquip, MatchMate
Series: 1AA MatchMate Series
Shape (Orientation): Straight
Ends Configuration: 1in Male JIC, 1in Hose Barb
Material(s): Zinc-Nickel Plated Steel
Compatible with the following Series: 2661 Series  |   FC310 Series  |   FC510 Series  |   FC579 Series  |   FC611 Series  |   FC619 Series  |   FC639 Series  |   FC839B Series  |   FC693 Series  |   FC735 Series  |   FC849 Series  |   FC849B Series  |   GH120 Series  |   GH194 Series  |   GH195 Series  |   GH663 Series  |   GH681 Series  |   GH781 Series  |   GH793 Series
Technical Info:
Steel
Part Number 		Zinc-Nickel Plated Steel
Part Number 		Thread Hose Size A D E&Oslash Hex 2
1AA4MJ4 - 7/16-20 -04 2.00" 1.07" 0.17" 9/16"
1AA5MJ4 - 1/2-20 -04 1.84" 0.92" 0.17" 9/16"
1AA6MJ4 1AA6MJ4TZ 9/16-18 -04 1.85" 0.93" 0.17" 5/8"
1AA6MJ6 1AA6MJ6TZ 9/16-18 -06 2.12" 1.22" 0.26" 11/16"
1AA8MJ6 - 3/4-16 -06 1.94" 1.11" 0.26" 13/16"
1AA8MJ8 - 3/4-16 -08 2.59" 1.40" 0.38" 13/16"
1AA10MJ6 - 7/8-14 -06 2.10" 1.21" 0.26" 15/16"
1AA10MJ8 - 7/8-14 -08 2.33" 1.26" 0.38" 15/16"
1AA12MJ8 - 1-1/16-12 -08 2.50" 1.43" 0.38" 1-1/8"
1AA8MJ10 - 3/4-16 -10 2.43" 1.41" 0.50" 15/16"
1AA10MJ10 - 7/8-14 -10 2.73" 1.59" 0.48" 15/16"
1AA12MJ10 - 1-1/16-12 -10 2.46" 1.43" 0.50" 1-1/8"
1AA10MJ12 - 7/8-14 -12 2.78" 1.59" 0.48" 1-1/8"
1AA12MJ12 - 1-1/16-12 -12 2.94" 1.73" 0.61" 1-1/8"
1AA14MJ12 - 1-3/16-12 -12 2.73" 1.54" 0.61" 1-1/4"
1AA16MJ12 - 1-5/16-12 -12 2.75" 1.56" 0.61" 1-3/8"
1AA14MJ16 - 1-3/16-12 -16 3.11" 1.80" 0.72" 1-3/8"
1AA16MJ16 1AA16MJ16TZ 1-5/16-12 -16 3.25" 1.88" 0.82" 1-3/8"
1AA20MJ16 - 1-5/8-12 -16 3.03" 1.71" 0.81" 1-11/16"
1AA20MJ20 - 1-5/8-12 -20 3.89" 2.16" 1.05" 1-3/4"
1AA24MJ24 - 1-7/8-12 -24 4.31" 2.49" 1.26" 2"
