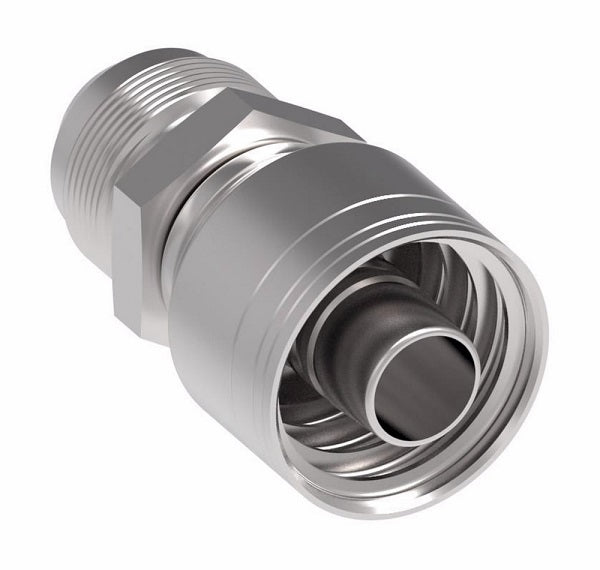

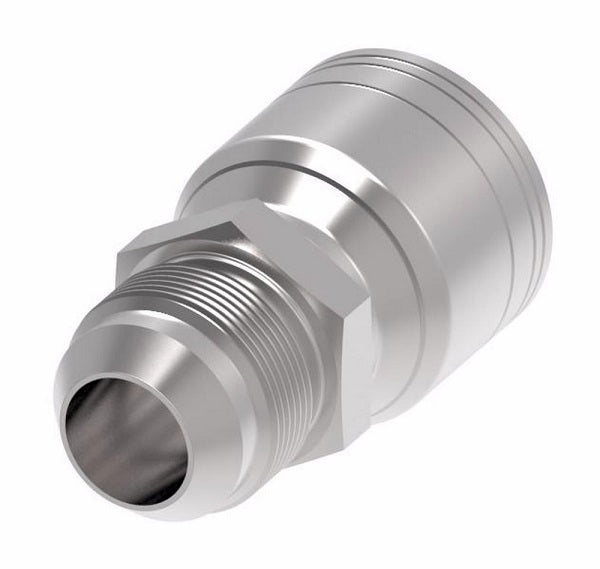

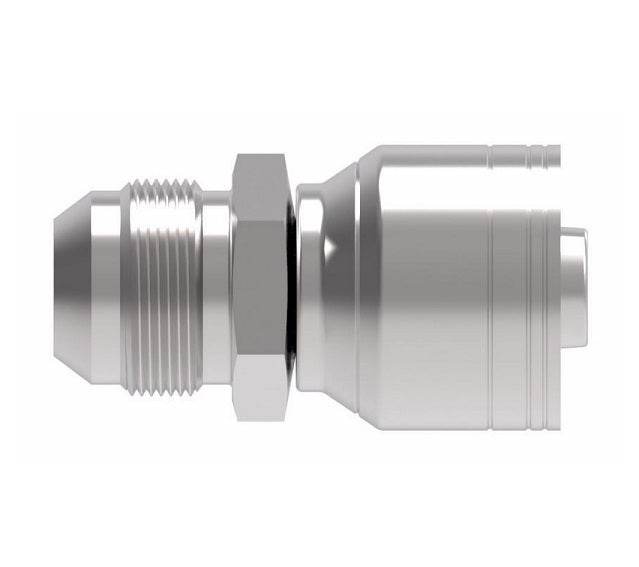

1AA6MJ4TZ Aeroquip by Danfoss | 1 & 2 Wire TTC Male JIC 37° (MJ) Crimp Fitting | -06 Male JIC 37° x -04 Hose Barb | Zinc-Nickel Plated Steel

1AA6MJ4TZ Aeroquip by Danfoss | 1 & 2 Wire TTC Male JIC 37° (MJ) Crimp Fitting | -06 Male JIC 37° x -04 Hose Barb | Zinc-Nickel Plated Steel | Pack of 10

$400.63 - $400.63

$400.63

$400.63 - $400.63

$400.63

Aeroquip® by Danfoss
1 & 2 Wire Global TTC Male JIC 37° Crimp Fitting (MJ) - Straight

(Formerly Eaton Aeroquip)

Package Quantity: 10 Units

Specifications for Variant SKU: 1AA6MJ4TZ Danfoss \| 10 \|
Brand:	Aeroquip, MatchMate
Series:	1AA MatchMate Series
Shape (Orientation):	Straight
Ends Configuration:	3/8in Male JIC, 1/4in Hose Barb
Material(s):	Zinc-Nickel Plated Steel
Compatible with the following Series:	2661 Series \| FC310 Series \| FC510 Series \| FC579 Series \| FC611 Series \| FC619 Series \| FC639 Series \| FC839B Series \| FC693 Series \| FC735 Series \| FC849 Series \| FC849B Series \| GH120 Series \| GH194 Series \| GH195 Series \| GH663 Series \| GH681 Series \| GH781 Series \| GH793 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Zinc-Nickel Plated Steel Part Number	Thread	Hose Size	A	D	E&Oslash	Hex 2
1AA4MJ4	-	7/16-20	-04	2.00"	1.07"	0.17"	9/16"
1AA5MJ4	-	1/2-20	-04	1.84"	0.92"	0.17"	9/16"
1AA6MJ4	1AA6MJ4TZ	9/16-18	-04	1.85"	0.93"	0.17"	5/8"
1AA6MJ6	1AA6MJ6TZ	9/16-18	-06	2.12"	1.22"	0.26"	11/16"
1AA8MJ6	-	3/4-16	-06	1.94"	1.11"	0.26"	13/16"
1AA8MJ8	-	3/4-16	-08	2.59"	1.40"	0.38"	13/16"
1AA10MJ6	-	7/8-14	-06	2.10"	1.21"	0.26"	15/16"
1AA10MJ8	-	7/8-14	-08	2.33"	1.26"	0.38"	15/16"
1AA12MJ8	-	1-1/16-12	-08	2.50"	1.43"	0.38"	1-1/8"
1AA8MJ10	-	3/4-16	-10	2.43"	1.41"	0.50"	15/16"
1AA10MJ10	-	7/8-14	-10	2.73"	1.59"	0.48"	15/16"
1AA12MJ10	-	1-1/16-12	-10	2.46"	1.43"	0.50"	1-1/8"
1AA10MJ12	-	7/8-14	-12	2.78"	1.59"	0.48"	1-1/8"
1AA12MJ12	-	1-1/16-12	-12	2.94"	1.73"	0.61"	1-1/8"
1AA14MJ12	-	1-3/16-12	-12	2.73"	1.54"	0.61"	1-1/4"
1AA16MJ12	-	1-5/16-12	-12	2.75"	1.56"	0.61"	1-3/8"
1AA14MJ16	-	1-3/16-12	-16	3.11"	1.80"	0.72"	1-3/8"
1AA16MJ16	1AA16MJ16TZ	1-5/16-12	-16	3.25"	1.88"	0.82"	1-3/8"
1AA20MJ16	-	1-5/8-12	-16	3.03"	1.71"	0.81"	1-11/16"
1AA20MJ20	-	1-5/8-12	-20	3.89"	2.16"	1.05"	1-3/4"
1AA24MJ24	-	1-7/8-12	-24	4.31"	2.49"	1.26"	2"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
