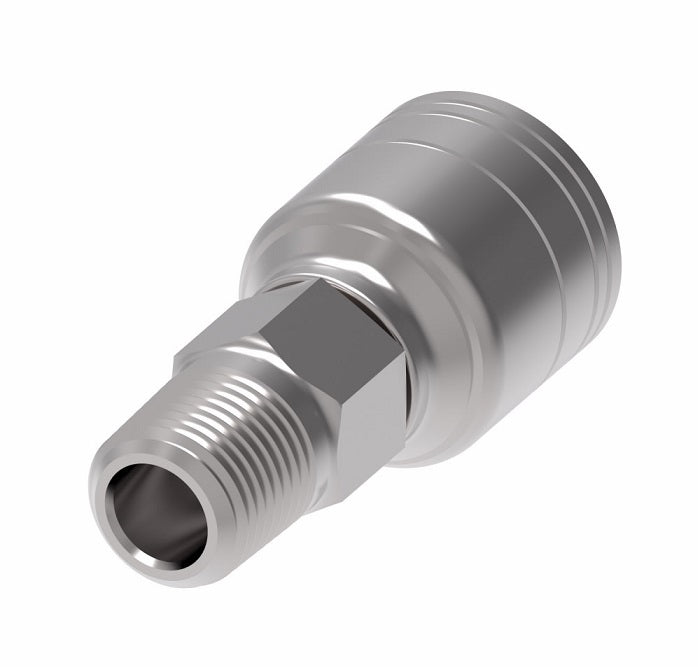

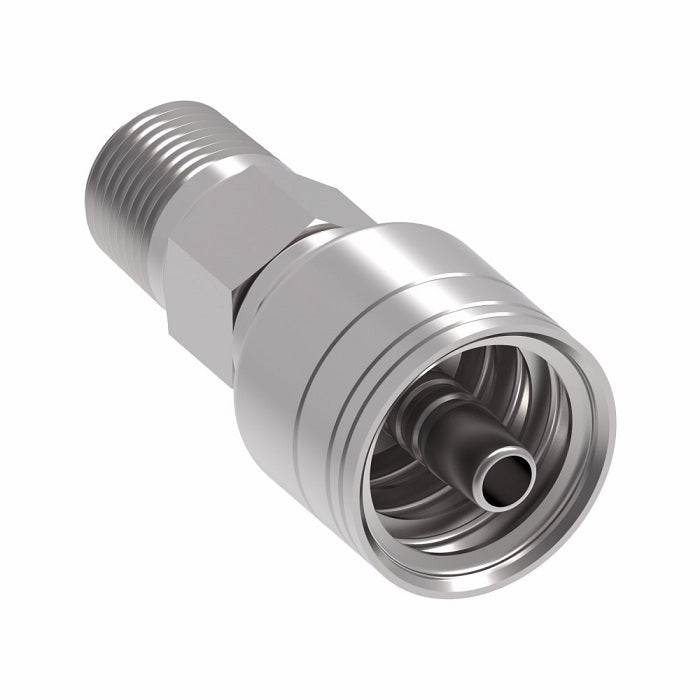

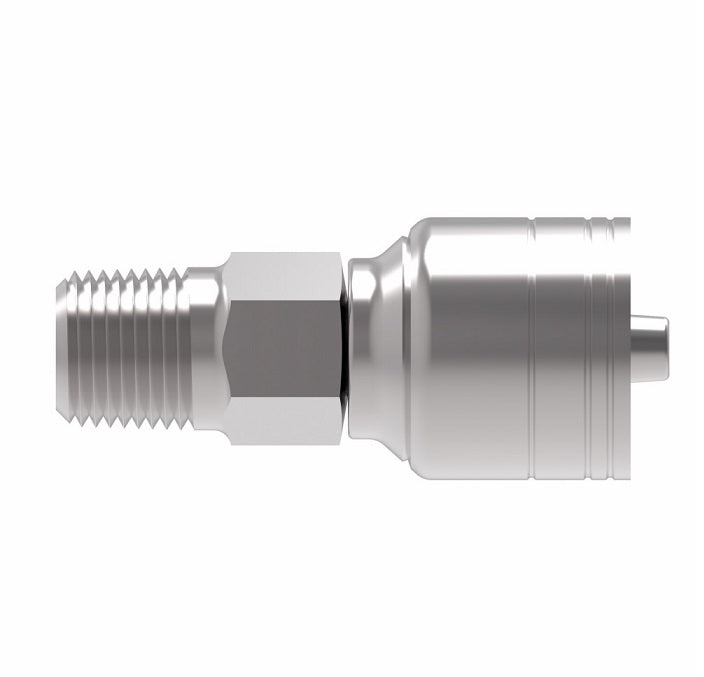

1AA32MP32 Aeroquip by Danfoss | 1 & 2 Wire TTC Male Pipe Crimp Fitting (MP) | -32 Male Pipe x -32 Hose Barb | Steel

1AA32MP32 Aeroquip by Danfoss | 1 & 2 Wire TTC Male Pipe Crimp Fitting (MP) | -32 Male Pipe x -32 Hose Barb | Steel

Name: 1AA32MP32 Aeroquip by Danfoss | 1 & 2 Wire TTC Male Pipe Crimp Fitting (MP) | -32 Male Pipe x -32 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 1AA32MP32 Danfoss
Price: 172.62 USD
Availability: InStock

$172.62 - $172.62

$172.62

$172.62 - $172.62

$172.62

Aeroquip® by Danfoss
1 & 2 Wire Global TTC Male Pipe Crimp Fitting (MP) - Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 1AA32MP32 Danfoss
Brand:	Aeroquip, MatchMate
Series:	1AA MatchMate Series
Shape (Orientation):	Straight
Ends Configuration:	2in Male NPT, 2in Hose Barb
Material(s):	Steel
Compatible with the following Series:	2661 Series \| FC310 Series \| FC510 Series \| FC579 Series \| FC611 Series \| FC619 Series \| FC639 Series \| FC839B Series \| FC693 Series \| FC735 Series \| FC849 Series \| FC849B Series \| GH120 Series \| GH194 Series \| GH195 Series \| GH663 Series \| GH681 Series \| GH781 Series \| GH793 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Stainless Steel Part Number	Zinc-Nickel Plated Steel Part Number	Thread	Hose Size	A	D	EØ	Hex 2
1AA2MP4	-	-	1/8-27	-04	1.84"	0.92"	0.17"	9/16"
1AA4MP4	1AA4MP4C	1AA4MP4TZ	1/4-18	-04	2.06"	1.14"	0.17"	9/16"
1AA6MP4	-	-	3/8-18	-04	1.90"	0.98"	0.17"	11/16"
1AA4MP6	-	-	1/4-18	-06	2.02"	1.18"	0.26"	11/16"
1AA6MP6	1AA6MP6C	-	3/8-18	-06	2.17"	1.27"	0.26"	11/16"
1AA8MP4	-	-	1/2-14	-04	2.02"	1.23"	0.17"	7/8"
1AA8MP6	-	-	1/2-14	-06	2.11"	1.28"	0.26"	7/8"
1AA4MP8	-	-	1/4-18	-08	2.30"	1.23"	0.30"	13/16"
1AA6MP8	-	-	3/8-18	-08	2.39"	1.32"	0.38"	13/16"
1AA8MP8	1AA8MP8C	-	1/2-14	-08	2.80"	1.60"	0.38"	7/8"
1AA12MP8	-	-	3/4-14	-08	2.46"	1.39"	0.38"	1-1/16"
1AA6MP10	-	-	3/8-18	-10	2.49"	1.33"	0.42"	15/16"
1AA8MP10	-	-	1/2-14	-10	2.61"	1.58"	0.50"	15/16"
1AA12MP10	-	-	3/4-14	-10	2.43"	1.40"	0.50"	1-1/16"
1AA8MP12	-	-	1/2-14	-12	2.78"	1.60"	0.56"	1-1/8"
1AA12MP12	1AA12MP12C	-	3/4-14	-12	2.84"	1.65"	0.61"	1-1/8"
1AA12MP16	-	-	3/4-14	-16	3.02"	1.67"	0.76"	1-3/8"
1AA16MP12	-	-	1-11-1/2	-12	2.80"	1.61"	0.61"	1-3/8"
1AA16MP16	1AA16MP16C	-	1-11-1/2	-16	3.22"	1.86"	0.82"	1-3/8"
1AA20MP16	-	-	1-1/4 - 11-1/2	-16	3.08"	1.72"	0.82"	1-11/16"
1AA16MP20	-	-	1-11 1/2	-20	3.66"	1.93"	0.95"	1-3/4"
1AA20MP20	-	-	1-1/4 - 11-1/2	-20	3.52"	1.79"	1.05"	1-13/16"
1AA24MP24	-	-	1-1/2 - 11-1/2	-24	4.18"	2.36"	1.26"	2"
1AA32MP32	-	-	2-11-1/2	-32	4.59"	2.61"	1.75"	2-1/2"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
