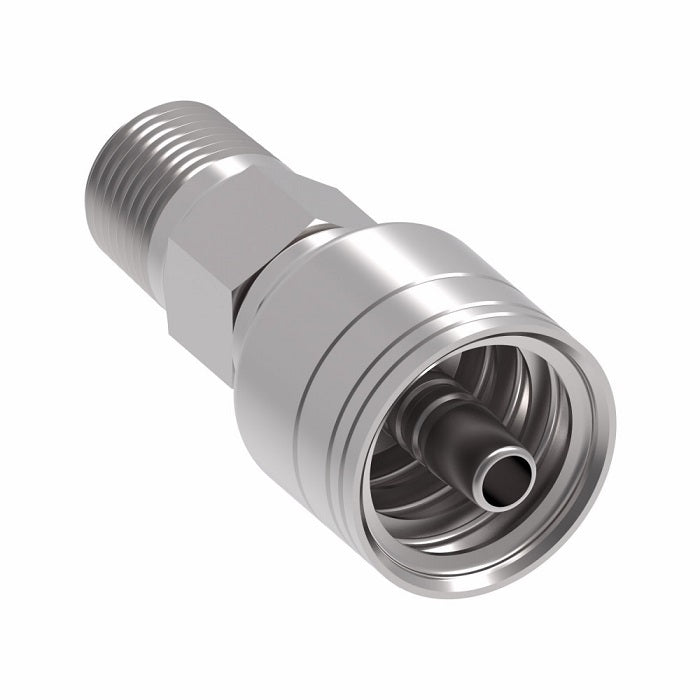

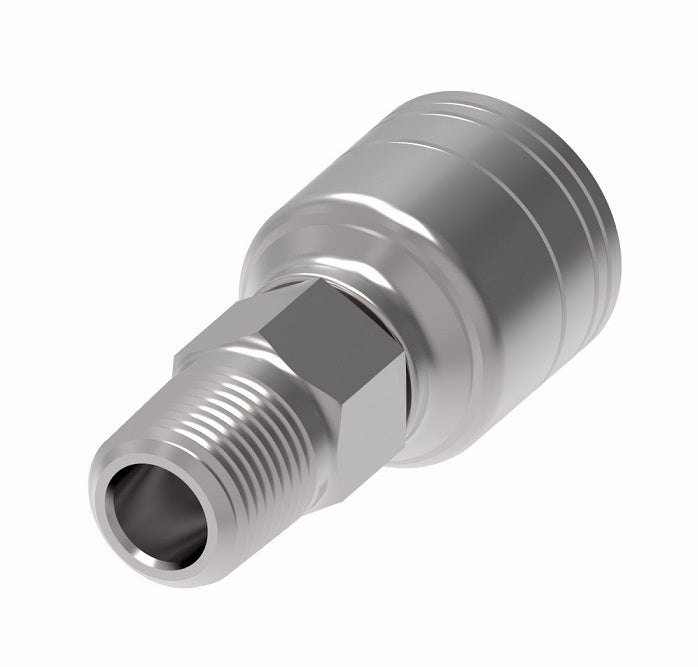

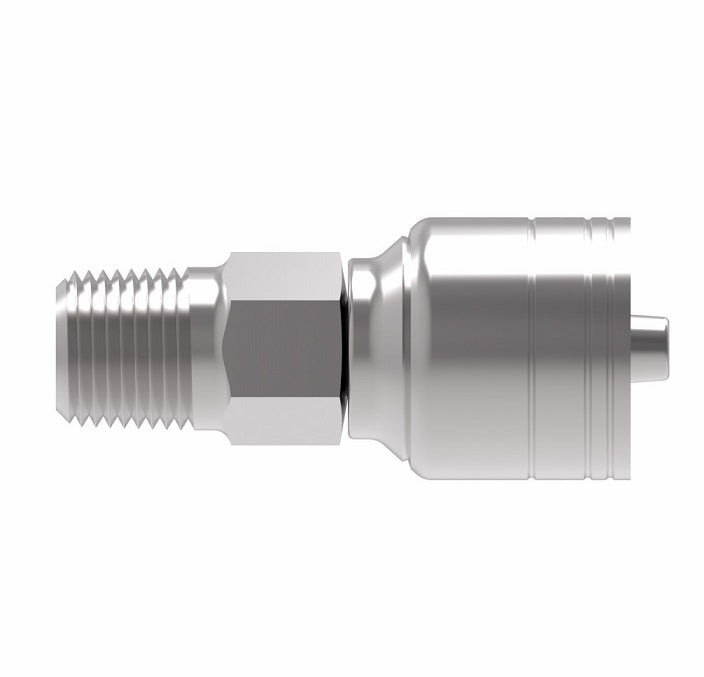

1AA8MP12 Aeroquip by Danfoss | 1 & 2 Wire TTC Male Pipe Crimp Fitting (MP) | -08 Male Pipe x -12 Hose Barb | Steel
1AA8MP12 Aeroquip by Danfoss | 1 & 2 Wire TTC Male Pipe Crimp Fitting (MP) | -08 Male Pipe x -12 Hose Barb | Steel
1AA8MP12 Aeroquip by Danfoss | 1 & 2 Wire TTC Male Pipe Crimp Fitting (MP) | -08 Male Pipe x -12 Hose Barb | Steel
1AA8MP12 Aeroquip by Danfoss | 1 & 2 Wire TTC Male Pipe Crimp Fitting (MP) | -08 Male Pipe x -12 Hose Barb | Steel

1AA8MP12 Aeroquip by Danfoss | 1 & 2 Wire TTC Male Pipe Crimp Fitting (MP) | -08 Male Pipe x -12 Hose Barb | Steel

$24.68 - $24.68
$24.68
$24.68 - $24.68
$24.68

Aeroquip® by Danfoss
1 & 2 Wire Global TTC Male Pipe Crimp Fitting (MP) - Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 1AA8MP12 Danfoss
Brand: Aeroquip, MatchMate
Series: 1AA MatchMate Series
Shape (Orientation): Straight
Ends Configuration: 1/2in Male NPT, 3/4in Hose Barb
Material(s): Steel
Compatible with the following Series: 2661 Series  |   FC310 Series  |   FC510 Series  |   FC579 Series  |   FC611 Series  |   FC619 Series  |   FC639 Series  |   FC839B Series  |   FC693 Series  |   FC735 Series  |   FC849 Series  |   FC849B Series  |   GH120 Series  |   GH194 Series  |   GH195 Series  |   GH663 Series  |   GH681 Series  |   GH781 Series  |   GH793 Series
Technical Info:
Steel
Part Number 		Stainless Steel
Part Number 		Zinc-Nickel
Plated Steel
Part Number 		Thread Hose Size A D EØ Hex 2
1AA2MP4 - - 1/8-27 -04 1.84" 0.92" 0.17" 9/16"
1AA4MP4 1AA4MP4C 1AA4MP4TZ 1/4-18 -04 2.06" 1.14" 0.17" 9/16"
1AA6MP4 - - 3/8-18 -04 1.90" 0.98" 0.17" 11/16"
1AA4MP6 - - 1/4-18 -06 2.02" 1.18" 0.26" 11/16"
1AA6MP6 1AA6MP6C - 3/8-18 -06 2.17" 1.27" 0.26" 11/16"
1AA8MP4 - - 1/2-14 -04 2.02" 1.23" 0.17" 7/8"
1AA8MP6 - - 1/2-14 -06 2.11" 1.28" 0.26" 7/8"
1AA4MP8 - - 1/4-18 -08 2.30" 1.23" 0.30" 13/16"
1AA6MP8 - - 3/8-18 -08 2.39" 1.32" 0.38" 13/16"
1AA8MP8 1AA8MP8C - 1/2-14 -08 2.80" 1.60" 0.38" 7/8"
1AA12MP8 - - 3/4-14 -08 2.46" 1.39" 0.38" 1-1/16"
1AA6MP10 - - 3/8-18 -10 2.49" 1.33" 0.42" 15/16"
1AA8MP10 - - 1/2-14 -10 2.61" 1.58" 0.50" 15/16"
1AA12MP10 - - 3/4-14 -10 2.43" 1.40" 0.50" 1-1/16"
1AA8MP12 - - 1/2-14 -12 2.78" 1.60" 0.56" 1-1/8"
1AA12MP12 1AA12MP12C - 3/4-14 -12 2.84" 1.65" 0.61" 1-1/8"
1AA12MP16 - - 3/4-14 -16 3.02" 1.67" 0.76" 1-3/8"
1AA16MP12 - - 1-11-1/2 -12 2.80" 1.61" 0.61" 1-3/8"
1AA16MP16 1AA16MP16C - 1-11-1/2 -16 3.22" 1.86" 0.82" 1-3/8"
1AA20MP16 - - 1-1/4 - 11-1/2 -16 3.08" 1.72" 0.82" 1-11/16"
1AA16MP20 - - 1-11 1/2 -20 3.66" 1.93" 0.95" 1-3/4"
1AA20MP20 - - 1-1/4 - 11-1/2 -20 3.52" 1.79" 1.05" 1-13/16"
1AA24MP24 - - 1-1/2 - 11-1/2 -24 4.18" 2.36" 1.26" 2"
1AA32MP32 - - 2-11-1/2 -32 4.59" 2.61" 1.75" 2-1/2"
