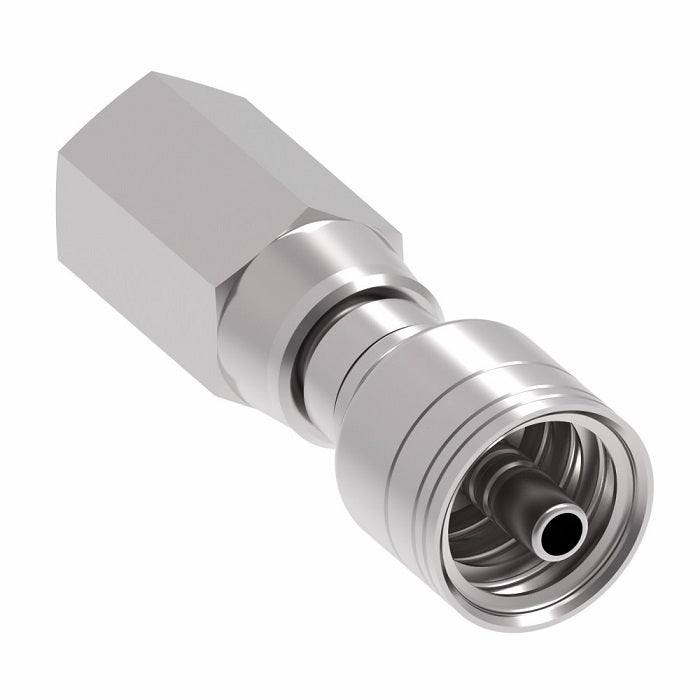

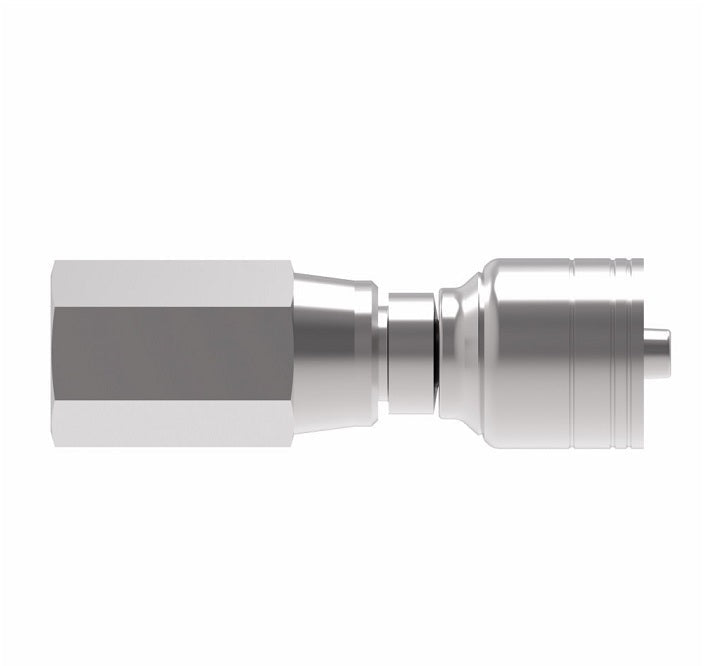

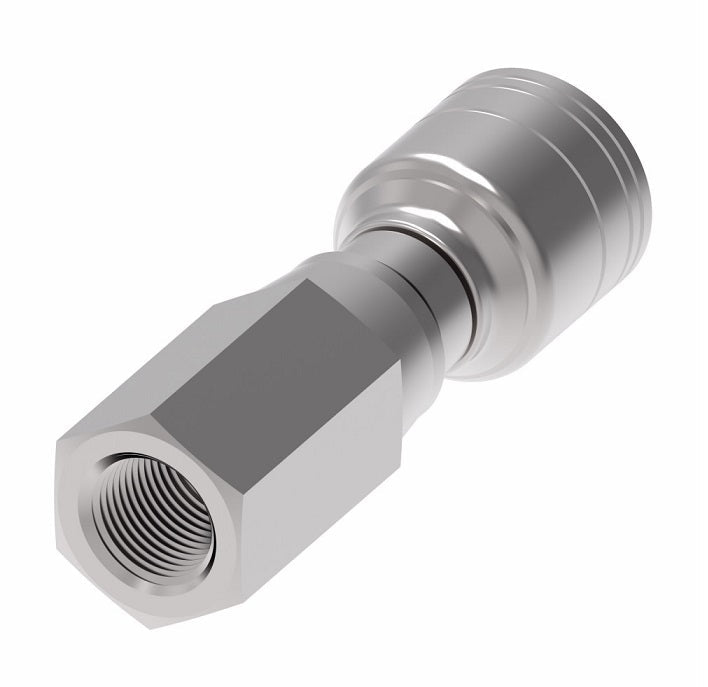

1AA4PF4 Aeroquip by Danfoss | 1 & 2 Wire TTC Female Pipe Swivel Crimp Fitting (PF) | -04 Female Pipe Swivel x -04 Hose Barb | Steel
1AA4PF4 Aeroquip by Danfoss | 1 & 2 Wire TTC Female Pipe Swivel Crimp Fitting (PF) | -04 Female Pipe Swivel x -04 Hose Barb | Steel
1AA4PF4 Aeroquip by Danfoss | 1 & 2 Wire TTC Female Pipe Swivel Crimp Fitting (PF) | -04 Female Pipe Swivel x -04 Hose Barb | Steel
1AA4PF4 Aeroquip by Danfoss | 1 & 2 Wire TTC Female Pipe Swivel Crimp Fitting (PF) | -04 Female Pipe Swivel x -04 Hose Barb | Steel

1AA4PF4 Aeroquip by Danfoss | 1 & 2 Wire TTC Female Pipe Swivel Crimp Fitting (PF) | -04 Female Pipe Swivel x -04 Hose Barb | Steel

$38.14 - $38.14
$38.14
$38.14 - $38.14
$38.14

Aeroquip® by Danfoss
1 & 2 Wire TTC Female Pipe Swivel Crimp Fitting (PF) - Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 1AA4PF4 Danfoss
Brand: Aeroquip, MatchMate
Series: 1AA MatchMate Series
Shape (Orientation): Straight
Ends Configuration: 1/4in Female NPT, 1/4in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: 2661 Series  |   FC310 Series  |   FC510 Series  |   FC579 Series  |   FC611 Series  |   FC619 Series  |   FC639 Series  |   FC839B Series  |   FC693 Series  |   FC735 Series  |   FC849 Series  |   FC849B Series  |   GH120 Series  |   GH194 Series  |   GH195 Series  |   GH663 Series  |   GH681 Series  |   GH781 Series  |   GH793 Series
Technical Info:
Steel
Part Number 		Thread Hose Size A D E&Oslash Hex 2
1AA4PF4 1/4-18 -04 2.87" 1.95" 0.17" 3/4"
1AA6PF6 3/8-18 -06 2.97" 1.97" 0.26" 7/8"
1AA8PF8 1/2-14 -08 3.58" 2.41" 0.38" 1-1/16"
1AA12PF12 3/4-14 -12 3.63" 2.44" 0.61" 1-3/8"
1AA16PF16 1-11-1/2 -16 4.37" 3.05" 0.81" 1-5/8"
