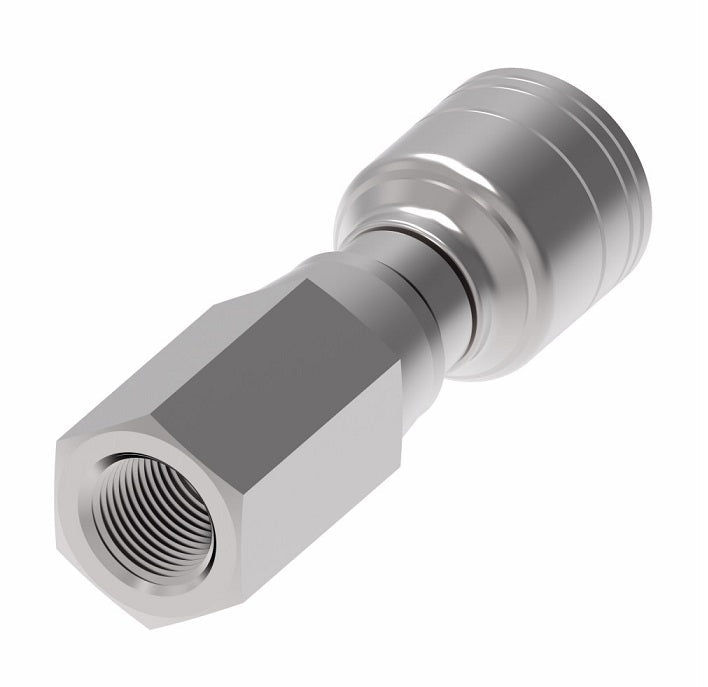

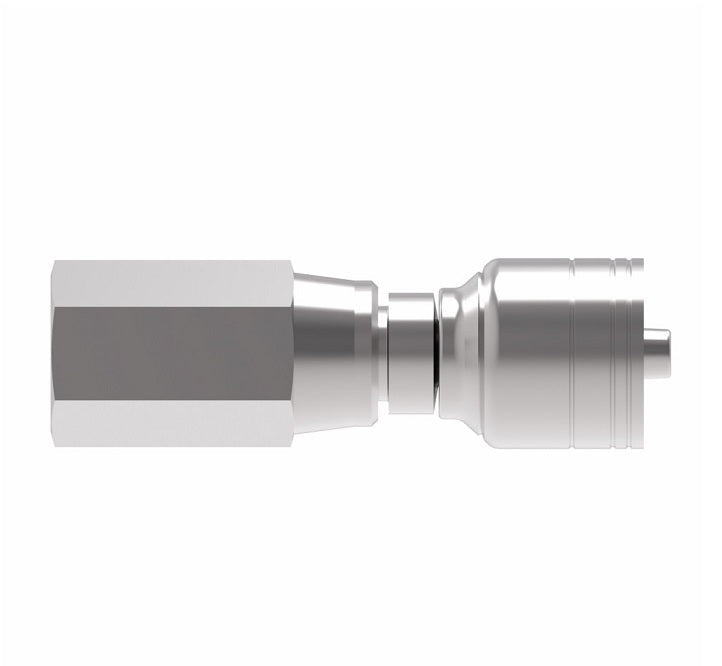

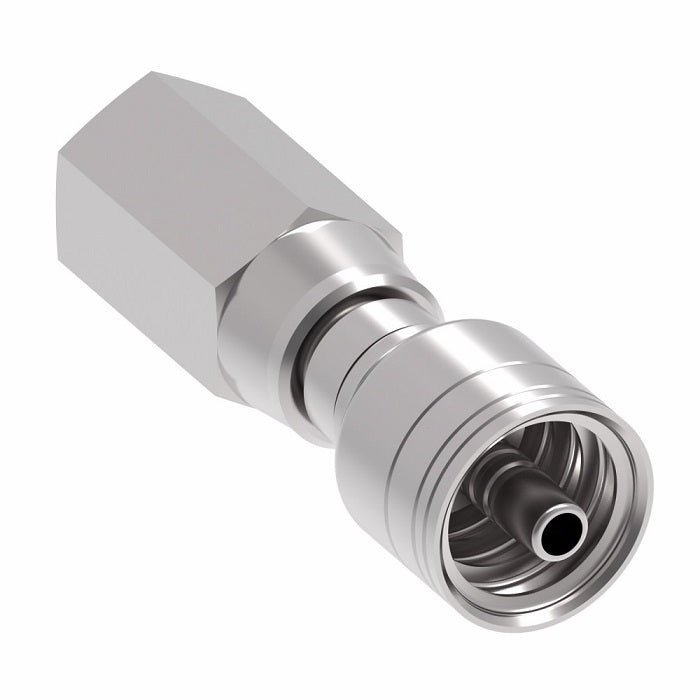

1AA8PF8 Aeroquip by Danfoss | 1 & 2 Wire TTC Female Pipe Swivel Crimp Fitting (PF) | -08 Female Pipe Swivel x -08 Hose Barb | Steel

1AA8PF8 Aeroquip by Danfoss | 1 & 2 Wire TTC Female Pipe Swivel Crimp Fitting (PF) | -08 Female Pipe Swivel x -08 Hose Barb | Steel

Name: 1AA8PF8 Aeroquip by Danfoss | 1 & 2 Wire TTC Female Pipe Swivel Crimp Fitting (PF) | -08 Female Pipe Swivel x -08 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 1AA8PF8 Danfoss
Price: 40.63 USD
Availability: InStock

$40.63 - $40.63

$40.63

$40.63 - $40.63

$40.63

Aeroquip® by Danfoss
1 & 2 Wire TTC Female Pipe Swivel Crimp Fitting (PF) - Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 1AA8PF8 Danfoss
Brand:	Aeroquip, MatchMate
Series:	1AA MatchMate Series
Shape (Orientation):	Straight
Ends Configuration:	1/2in Female NPT, 1/2in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	2661 Series \| FC310 Series \| FC510 Series \| FC579 Series \| FC611 Series \| FC619 Series \| FC639 Series \| FC839B Series \| FC693 Series \| FC735 Series \| FC849 Series \| FC849B Series \| GH120 Series \| GH194 Series \| GH195 Series \| GH663 Series \| GH681 Series \| GH781 Series \| GH793 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Thread	Hose Size	A	D	E&Oslash	Hex 2
1AA4PF4	1/4-18	-04	2.87"	1.95"	0.17"	3/4"
1AA6PF6	3/8-18	-06	2.97"	1.97"	0.26"	7/8"
1AA8PF8	1/2-14	-08	3.58"	2.41"	0.38"	1-1/16"
1AA12PF12	3/4-14	-12	3.63"	2.44"	0.61"	1-3/8"
1AA16PF16	1-11-1/2	-16	4.37"	3.05"	0.81"	1-5/8"
