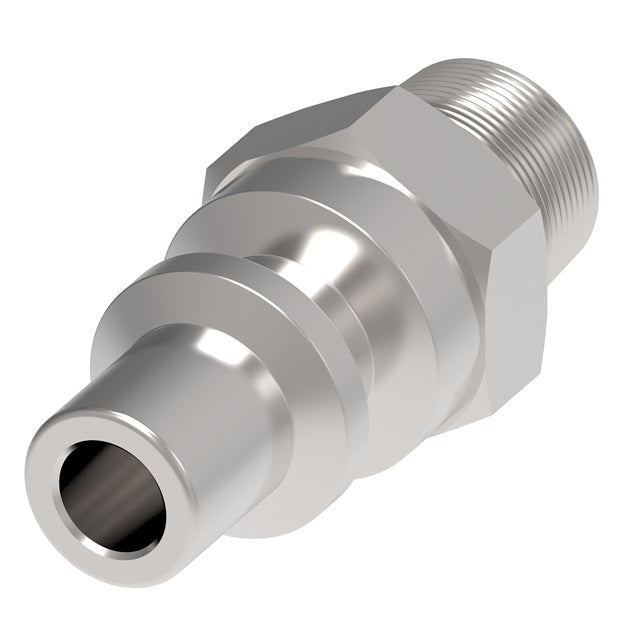

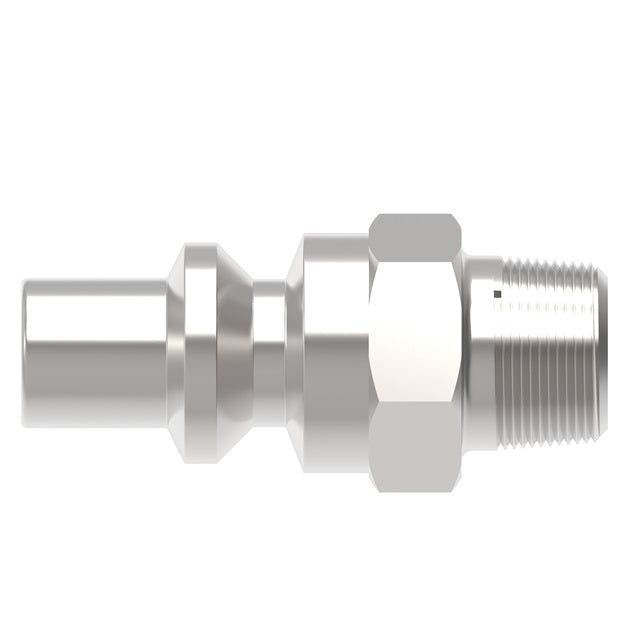

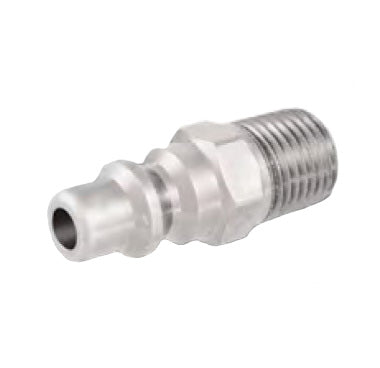

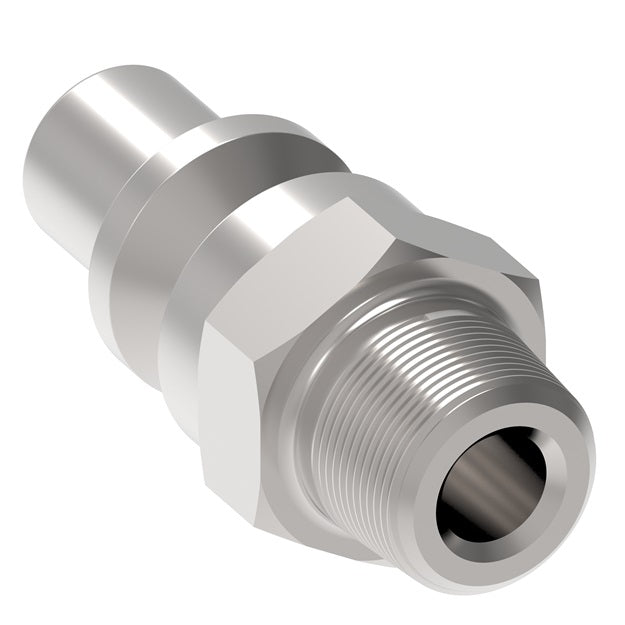

1G1 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 100 Series | 1/8" Male NPTF x 1/4" Body Size | Plug | Brass
1G1 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 100 Series | 1/8" Male NPTF x 1/4" Body Size | Plug | Brass
1G1 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 100 Series | 1/8" Male NPTF x 1/4" Body Size | Plug | Brass
1G1 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 100 Series | 1/8" Male NPTF x 1/4" Body Size | Plug | Brass
1G1 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 100 Series | 1/8" Male NPTF x 1/4" Body Size | Plug | Brass

1G1 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 100 Series | 1/8" Male NPTF x 1/4" Body Size | Plug | Brass

$15.07 - $15.07
$15.07
$15.07 - $15.07
$15.07

Hansen® by Danfoss
Pneumatic Quick Disconnect Coupling | 100 Series

Quick Disconnect for Pneumatic Applications.

Danfoss' 100 Series quick disconnect couplings are designed to prevent the crossing of lines.

These couplings are used for compressed air and gases.
Specifications for Variant SKU: 1G1 Danfoss
Brand: Hansen
Series: 100 Series
Shape (Orientation): Straight
Material(s): Brass
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • Non-interchangeable design prevents crossing of lines.
Applications & Markets:
  • General Pneumatics
  • Industrial Plants
Materials:
  • Standard body material: Brass
  • Standard seal material: Buna-N.
Series Body Size Max. Operating Pressure Min. Burst Pressure Rated Flow
100 1/4" 24 bar 350 psi 96 bar 2,800 psi 566 lpm 20 scfm
Socket/Female
(Figure 1)
Plug/Male
(Figure 2)
100 Series | Sockets
Part Number Coupling Type Body Size Port Size Thread Figure Dimensions
A B Hex
103 Socket/Female 1/4" 1/4" 1/4-18 Male NPTF 1 2.05"
(52.1mm)		 1.03"
(26.2mm)		 0.69"
(17.5mm)
105 Socket/Female 1/4" 3/8" 3/8-18 Male NPTF 1 2.01"
(51.1mm)		 1.03"
(26.2mm)		 0.69"
(17.5mm)
100 Series | Plugs
Part Number Coupling Type Body Size Port Size Thread Figure Dimensions
C D Hex
1G1 Plug/Male 1/4" 1/8" 1/8-27 Male NPTF 2 1.38"
(35.1mm)		 0.65"
(16.5mm)		 0.56"
(14.2mm)
1G3E Plug/Male 1/4" 1/4" 1/4-18 Male NPTF 2 1.56"
(39.6mm)		 0.65"
(16.5mm)		 0.56"
(14.2mm)
1G5E Plug/Male 1/4" 3/8" 3/8-18 Male NPTF 2 1.56"
(39.6mm)		 0.79"
(20.1mm)		 0.69"
(17.5mm)
