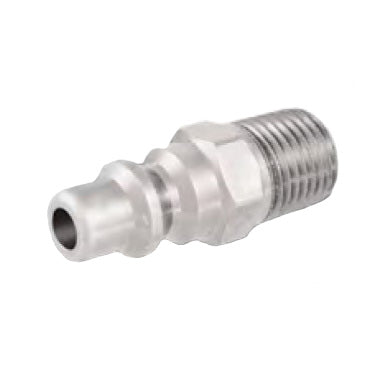

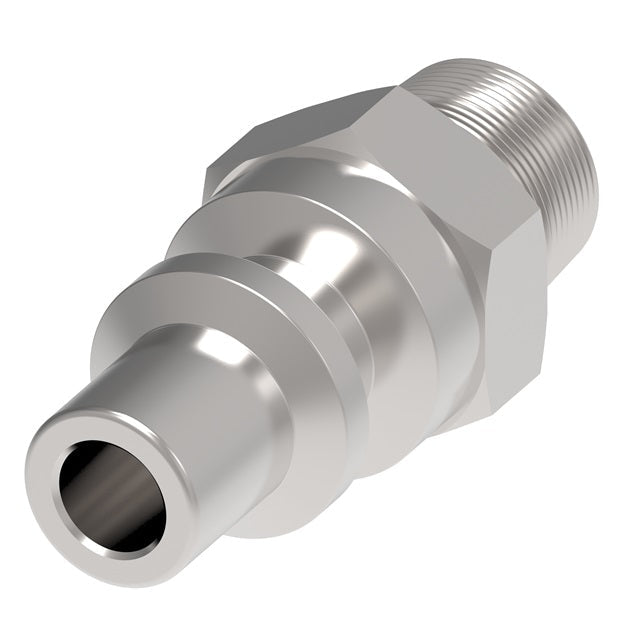

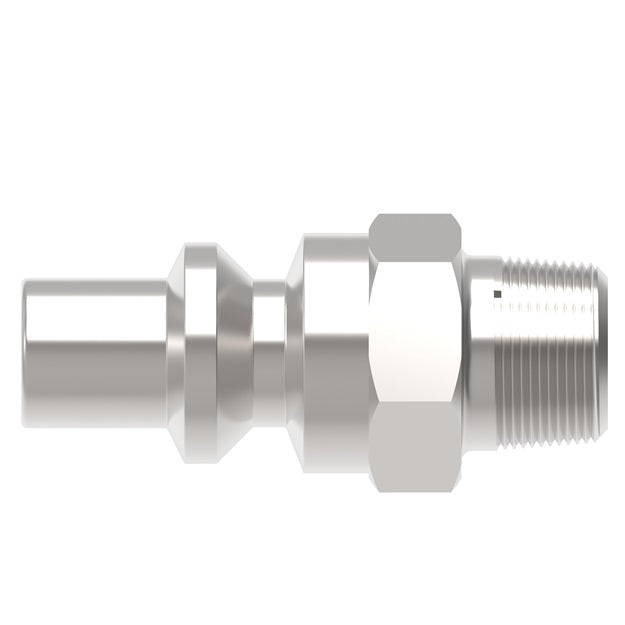

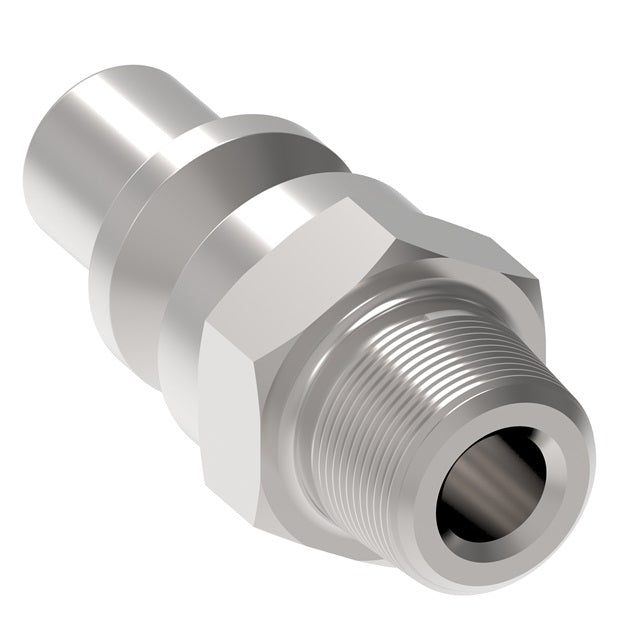

1G3E Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 100 Series | 1/4" Male NPTF x 1/4" Body Size | Plug | Brass

1G3E Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 100 Series | 1/4" Male NPTF x 1/4" Body Size | Plug | Brass

$14.16 - $14.16

$14.16

$14.16 - $14.16

$14.16

Hansen® by Danfoss
Pneumatic Quick Disconnect Coupling | 100 Series

Quick Disconnect for Pneumatic Applications.

Danfoss' 100 Series quick disconnect couplings are designed to prevent the crossing of lines.

These couplings are used for compressed air and gases.

Quantity

Specifications for Variant SKU: 1G3E Danfoss
Brand:	Hansen
Series:	100 Series
Shape (Orientation):	Straight
Material(s):	Brass
Seal Material(s):	Buna-N/Nitrile Rubber

Features:	Non-interchangeable design prevents crossing of lines.
Applications & Markets:	General Pneumatics Industrial Plants
Materials:	Standard body material: Brass Standard seal material: Buna-N.

Series	Body Size	Max. Operating Pressure		Min. Burst Pressure		Rated Flow
100	1/4"	24 bar	350 psi	96 bar	2,800 psi	566 lpm	20 scfm


Socket/Female (Figure 1)					Plug/Male (Figure 2)
100 Series \| Sockets
Part Number	Coupling Type	Body Size	Port Size	Thread	Figure	Dimensions
Part Number	Coupling Type	Body Size	Port Size	Thread	Figure	A	B	Hex
103	Socket/Female	1/4"	1/4"	1/4-18 Male NPTF	1	2.05" (52.1mm)	1.03" (26.2mm)	0.69" (17.5mm)
105	Socket/Female	1/4"	3/8"	3/8-18 Male NPTF	1	2.01" (51.1mm)	1.03" (26.2mm)	0.69" (17.5mm)
100 Series \| Plugs
Part Number	Coupling Type	Body Size	Port Size	Thread	Figure	Dimensions
Part Number	Coupling Type	Body Size	Port Size	Thread	Figure	C	D	Hex
1G1	Plug/Male	1/4"	1/8"	1/8-27 Male NPTF	2	1.38" (35.1mm)	0.65" (16.5mm)	0.56" (14.2mm)
1G3E	Plug/Male	1/4"	1/4"	1/4-18 Male NPTF	2	1.56" (39.6mm)	0.65" (16.5mm)	0.56" (14.2mm)
1G5E	Plug/Male	1/4"	3/8"	3/8-18 Male NPTF	2	1.56" (39.6mm)	0.79" (20.1mm)	0.69" (17.5mm)
