Name: 1G20FLA20 Aeroquip by Danfoss | 1 & 2 Wire OTC SAE Code 61 Split Flange 45° Elbow (FLA) Crimp Fitting | -20 Code 61 Split Flange x -20 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 1G20FLA20 Danfoss
Price: 97.98 USD
Availability: InStock

$97.98 - $97.98

$97.98

$97.98 - $97.98

$97.98

Aeroquip® by Danfoss

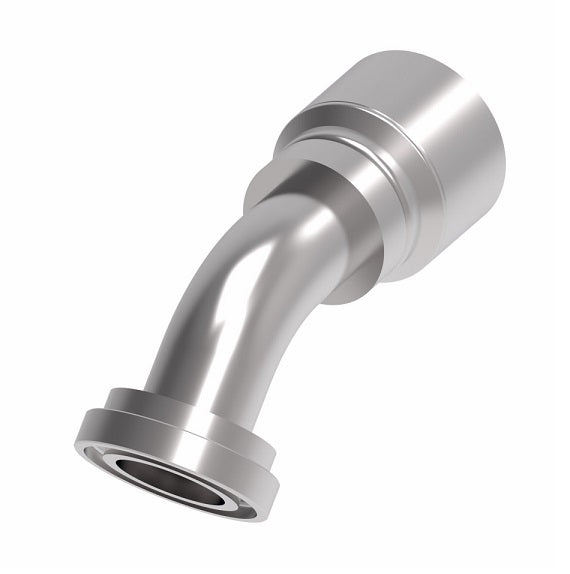

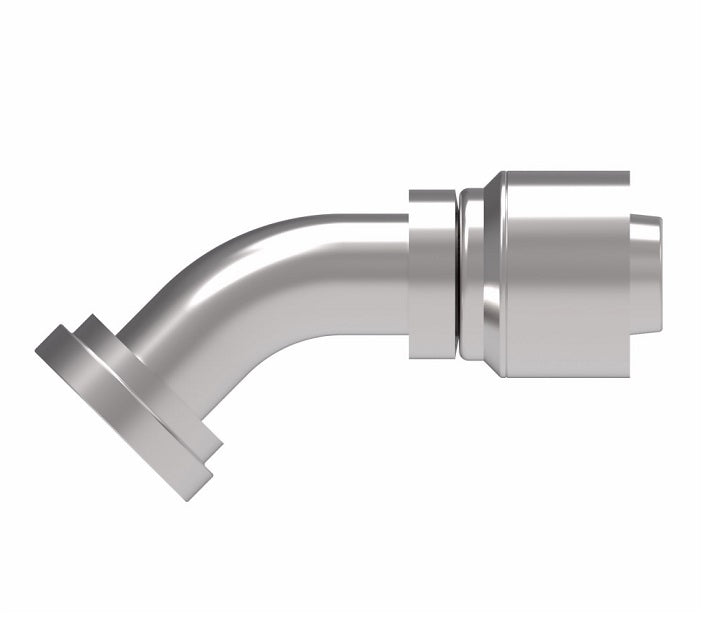

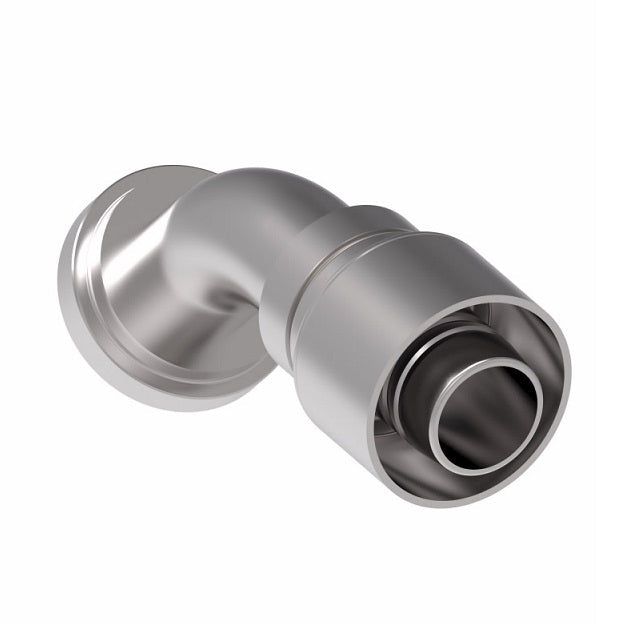

1 & 2 Wire OTC SAE Code 61 Split Flange Crimp Fitting (FLA) - 45° Elbow

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 1G20FLA20 Danfoss
Shape (Orientation):	45 Degree
Ends Configuration:	1-1/4in Code 61 Flange, 1-1/4in Hose Barb
Material(s):	Steel
Compatible with the following Series:	2583 Series \| 2661 Series \| FC466 Series \| FC498 Series \| FC598 Series \| FC619 Series \| FC699 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Thd. Flange Head Diameter K&Oslash	Hose Size	A	D	E&Oslash	H
1G20FLA20	2.00"	-20	5.28"	3.55"	1.01"	1.18"
1G20FLA24	2.00"	-24	4.54"	2.72"	1.26"	1.08"
1G24FLA24	2.37"	-24	6.07"	4.25"	1.26"	1.41"
1G24FLA32	2.37"	-32	6.27"	4.29"	1.26"	1.41"
1G32FLA32	2.81"	-32	7.49"	5.52"	1.75"	2.00"
1G40FLA32	3.31"	-32	5.27"	3.29"	1.75"	1.30"
