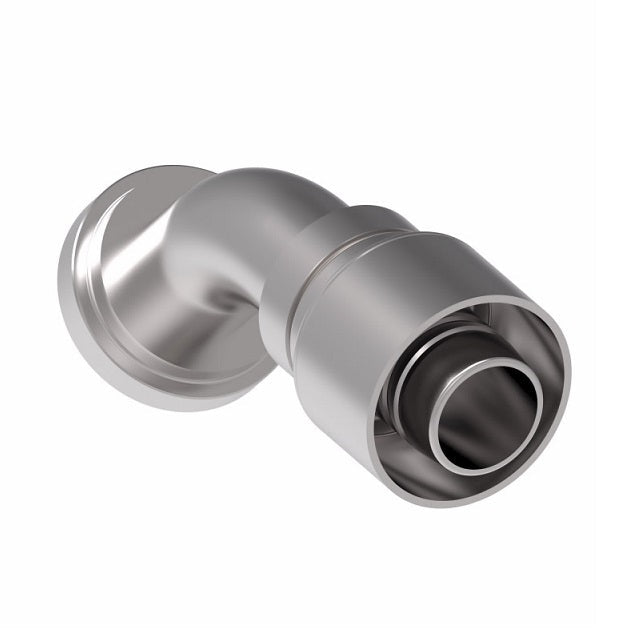

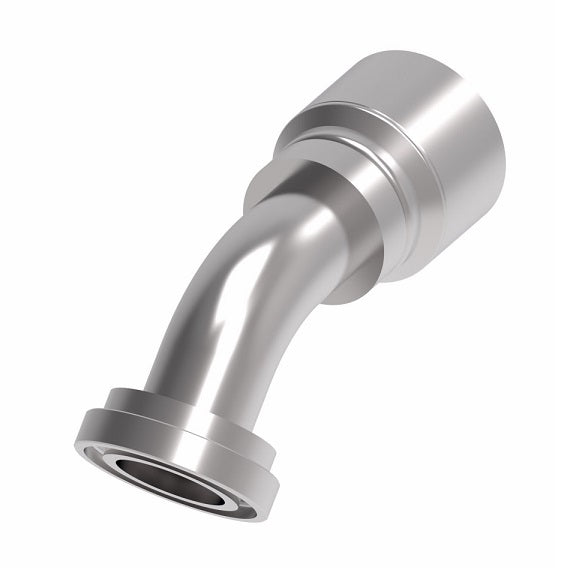

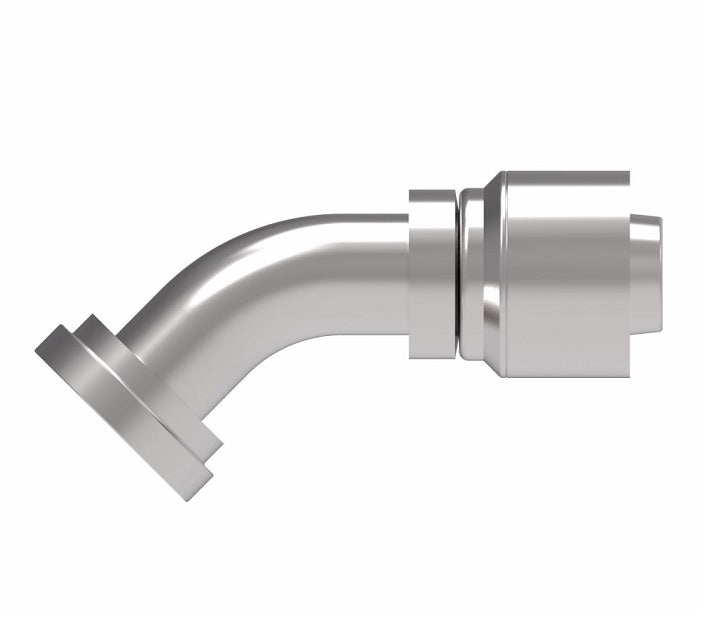

Name: 1G40FLA32 Aeroquip by Danfoss | 1 & 2 Wire OTC SAE Code 61 Split Flange 45° Elbow (FLA) Crimp Fitting | -40 Code 61 Split Flange x -32 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 1G40FLA32 Danfoss
Price: 286.1 USD
Availability: InStock

$286.10 - $286.10

$286.10

$286.10 - $286.10

$286.10

Aeroquip® by Danfoss
1 & 2 Wire OTC SAE Code 61 Split Flange Crimp Fitting (FLA) - 45° Elbow

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 1G40FLA32 Danfoss
Shape (Orientation):	45 Degree
Ends Configuration:	2-1/2in Code 61 Flange, 2in Hose Barb
Material(s):	Steel
Compatible with the following Series:	2583 Series \| 2661 Series \| FC466 Series \| FC498 Series \| FC598 Series \| FC619 Series \| FC699 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Thd. Flange Head Diameter K&Oslash	Hose Size	A	D	E&Oslash	H
1G20FLA20	2.00"	-20	5.28"	3.55"	1.01"	1.18"
1G20FLA24	2.00"	-24	4.54"	2.72"	1.26"	1.08"
1G24FLA24	2.37"	-24	6.07"	4.25"	1.26"	1.41"
1G24FLA32	2.37"	-32	6.27"	4.29"	1.26"	1.41"
1G32FLA32	2.81"	-32	7.49"	5.52"	1.75"	2.00"
1G40FLA32	3.31"	-32	5.27"	3.29"	1.75"	1.30"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
