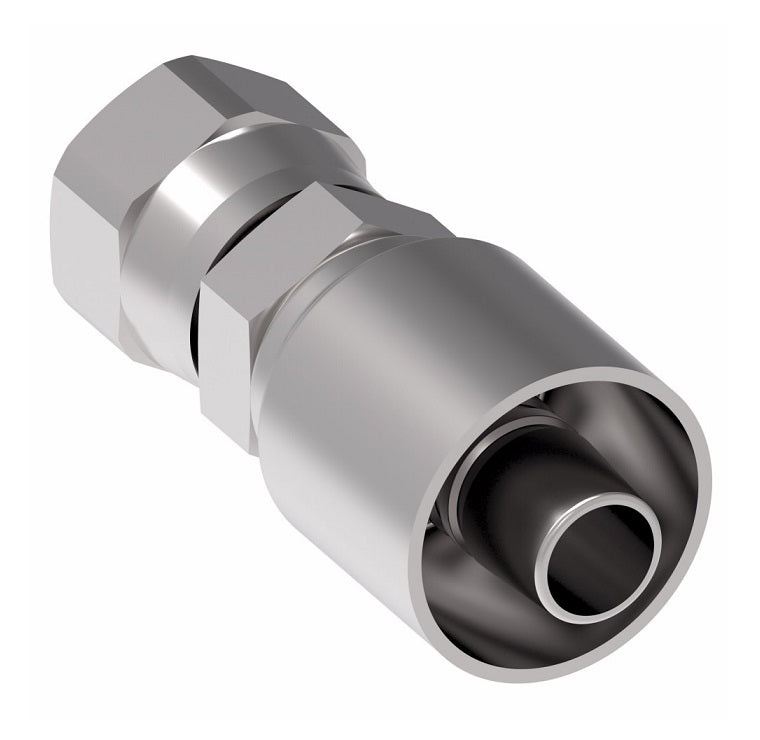

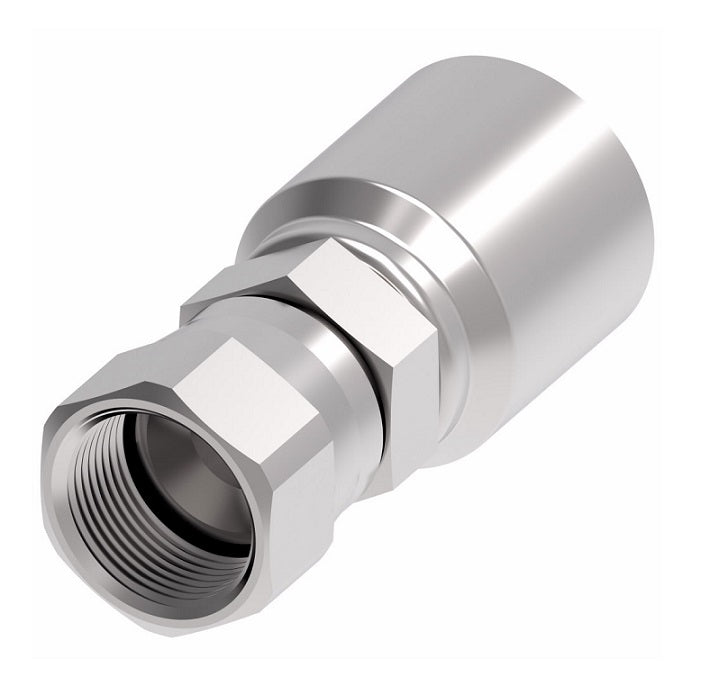

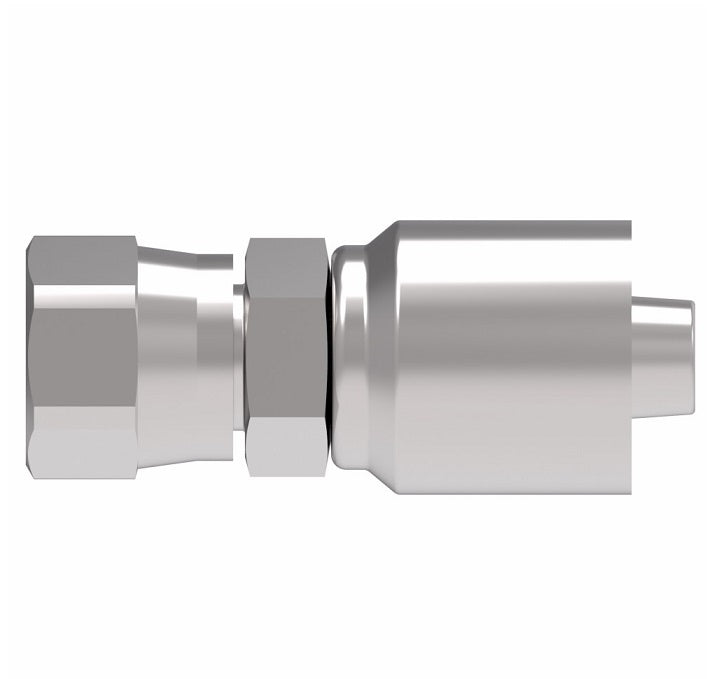

1GA10FJ12 Aeroquip by Danfoss | 1 & 2 Wire OTC Female JIC 37° Swivel (FJ) Crimp Fitting | -10 Female JIC 37° Swivel x -12 Hose Barb | Steel

1GA10FJ12 Aeroquip by Danfoss | 1 & 2 Wire OTC Female JIC 37° Swivel (FJ) Crimp Fitting | -10 Female JIC 37° Swivel x -12 Hose Barb | Steel | Pack of 10

$416.37 - $416.37

$416.37

$416.37 - $416.37

$416.37

Aeroquip® by Danfoss
1 & 2 Wire Global OTC Female JIC 37° Swivel Crimp Fitting (FJ) - Straight

(Formerly Eaton Aeroquip)

Package Quantity: 10 Units

Specifications for Variant SKU: 1GA10FJ12 Danfoss \| 10 \|
Shape (Orientation):	Straight
Ends Configuration:	5/8in Female JIC, 3/4in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	2583 Series \| 2661 Series \| FC466 Series \| FC498 Series \| FC598 Series \| FC619 Series \| FC699 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Thread	Hose Size	A	D	EØ	Hex 1	Hex 2
1GA4FJ4	7/16-20	-04	2.00"	1.05"	0.17"	9/16"	9/16"
1GA5FJ4	1/2-20	-04	1.98"	1.14"	0.17"	5/8"	9/16"
1GA6FJ4	9/16-18	-04	2.03"	1.11"	0.17"	1-1/16"	9/16"
1GA5FJ6	1/2-20	-06	2.24"	1.24"	0.23"	5/8"	11/16"
1GA6FJ6	9/16-18	-06	2.28"	1.28"	0.26"	1-1/16"	11/16"
1GA8FJ6	3/4-16	-06	2.31"	1.31"	0.26"	7/8"	11/16"
1GA8FJ8	3/4-16	-08	2.63"	1.46"	0.38"	7/8"	13/16"
1GA10FJ8	7/8-14	-08	2.64"	1.47"	0.38"	1"	7/8"
1GA12FJ8	1-1/16-12	-08	2.73"	1.56"	0.38"	1-1/4"	1"
1GA10FJ10	7/8-14	-10	2.77"	1.62"	0.50"	1"	15/16"
1GA12FJ10	1-1/16-12	-10	2.72"	1.57"	0.50"	1-1/4"	1"
1GA10FJ12	7/8-14	-12	2.81"	1.63"	0.48"	1"	1-1/8"
1GA12FJ12	1-1/16-12	-12	2.84"	1.65"	0.61"	1-1/4"	1-1/8"
1GA16FJ12	1-5/16-12	-12	2.91"	1.72"	0.61"	1-1/2"	1-1/4"
1GA16FJ16	1-5/16-12	-16	3.29"	1.93"	0.81"	1-1/2"	1-3/8"
1GA20FJ16	1-5/8-12	-16	3.17"	1.81"	0.81"	2"	-
1GA16FJ20	1-5/16-12	-20	3.46"	1.73"	0.85"	1-1/2"	-
1AA20FJ20	1-5/8-12	-20	3.61"	1.88"	1.05"	2"	-
1AA24FJ24	1-7/8-12	-24	3.90"	2.07"	1.26"	2-1/4"	-
1AA32FJ32	2-1/2-12	-32	4.34"	2.39"	1.75"	2-7/8"	-
