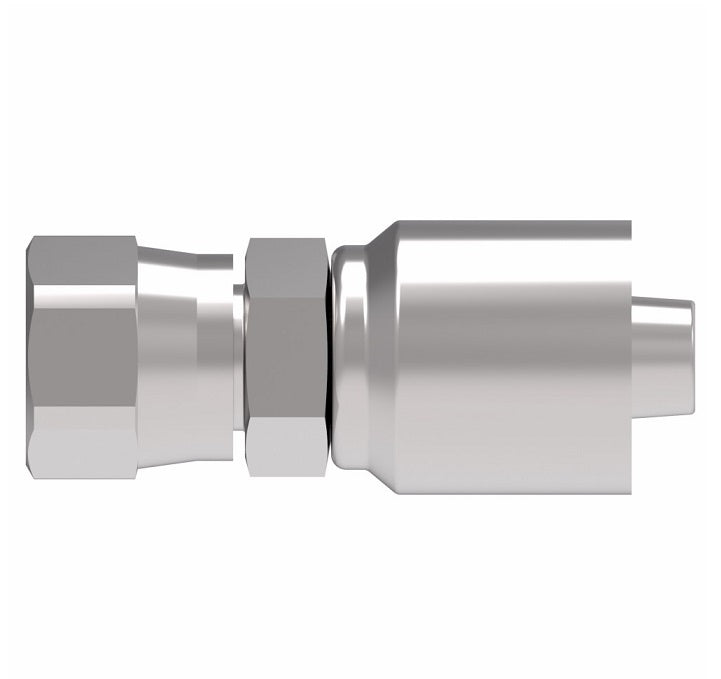

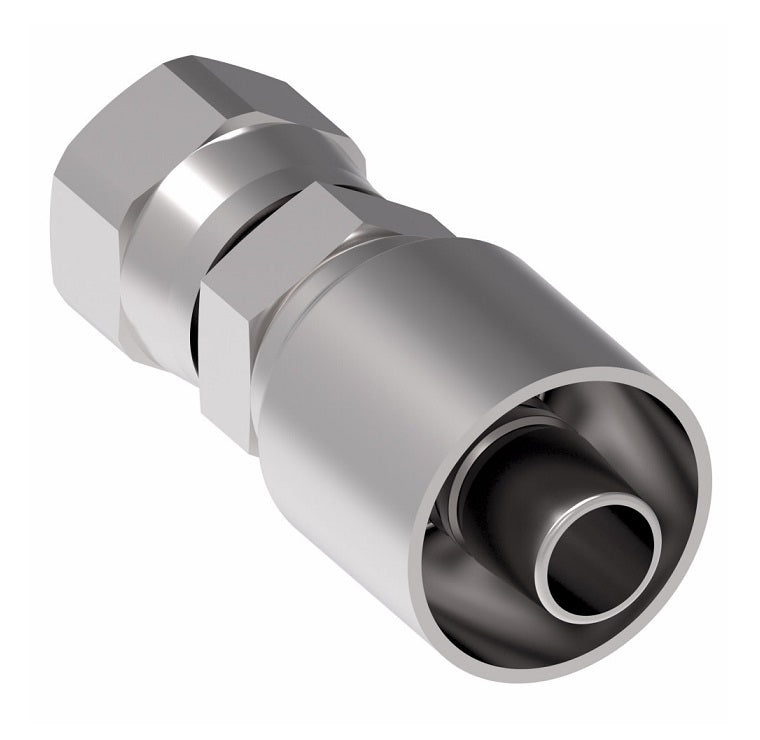

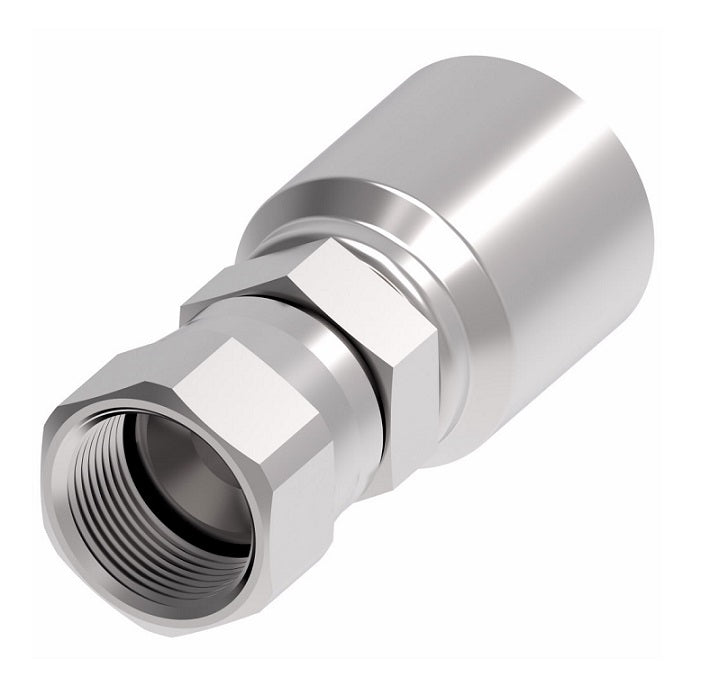

1GA5FJ4 Aeroquip by Danfoss | 1 & 2 Wire OTC Female JIC 37° Swivel (FJ) Crimp Fitting | -05 Female JIC 37° Swivel x -04 Hose Barb | Steel

1GA5FJ4 Aeroquip by Danfoss | 1 & 2 Wire OTC Female JIC 37° Swivel (FJ) Crimp Fitting | -05 Female JIC 37° Swivel x -04 Hose Barb | Steel | Pack of 10

Minimum Order Quantity: 10 Units

$186.40 - $186.40

$186.40

$186.40 - $186.40

$186.40

Aeroquip® by Danfoss
1 & 2 Wire Global OTC Female JIC 37° Swivel Crimp Fitting (FJ) - Straight

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 1GA5FJ4 Danfoss \| 10 \|
Shape (Orientation):	Straight
Ends Configuration:	5/16in Female JIC, 1/4in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	2583 Series \| 2661 Series \| FC466 Series \| FC498 Series \| FC598 Series \| FC619 Series \| FC699 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Thread	Hose Size	A	D	EØ	Hex 1	Hex 2
1GA4FJ4	7/16-20	-04	2.00"	1.05"	0.17"	9/16"	9/16"
1GA5FJ4	1/2-20	-04	1.98"	1.14"	0.17"	5/8"	9/16"
1GA6FJ4	9/16-18	-04	2.03"	1.11"	0.17"	1-1/16"	9/16"
1GA5FJ6	1/2-20	-06	2.24"	1.24"	0.23"	5/8"	11/16"
1GA6FJ6	9/16-18	-06	2.28"	1.28"	0.26"	1-1/16"	11/16"
1GA8FJ6	3/4-16	-06	2.31"	1.31"	0.26"	7/8"	11/16"
1GA8FJ8	3/4-16	-08	2.63"	1.46"	0.38"	7/8"	13/16"
1GA10FJ8	7/8-14	-08	2.64"	1.47"	0.38"	1"	7/8"
1GA12FJ8	1-1/16-12	-08	2.73"	1.56"	0.38"	1-1/4"	1"
1GA10FJ10	7/8-14	-10	2.77"	1.62"	0.50"	1"	15/16"
1GA12FJ10	1-1/16-12	-10	2.72"	1.57"	0.50"	1-1/4"	1"
1GA10FJ12	7/8-14	-12	2.81"	1.63"	0.48"	1"	1-1/8"
1GA12FJ12	1-1/16-12	-12	2.84"	1.65"	0.61"	1-1/4"	1-1/8"
1GA16FJ12	1-5/16-12	-12	2.91"	1.72"	0.61"	1-1/2"	1-1/4"
1GA16FJ16	1-5/16-12	-16	3.29"	1.93"	0.81"	1-1/2"	1-3/8"
1GA20FJ16	1-5/8-12	-16	3.17"	1.81"	0.81"	2"	-
1GA16FJ20	1-5/16-12	-20	3.46"	1.73"	0.85"	1-1/2"	-
1AA20FJ20	1-5/8-12	-20	3.61"	1.88"	1.05"	2"	-
1AA24FJ24	1-7/8-12	-24	3.90"	2.07"	1.26"	2-1/4"	-
1AA32FJ32	2-1/2-12	-32	4.34"	2.39"	1.75"	2-7/8"	-

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
