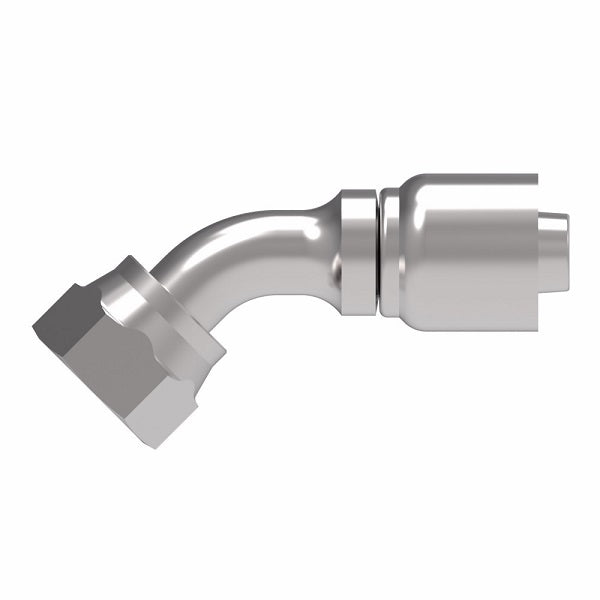

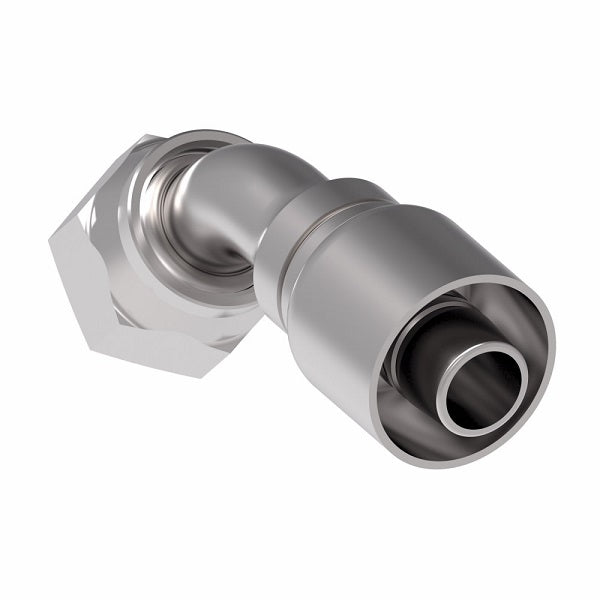

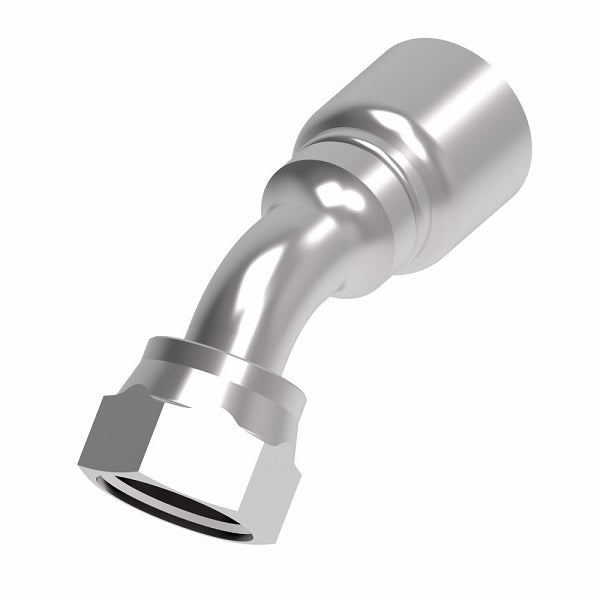

1GA10FRA10 Aeroquip by Danfoss | 1 & 2 Wire OTC Female ORS Swivel 45° Elbow (FRA) Crimp Fitting | -10 Female O-Ring Face Seal Swivel  x -10 Hose Barb | Steel
1GA10FRA10 Aeroquip by Danfoss | 1 & 2 Wire OTC Female ORS Swivel 45° Elbow (FRA) Crimp Fitting | -10 Female O-Ring Face Seal Swivel  x -10 Hose Barb | Steel
1GA10FRA10 Aeroquip by Danfoss | 1 & 2 Wire OTC Female ORS Swivel 45° Elbow (FRA) Crimp Fitting | -10 Female O-Ring Face Seal Swivel  x -10 Hose Barb | Steel
1GA10FRA10 Aeroquip by Danfoss | 1 & 2 Wire OTC Female ORS Swivel 45° Elbow (FRA) Crimp Fitting | -10 Female O-Ring Face Seal Swivel  x -10 Hose Barb | Steel

1GA10FRA10 Aeroquip by Danfoss | 1 & 2 Wire OTC Female ORS Swivel 45° Elbow (FRA) Crimp Fitting | -10 Female O-Ring Face Seal Swivel  x -10 Hose Barb | Steel

$37.54 - $37.54
$37.54
$37.54 - $37.54
$37.54

Aeroquip® by Danfoss
1 & 2 Wire OTC Female O-Ring Face Seal (ORS) Swivel Crimp Fitting (FRA) - 45° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 1GA10FRA10 Danfoss
Shape (Orientation): 45 Degree
Ends Configuration: 5/8in Female O-Ring Face Seal, 5/8in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: 2583 Series  |   2661 Series  |   FC466 Series  |   FC498 Series  |   FC598 Series  |   FC619 Series  |   FC699 Series
Technical Info:
Steel
Part Number 		Thread Hose Size A D EØ H Hex 1
1GA6FRA6 11/16-16 -06 2.36" 1.43" 0.24" 0.43" 13/16"
1GA8FRA8 13/16-16 -08 3.00" 1.79" 0.33" 0.59" 15/16"
1GA10FRA8 1-14 -08 3.08" 2.01" 0.38" 0.65" 1-1/8"
1GA10FRA10 1-14 -10 3.18" 2.02" 0.44" 0.65" 1-1/8"
1GA12FRA12 1-3/16-12 -12 3.57" 2.38" 0.55" 0.83" 1-3/8"
1GA16FRA12 1-7/16-12 -12 4.04" 2.85" 0.61" 0.94" 1-5/8"
1GA16FRA16 1-7/16-12 -16 4.23" 2.88" 0.81" 0.94" 1-5/8"
1GA20FRA20 1-11/16-12 -20 5.10" 3.37" 1.02" 1.00" 1-7/8"
1GA20FRA24 1-11/16-12 -24 - - - - -
1GA24FRA24 2-12 -24 4.54" 2.71" 1.26" 1.07" 2-1/4"
