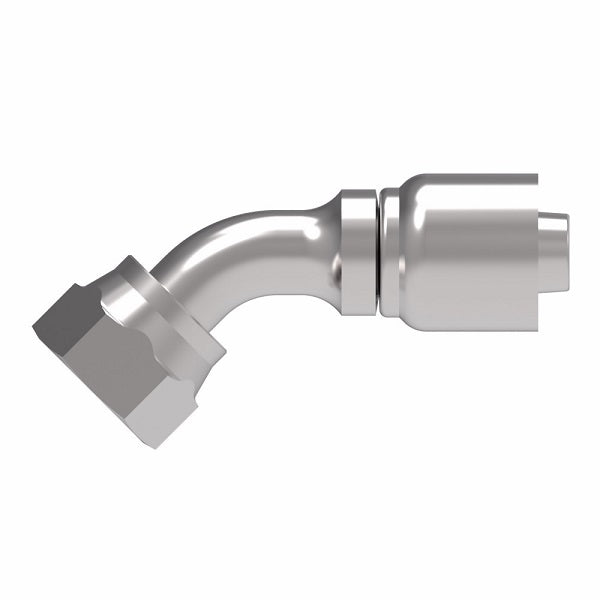

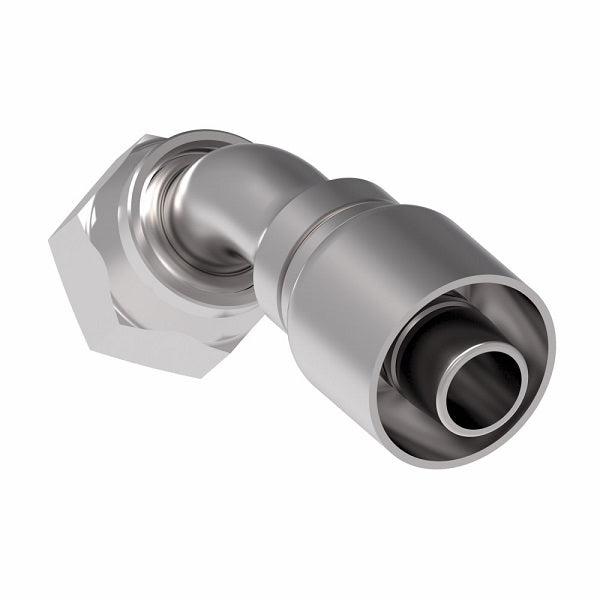

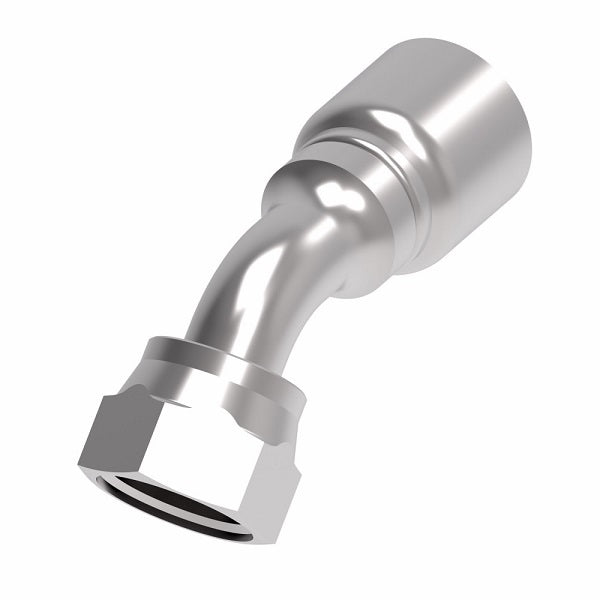

1GA24FRA24 Aeroquip by Danfoss | 1 & 2 Wire OTC Female ORS Swivel 45° Elbow (FRA) Crimp Fitting | -24 Female O-Ring Face Seal Swivel  x -24 Hose Barb | Steel
1GA24FRA24 Aeroquip by Danfoss | 1 & 2 Wire OTC Female ORS Swivel 45° Elbow (FRA) Crimp Fitting | -24 Female O-Ring Face Seal Swivel  x -24 Hose Barb | Steel
1GA24FRA24 Aeroquip by Danfoss | 1 & 2 Wire OTC Female ORS Swivel 45° Elbow (FRA) Crimp Fitting | -24 Female O-Ring Face Seal Swivel  x -24 Hose Barb | Steel
1GA24FRA24 Aeroquip by Danfoss | 1 & 2 Wire OTC Female ORS Swivel 45° Elbow (FRA) Crimp Fitting | -24 Female O-Ring Face Seal Swivel  x -24 Hose Barb | Steel

1GA24FRA24 Aeroquip by Danfoss | 1 & 2 Wire OTC Female ORS Swivel 45° Elbow (FRA) Crimp Fitting | -24 Female O-Ring Face Seal Swivel  x -24 Hose Barb | Steel

$237.26 - $237.26
$237.26
$237.26 - $237.26
$237.26

Aeroquip® by Danfoss
1 & 2 Wire OTC Female O-Ring Face Seal (ORS) Swivel Crimp Fitting (FRA) - 45° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 1GA24FRA24 Danfoss
Shape (Orientation): 45 Degree
Ends Configuration: 1-1/2in Female O-Ring Face Seal, 1-1/2in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: 2583 Series  |   2661 Series  |   FC466 Series  |   FC498 Series  |   FC598 Series  |   FC619 Series  |   FC699 Series
Technical Info:
Steel
Part Number 		Thread Hose Size A D EØ H Hex 1
1GA6FRA6 11/16-16 -06 2.36" 1.43" 0.24" 0.43" 13/16"
1GA8FRA8 13/16-16 -08 3.00" 1.79" 0.33" 0.59" 15/16"
1GA10FRA8 1-14 -08 3.08" 2.01" 0.38" 0.65" 1-1/8"
1GA10FRA10 1-14 -10 3.18" 2.02" 0.44" 0.65" 1-1/8"
1GA12FRA12 1-3/16-12 -12 3.57" 2.38" 0.55" 0.83" 1-3/8"
1GA16FRA12 1-7/16-12 -12 4.04" 2.85" 0.61" 0.94" 1-5/8"
1GA16FRA16 1-7/16-12 -16 4.23" 2.88" 0.81" 0.94" 1-5/8"
1GA20FRA20 1-11/16-12 -20 5.10" 3.37" 1.02" 1.00" 1-7/8"
1GA20FRA24 1-11/16-12 -24 - - - - -
1GA24FRA24 2-12 -24 4.54" 2.71" 1.26" 1.07" 2-1/4"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
