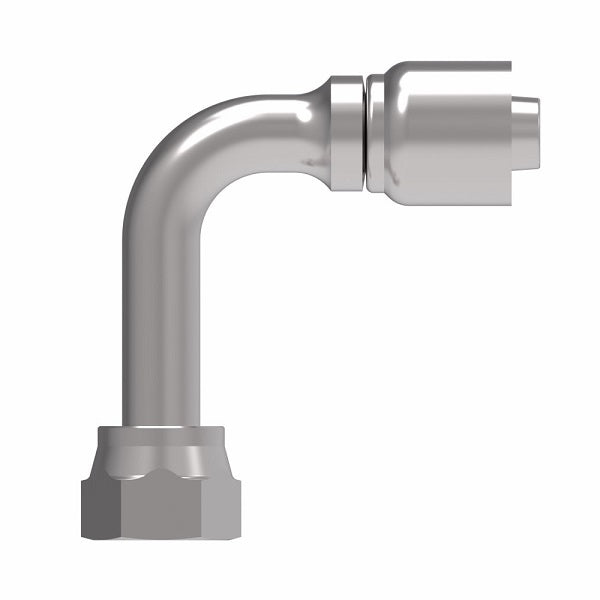

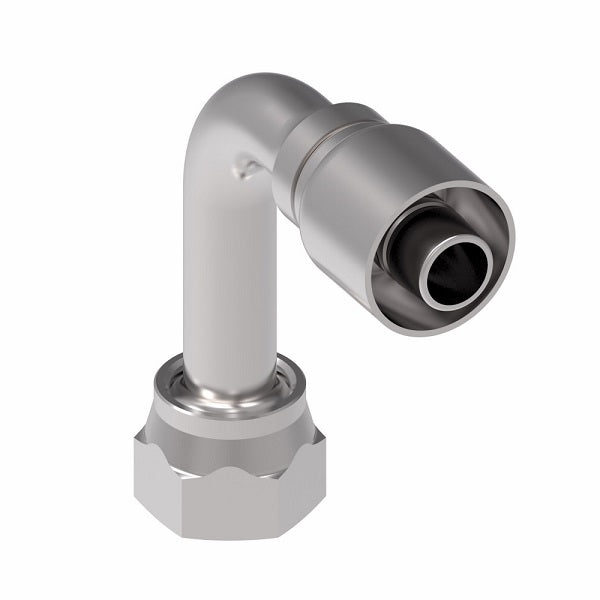

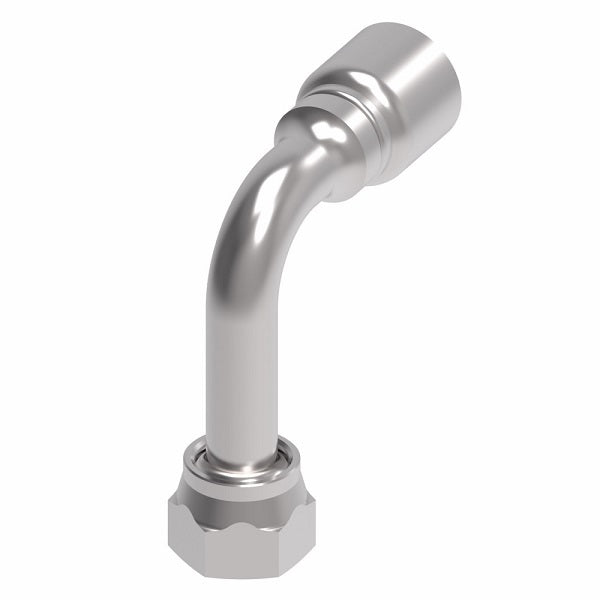

1GA10FRC10 Aeroquip by Danfoss | 1 & 2 Wire OTC Female ORS Swivel 90° Long Drop Elbow (FRC) Crimp Fitting | -10 Female O-Ring Face Seal Swivel x -10 Hose Barb | Steel

1GA10FRC10 Aeroquip by Danfoss | 1 & 2 Wire OTC Female ORS Swivel 90° Long Drop Elbow (FRC) Crimp Fitting | -10 Female O-Ring Face Seal Swivel x -10 Hose Barb | Steel | Pack of 10

$398.01 - $398.01

$398.01

$398.01 - $398.01

$398.01

Aeroquip® by Danfoss
1 & 2 Wire OTC Female ORS Swivel Long Drop Crimp Fitting (FRC) - 90° Elbow

(Formerly Eaton Aeroquip)

Package Quantity: 10 Units

Specifications for Variant SKU: 1GA10FRC10 Danfoss \| 10 \|
Shape (Orientation):	90 Degree
Ends Configuration:	5/8in Female O-Ring Face Seal, 5/8in Hose Barb
Material(s):	Steel
Special Properties:	Swivel, Long Drop
Compatible with the following Series:	2583 Series \| 2661 Series \| FC466 Series \| FC498 Series \| FC598 Series \| FC619 Series \| FC699 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Thread	Hose Size	A	D	E&Oslash	H	Hex 1
1GA8FRC8	13/16-16	-08	2.87"	1.67"	0.33"	2.51"	15/16"
1GA10FRC10	1-14	-10	3.08"	1.91"	0.44"	2.76"	1-1/8"
1GA12FRC12	1-3/16-12	-12	3.48"	2.30"	0.56"	3.78"	1-3/8"
1GA16FRC16	1-7/16-12	-16	4.22"	2.86"	0.78"	4.50"	1-5/8"
1GA20FRC20	1-11/16-12	-20	5.30"	3.57"	1.01"	5.09"	1-7/8"
1GA24FRC24	2-12	-24	4.63"	2.81"	1.26"	5.54"	2-1/4"
